4 Lan ports X86 Atom D525 embedded DC power cheap industrial network security firewall motherboard

FOB Price

US$ 1 - 90 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Products Status	Stock	Type	Embedded Industrial Motherboard
Brand Name	hcsmart	Model Number	HC-D5254L
Place of Origin	Guangdong, China

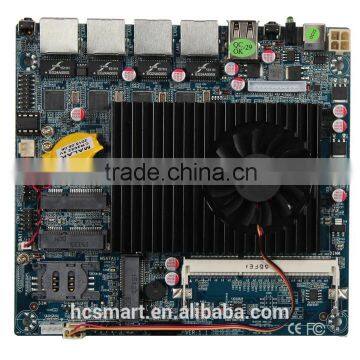

4 Lan Intel atom D525 network security firewall motherboard

Product Description

Processor	CPU	Intel Atom D525
	Frequency	Dual core 1.8Ghz
	Chipset	ICH8M
	TDP
Memory	Slot	1*SO-DIMM,DDR3 800 MHz Memory
Memory	capacity	MAX to 4GB
Storage	connector	1*SATA2.0
		1*MSATA
		1MINI PCIE (For WIFI) 1SIM 1*CF
Display	chipset	CPU integrated HD Graphics
Display	output	VGA header
LAN	chipset	4*Intel 82583 1000M
LAN	connector	4*RJ45
Audio	chipset
Audio	connector
I/O	com	1*COM header
	Lpt
	USB	2USB2.0,1USB2.0 header (can expand to 2*USB2.0)
	GPIO
	Header	1PWR 1Reset 1LED 1USB 2.0 header 1JP1 1F-panel 112PIN VGA 1Sata-PWR 14pin DC 1CLR-CMOS jumper 1AUTO-ON jumper 2SYS-FAN
Power	power supply	1DC IN 12V/5A 14PIN ATX
OS	Version	Win7/Win8/Linux
BIOS		AMI BIOS
working environment	working temp	-10~60℃
	storage temp	-10~70℃
	relative humidity	5%-95% non-condensing
Form factor	size	150*140mm

Packaging & Shipping

Carton box packaging, shipped by door to door express (Fedex, Dhl,Ups,Tnt etc,) or air

Our Services

We can give you 1 year warranty and 1% RMA,

To assure the quality, we usually do full test befor shippment to avoid the quality issue

24*7 hotline for inquiry, if you have any questions about our products, you can contact us any time.
