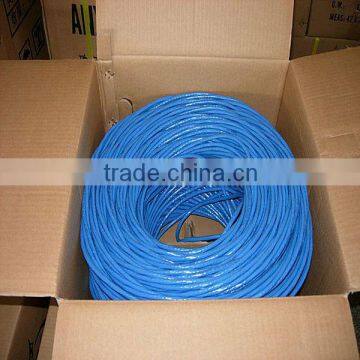

Blue UTP Cat.6 4pairs Bare Copper Ethernet Cable Cat6 Lan Cable

cat6 power cable

Specifications

1.Cat6 lan cable/network cable

2.ISO/IEC 11801,ANSI/TIA/EIA-568B/C

3.UL,ISO9001,Rohs, CE

4.Competitive price

Product Description

1.Reference standard: UL,ISO9001:2000,CE

2. Bare solid copper BC conductor

3. RoHS complied PVC, PE or LSZH jacket

4. Complies to TIA/EIA-568B&ISO/IEC 11801

Application

Ethernet, 10 Base-T, 100 Base-T4, ATM, TP-PMD Seppch, Telephone, Multimedia, Trunk Wiring

Cable Construction

1. Conductor Dimension: 0.55mm

2. Core Dimension: 0.9mm

3. No. Of Pairs: 4

4. Nom. OD: 5.3mm 14.0mm 13.0mm

5. Type of Jacket: PVC/PE

Packing

1) Packing Lengths: 305m/roll

   Other lengths available according to client's request.

2) Inner packing: Wooden reel, plastic reel, and paper reel available

3) Outer packing: Carton box, pull out box, pallet available

4) Other packing available according to client's request

Electrical Characteristics

1.Frequency(MHz): 1 4 10 20 31.25 62.5 100

2. Attenuation(dB/100m): 2.0 4.1 6.5 9.3 11.7 17.0 22.0

3. Impedance(ohm): 100 100 100 100 100 100 100

4. Return Loss(dB): 17 20 22 20 18 16 15

5. NEXT(dB/100m): 62.3 53.3 47.3 42.8 39.9 35.4 32.3

6. ELFEXT: (dB/100m): 61 49 41 35 31 25 21

7. PS NEXT(dB/100m): 62.3 53.3 47.3 42.8 39.9 35.4 32.3

8. PS ELFEXT: (dB/100m): 61 49 41 35 31 25 21
