water pump pressure switch
- China any port
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | KAIDI | |
| Model Number | KDMC2020 |
Each one in well protective inner carton, 10 pcs one box
Product Description

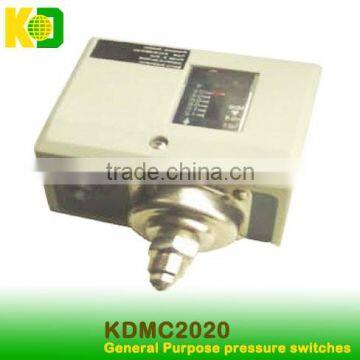

Water pressure switch oil pressure
Specifications:
Measuring ranges: see table below
Output: NO+NC and silver plated contact
≤DC42V, 3A
≤DC125V, 8.5A
≤AC250V, 4.5A
Medium temperature: -45~120 ° C
Protection rating IP33
Interface thread: 1/4 "SAE
Connection: Terminal wiring
Material: wetted parts: brass nickel plated, Case: NBR
Model | Range(bar) | Differential (bar) | Factory default(bar) | Max Press.(bar) | |||
Min | Max | Min | Max | OFF | ON | ||
MC2020-502 | -0.7 | 2 | 0.2 | 1.0 | 1.5 | 1 | 16.5 |
MC2020-503 | -0.7 | 3 | 0.2 | 1.5 | 2 | 1 | 16.5 |
MC2020-506 | -0.7 | 6 | 0.6 | 4 | 3 | 2 | 16.5 |
MC2020-506M | -0.7 | 6 | Reset pressure≤1 | 3 | Manual reset | 16.5 | |
MC2020-110 | 1 | 10 | 1 | 3 | 6 | 5 | 16.5 |
MC2020-516 | 5 | 16 | 1 | 4 | 10 | 8 | 35 |
MC2020-520 | 5 | 24 | 2 | 5 | 16 | 13 | 35 |
MC2020-530D | 5 | 30 | 5 | 10 | 20 | 15 | 35 |
MC2020-530 | 8 | 30 | Fixed 3-5 | 20 | 15-17 | 35 | |
MC2020-530M | 8 | 30 | Reset pressure≤4 | 20 | Manual reset | ||
