Water pressure switch oil pressure
- China any port
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | KAIDI | |
| Model Number | KDMC20A |
Each one in well protective inner carton, 10 pcs one box
Product Description

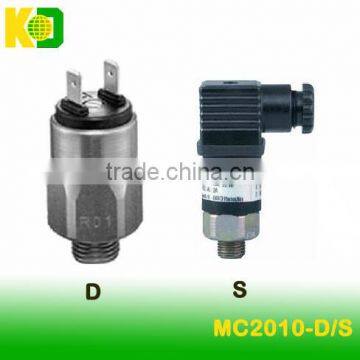

Water pressure switch oil pressure
Specification:
S-type
Delay: 10-20% (25-35%,1-5% optional)
Tolerance: 3% of preset
Output: SPST, NO/NC, contact with gold-plating
≤DC42V,1A
≤DC115V,0.15A
≤AC42V,3A
≤AC125V,3A
≤AC250V,0.5A
Working Temperature: -20~85°C
Weather Proof: IP65
Electric Connect: Terminal
Life Cycle: 1,000,000
Process Connect: SS304
Withstand Voltage;:
Diaphragm type: 30MPa,
Piston type: 60MPa
Material: membrane: NBR
Piston: Steel type woth NBR-sealed
Connection: galvanized steel
D-type
Delay: 10-20% (25-35%,1-5% optional)
Tolerance: 3% of preset
Repeatability: ±3%
Output: SPST, NO/NC, contact capacity:110VA
Working Temperature: -45~130℃
Weather Proof: IP65
Electric Connect: 6.3*0.8 Insert
Life Cycle: 1,000,000
Process Connect: SS304
Withstand Voltage;
Diaphragm type: 30MPa,
Piston type: 60MPa
