Home > Products > with Weichai engine generator > Silent generator with price 200kva Weichai silent power generator for sale

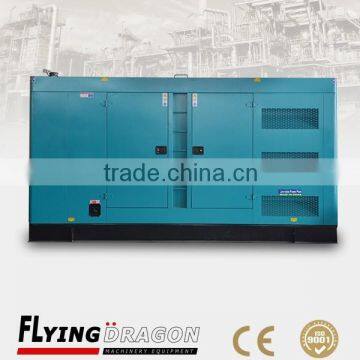

Silent generator with price 200kva Weichai silent power generator for sale
- 40 Set / Sets per Month
- SHANGHAI NINGBO QINGDAO
- T/T Credit Card
You May Like
-
genset 200kva price 200kva Weichai Ricardo diesel electric generator price
-
90kva power generator 75kw diesel electric Ricardo generator
-
Factory dierectly supply 90kva Ricardo series R6105ZD diesel engine power generator for sale
-
Ricardo 6 cylinder diesel engine generator 75kw power generator price
-
50kw silent Ricardo diesel generator for sale 50kw electric generator
-
50kw Ricardo series engine R4105ZD 50kw generator price diesel generator 50kw
Product Details
| Place of Origin | Jiangsu, China | Brand Name | CHENLONG | |
| Model Number | CL-200WS | Output Type | AC Three Phase | |
| Speed | 1500 RPM | Frequency | 50HZ AC | |
| Rated Power | 160KW/200KVA | Rated Voltage | 400V/230V | |
| Rated Current | 288A |
Product Description
Specification
Weichai silent generator 200kva
With Weichai 6120IZLD
With excellent water cooled system
100% copper brushless alternator
Perfect and reliable power station
Silent generator with price 200kva Weichai silent power generator for sale
Weichai silent generator 200kva adopts four cycle direct injection diesel engine, small size, large power, the generator is STC series or brushless series of three times harmonic wave self-excitation constant pressure, strong motor-start ability, fine apperance and reliable performance, low price best quality can satisfy all user.
The main parameter list of Weichai silent generator 200kva
| GENSET DATA of Weichai silent generator 200kva | |
| Item no.: | CLW-160WG |
| Output power: | 160KW/200KVA |
| Standby power: | |
| Power factor: | Cos=0.8(lagging) |
| Rated voltage: | 400V/230V |
| Rated frequency: | 50HZ AC |
| Rated current: | 288A |
| Fuel: | Diesel |
| The regulating rate of steady voltage: | ≤±0.5% |
| The regulating rate of instantaneous voltage: | ≤-10/+15 |
| The time of steady voltage: | 1.5 sec |
| The waving rate of voltage: | ≤0.5% |
| Voltage waveform distortion degree: | ≤5% |
| The regulating rate of steady frequency: | ≤±2% |
| The regulating rate of instantaneous frequency: | ≤±5% |
| The time of steady frequency: | 3 sec |
| The waving rate of frequency: | ≤±0.5% |
| Fuel consumption for full load(g/kw.h): | 238 |
| Overall dimension (L*W*H) (mm*mm*mm): | 2550*880*1500(open type) 3300*1400*1950( with silent canopy) |
| Weight(kgs) | 1700(open type) 2650(with silent canopy) |
| THE ENGINE DATA OF Weichai silent generator 200kva | |
| Brand & model: | Weichai 6120IZLD |
| Configuration: | 4-cycle, in-line 6-cylinder waste gas turbine boost,direct spurting type |
| Aspiration | turbocharger aspiration |
| Engine rotating speed: | 1500 RPM |
| Compression ratio | 13.9:1 |
| Cooled way: | Radiator cooled, fans driven by belt, with safety guard |
| Start way: | DC 24V charge battery |
| Governor system | machinery |
| Filter system: | Air filter, oil filter, fuel filter |
| Bore *Trip(mm*mm): | 120*115 |
| Displacement(L): | 7.8 |
| Lube capacity(L): | 26 |
| THE ALTERNATOR DATA OF Weichai silent generator 200kva | |
| Brand: | Stamford, Marathon,Hengsheng (optional) |
| Structure: | Brushless single bear 4 poles drip-proof |
| Excited type: | Self excited |
Voltage regulating type: | Automatic voltage regulating |
| The connecting way of phase: | 3 phase 4 wires Y connecting |
| Winding: | 100% copper |
Insulation degree: | H |
| Protection grade: | IP23 |
| TIF: | <50 |
| THF: | <2% |
| THE CONTROLLER DATA OF Weichai silent generator 200kva | |
| Brand: | Smartgen, Harsen, Deepsea, ComAP (optional) |
| Type: | Standard equipment, Auto start and stop, Auto transfer between mains and gensets |
| The controller panel is LCD panel, it can display a variety of electricity and oil machine parameters in Chinese and English; with automatic and manual, shutdown(Emergency stop) etc. control functions, it can protect aganist low oil presssure, high temperature, low or high voltage, high or low frequency, over current etc. can meet the needs of various gensets. | |
Package of Silent generator with price 200kva Weichai silent power generator for sale
Usually, it is with plywood case.
Shipping of Silent generator with price 200kva Weichai silent power generator for sale
We ship the goods by sea after receiving the balance.
Service of Silent generator with price 200kva Weichai silent power generator for sale
- Free loading capacity analysis
- Free technology consulations
- Free testing and debuging
- 12 months or 1000 hours warranty service
- Spare parts offered
- OEM service buyer label offered
- 24/7 on-line technical serivce
Products show
What's the frequency of the diesel generator sets?
50HZ AC or 60HZ AC.
What's your voltage of the diesel generator sets?
380V/220V,400V/230V or as requirement.
Which industries need the diesel generator sets?
Building, Hospital, Telecom, Banks, Train station, Metallurgical & Mining, Municipal Engineering and so on.
What's your payment & delivery time?
T/T, L/C, West union.
Generally, we delivery the goods within 7 working days after receiving your deposit.
What's your warranty?
12 months or 1000 hours of warranty time for all of our products, not include the wearing-parts, daily consumable and human error of operating & maintenace, but we can offer the cheaper spare parts than other factory.
