remote control 180kw 3phase power electric generator with Weichai diesel engine 6120IZLD
- SHANGHAI NINGBO QINGDAO
- T/T Credit Card
You May Like
-
Cheap 150kw diesel alternator generator price 150kw power electric alternator generator with Weichai engine R6110IZLD
-
150kva soundproof electric diesel genset with Weichai diesel engine R6105IZLD 120kw soundproof power generator price
-
150kva electric power generator price with Weichai diesel engine R6105IZLD 120kw diesel alternator genset for sale
-
100kw Silent gnerator for sale with Weichai diesel engine 6105AZLD 100kw soundproof power genset
-
100kw diesel engine generators 125kva electric power generators for sale with China home brand Weichai engine
-
200kw cheap generator 250kva weichai generator diesel prices
Product Details
| Place of Origin | Jiangsu, China | Brand Name | CHENLONG | |
| Model Number | CLW-180WG | Output Type | AC Three Phase | |
| Speed | 1500 RPM OR 1800RPM | Frequency | 50HZ OR 60HZ AC | |
| Rated Power | 180KW/225KVA | Rated Voltage | 400V/230V | |
| Rated Current | 324A |
Product Description
Specification
180kw power generator remote control
With Weichai 6120IZLD
With excellent water cooled system
Turbocharged aspiration
100% copper brushless alternator
Perfect and reliable power station
remote control 180kw 3phase power electric generator with Weichai diesel engine 6120IZLD
180kw power generator remote control adopts four cycle direct injection diesel engine, small size, large power, the generator is STC series or brushless series of three times harmonic wave self-excitation constant pressure, strong motor-start ability, fine apperance and reliable performance, low price best quality can satisfy all user.
The main parameter list of 180kw power generator remote control
| GENSET DATA of 180kw power generator remote control | |
| Item no.: | CLW-180WG |
| Output power: | 180KW/225KVA |
| Standby power: | |
| Power factor: | Cos=0.8(lagging) |
| Rated voltage: | 400V/230V |
| Rated frequency: | 50HZ AC or 60HZ AC |
| Rated current: | 324A |
| Fuel: | Diesel |
| The regulating rate of steady voltage: | ≤±0.5% |
| The regulating rate of instantaneous voltage: | ≤-10/+15 |
| The time of steady voltage: | 1.5 sec |
| The waving rate of voltage: | ≤0.5% |
| Voltage waveform distortion degree: | ≤5% |
| The regulating rate of steady frequency: | ≤±2% |
| The regulating rate of instantaneous frequency: | ≤±5% |
| The time of steady frequency: | 3 sec |
| The waving rate of frequency: | ≤±0.5% |
| Fuel consumption for full load(g/kw.h): | 238 |
| Overall dimension (L*W*H) (mm*mm*mm): | 2550*880*1500(open type) 3300*1400*1950( with silent canopy) |
| Weight(kgs) | 1700(open type) 2650(with silent canopy) |
| THE ENGINE DATA OF 180kw power generator remote control | |
| Brand & model: | Weichai 6120IZLD |
| Configuration: | 4-cycle, in-line 6-cylinder waste gas turbine boost,direct spurting type |
| Aspiration | Turbocharge |
| Engine rotating speed: | 1500 RPM or 1800 RPM |
| Compression ratio | 13.9:1 |
| Cooled way: | Radiator cooled, fans driven by belt, with safety guard |
| Start way: | DC 24V charge battery |
| Governor system | machinery |
| Filter system: | Air filter, oil filter, fuel filter |
| Bore *Trip(mm*mm): | 113*115 |
| Displacement(L): | 3.6 |
| Lube capacity(L): | 16 |
| THE ALTERNATOR DATA OF 180kw power generator remote control | |
| Brand: | Stamford, Marathon,Hengsheng (optional) |
| Structure: | Brushless single bear 4 poles drip-proof |
| Excited type: | Self excited |
Voltage regulating type: | Automatic voltage regulating |
| The connecting way of phase: | 3 phase 4 wires Y connecting |
| Winding: | 100% copper |
Insulation degree: | H |
| Protection grade: | IP23 |
| TIF: | <50 |
| THF: | <2% |
| THE CONTROLLER DATA OF 180kw power generator remote control | |
| Brand: | Smartgen, Harsen, Deepsea, ComAP (optional) |
| Type: | Standard equipment, Auto start and stop, Auto transfer between mains and gensets |
| The controller panel is LCD panel, it can display a variety of electricity and oil machine parameters in Chinese and English; with automatic and manual, shutdown(Emergency stop) etc. control functions, it can protect aganist low oil presssure, high temperature, low or high voltage, high or low frequency, over current etc. can meet the needs of various gensets. | |
Package of remote control 180kw 3phase power electric generator with Weichai diesel engine 6120IZLD
Usually, it is with plywood case.
Shipping of remote control 180kw 3phase power electric generator with Weichai diesel engine 6120IZLD
We ship the goods by sea after receiving the balance.
Service of remote control 180kw 3phase power electric generator with Weichai diesel engine 6120IZLD
- Free loading capacity analysis
- Free technology consulations
- Free testing and debuging
- 12 months or 1000 hours warranty service
- Spare parts offered
- OEM service buyer label offered
- 24/7 on-line technical serivce

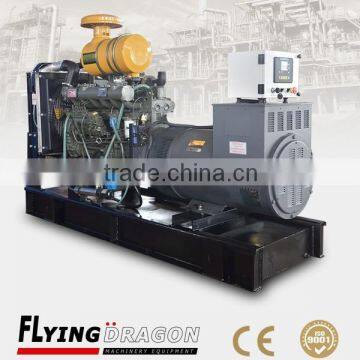

Products show
What's the frequency of the diesel generator sets?
50HZ AC or 60HZ AC.
What's your voltage of the diesel generator sets?
380V/220V,400V/230V or as requirement.
Which industries need the diesel generator sets?
Building, Hospital, Telecom, Banks, Train station, Metallurgical & Mining, Municipal Engineering and so on.
What's your payment & delivery time?
T/T, L/C, West union.
Generally, we delivery the goods within 7 working days after receiving your deposit.
What's your warranty?
12 months or 1000 hours of warranty time for all of our products, not include the wearing-parts, daily consumable and human error of operating & maintenace, but we can offer the cheaper spare parts than other factory.
