Home > Products > MOTOR GRADER > XCMG GR215A Grader for sale

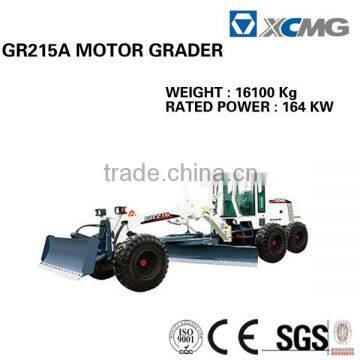

XCMG GR215A Grader for sale
USD $59,000 - $100,000
/ Set
1 Set(Min.Order)
- 50000 Set / Sets per Month
- SHANGHAI
- T/T
You May Like
Product Details
| Condition | New | Forward Speed(km/h) | 38 | |
| Reverse Speed(km/h) | 23 | Place of Origin | Jiangsu, China | |
| Brand Name | XCMG | Model Number | GR215A | |
| Weight | 16100 | Dimension(L*W*H) | 9180*2625*3300mm | |
| Certification | CE/ISO/GOST | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
| Basic specification | |
|---|---|
| Engine model | QSB6.7 6CTA8.3 |
| Rated power/speed | 164kW/2200rpm 160kW/2200rpm |
| Dimension(LxWxH) | 9180×2625×3300mm |
| Operating weight(Standard) | 16100kg |
Performance specification | |
| Travelling speed ,forward | 5,8,11,19,23,38 km/h |
| Travelling speed ,reverse | 5,11,23 km/h |
| Tractive force(f=0.75) | 82KN |
| Max. gradeability | 20% |
| Tire inflation pressure | 260 kPa |
| Working hydraulic pressure | 16 MPa |
| Transmission pressure | 1.3~1.8MPa |
| Max. steering angle of front wheels | ±50° |
| Max. lean angle of front wheels | ±17° |
| Max. oscillation angle of front axle | ±15° |
| Max. oscillation angle of balance box | 15 |
| Frame articulation angle | ±27° |
| Min. turning radius using articulation | 7.3m |
| Biade | |
| Maximum lift above ground | 450mm |
| Maximum depth of cutting | 500mm |
| Maximum blade position angle | 90° |
| Blade cutting angle | 28°—70° |
| Circle reversing rotation | 360° |
| Moldboard width ×height | 4270×610mm |
