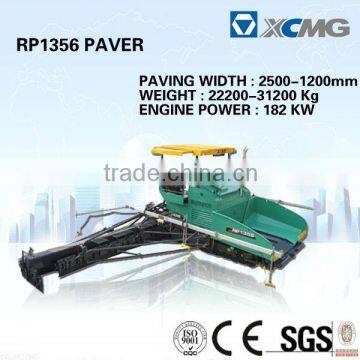

Mechanical Hydraulic Paver RP1356S (Paving width: 14000mm,Engine power: 182kw) of asphalt paver

FOB Price

USD $59,000 - $130,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Production Capacity	800
Power(W)	182	Max. Paving Thickness	350
Paving Width	14000	Place of Origin	Jiangsu, China
Brand Name	XCMG	Model Number	RP1356S
Dimension(LWH)	640226563880	Weight	14
Certification	CE	Warranty	one year
After-sales Service Provided	Engineers available to service machinery overseas

Mechanical Hydraulic Paver RPasphalt concrete paver (Paving width: 14000mm,Engine power: 182kw)

asphalt concrete paver for sale

asphalt concrete paver with good quality

cheap asphalt concrete paver

Items	Unit	Parameters
Items	Unit	DV25Q-I	E600DV
Paving width	m	2.5 ~ 12 (Option: 14m)	3 ~ 9
Max. paving thickness	mm	350	350
Paving speed	m/min	0 ~ 18	0 ~ 18
Travel speed	km/h	0 ~3.6	0 ~ 3.6
Hopper capacity	t	14	14
Centre crown ratio	%	-1 ~ 4	-1 ~ 3
Double vibrator speed	r/min	0 ~ 1470	0 ~ 1470
Vibration frequency	Hz	0 ~ 42	0 ~ 50
Engine		TCD2013L062V Deutz	TCD2013L062V Deutz
Rated power/speed	kW	182	182
Compactness	%	≥90	≥90
Evenness	mm/3m	≤2	≤2
Theoretical productivity	t/h	800	700
Dimension	mm	6402×2656×3880	6980×3000×3880
Machine weight	t	22.2 ~ 31.2	24 ~ 26.5
Paver		RP1356
Screed Model		DV25Q-I	E600DV
Type	/	Double vibrator, eccentric vibration, gas heating	Double vibrator, eccentric vibration,electrical heating
Extension type	/	Mechanical assembly	Hydraulic extension
Width	m	2.5 ~ 12 (Option: 14m)	3 ~ 9
Vibrating speed	r/min	0 ~ 1470	0 ~ 1470
Main amplitude of vibrator	mm	3,5,7,9	5
Auxiliary amplitude of vibrator	mm	0,3,6,9,12	0,5,10
Vibration frequency	Hz	0~42	0~50
Extra-long screed	mm	1500×4,1000×2,500×2,250×2	750×4
