1 32 PLC Optical Splitter Manufacturer with Competitive Price
- shenzhen
- T/T
You May Like
-
Telecommunication Application--1x16 Fiber PLC Optical Splitter
-
Supply 1x4 PLC Fiber Optic Splitter with FC Connectors in Telecommunication Application
-
Factory Price 1x8 PLC Fiber Optic Splitter with FC Connectors in Telecommunicatons
-
1x64 FTTH cassette optical splitter 1 64 plc splitter with high quality plc splitter chip
-
China PLC 1 32 Fiber Optical Splitter Manufacturer with Competitive Price and Good Quality
-
19'1U Standard Chassis 1x16 Rack Mounted PLC Fiber Optic Splitter
Product Details
| Place of Origin | Guangdong, China | Brand Name | Fiber Optic Splitter | |
| Model Number | 1 32 PLC Splitter |
Product Description
Specifications

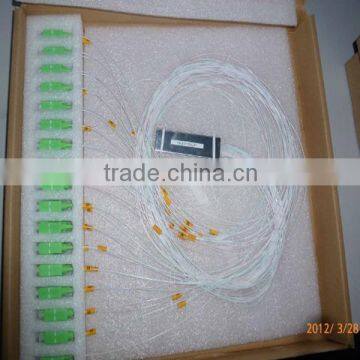

1 32 PLC SplitterOptical splitter divides light from a single fiber into two or more fiber channels.
Applications:
1. Optical communication system
2. System and signal monitoring
3. CATV Systems & Fiber Sensors
4. Fiber to the home (FTTH)
5. Network redundancy
6. Laser splitting
Features:
1. Various coupling ratio
2. Single mode and multi mode available
3. Low insertion loss, low PDL
4. Industry standard and custom housing available
5. Variety of connectors available
6. 1x2, 1x4 and 1x n customized couplers configuration available
Parameter:
Parameter | Configuration | |||
N x 4 (N=1,2,4) | N x 8 (N=1,2,8) | N x 16 (N=1,2,16) | N x 32 (N=1,2,32) | |
Operate Wavelength(nm) | 1310/1550, or customized | |||
Bandwidth(nm) | ±20 | |||
Max.Excess Loss(dB) | 0.2 | 0.3 | 0.4 | 0.5 |
Typ.Insertion Loss(dB) | 6.2 | 9.3 | 12.4 | 15.5 |
Max.Insertion Loss(dB) | 6.8 | 10.2 | 13.6 | 17 |
Uniformity(dB) | 1.2 | 1.8 | 2.4 | 3 |
PDL(dB) | 0.08 | 0.12 | 0.16 | 0.2 |
Thermal Stability(dB) | 0.2 | 0.3 | 0.4 | 0.5 |
Directivity(dB) | ≥60 | |||
Operate Temperature(°C) | -20~+70 | |||
Lead Length(m) | customized | |||
Lead Type(mm) | φ3.0, φ2.0, φ0.9 | |||
