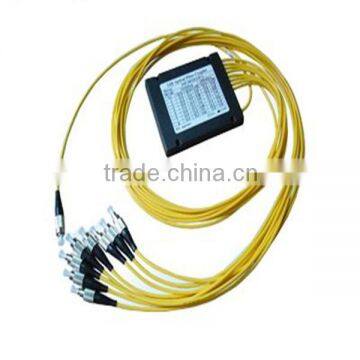

Factory Price 1x8 PLC Fiber Optical Splitter with FC Connectors
- shenzhen
- T/T
You May Like
-
2x32 PLC Splitter in Telecommunication Equipment
-
1x8 PLC Fiber Optic Splitter with FC Connectors
-
Fiber Optic Splitter----1x64 PLC Fiber Optic Splitter with SC PC Connectors
-
SC Connector 1x32 Fiber Optical Splitter Manufacturer with Competitive Price
-
1x2 Singlemode Fiber Optical Splitter with FC Connectors in Telecommunications
-
Tele-communicaiton applicaiton---1x5 FBT Fiber Optic Splitter with SC/APC Connectors
Product Details
| Place of Origin | Guangdong, China | Brand Name | Fiber Optic Splitter | |
| Model Number | 1x8 Optical Splitter |
Product Description
Specifications
1x8 Optical SplitterOptical splitter divides light from a single fiber into two or more fiber channels.
Applications:
1. Optical communication system
2. System and signal monitoring
3. CATV Systems & Fiber Sensors
4. Fiber to the home (FTTH)
5. Network redundancy
6. Laser splitting
Features:
1. Various coupling ratio
2. Single mode and multi mode available
3. Low insertion loss, low PDL
4. Industry standard and custom housing available
5. Variety of connectors available
6. 1x2, 1x4 and 1x n customized couplers configuration available
Parameter:
Parameter | Configuration | |||
N x 4 (N=1,2,4) | N x 8 (N=1,2,8) | N x 16 (N=1,2,16) | N x 32 (N=1,2,32) | |
Operate Wavelength(nm) | 1310/1550, or customized | |||
Bandwidth(nm) | ±20 | |||
Max.Excess Loss(dB) | 0.2 | 0.3 | 0.4 | 0.5 |
Typ.Insertion Loss(dB) | 6.2 | 9.3 | 12.4 | 15.5 |
Max.Insertion Loss(dB) | 6.8 | 10.2 | 13.6 | 17 |
Uniformity(dB) | 1.2 | 1.8 | 2.4 | 3 |
PDL(dB) | 0.08 | 0.12 | 0.16 | 0.2 |
Thermal Stability(dB) | 0.2 | 0.3 | 0.4 | 0.5 |
Directivity(dB) | ≥60 | |||
Operate Temperature(°C) | -20~+70 | |||
Lead Length(m) | customized | |||
Lead Type(mm) | φ3.0, φ2.0, φ0.9 | |||
