Black Tarred Stud Link Anchor Chain 22mm U2 U3 Steel Chains

Black tarred Stud Link anchor chain 22mm U2 U3 steel chains

(Dia22mm whats app 008618067273985)

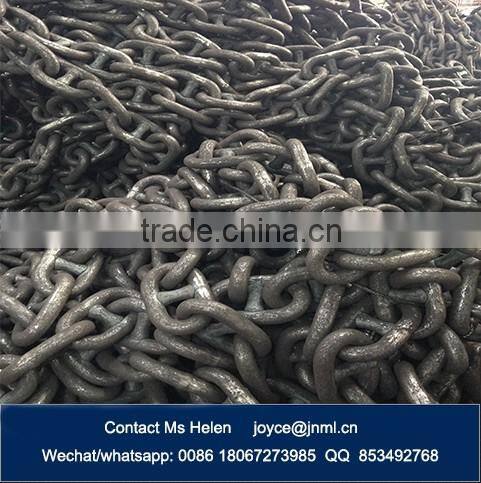

Stud link chain is strong chain and has a stud across its middle which gives the extra rigidity. It is made to ISO 1704 standard. Stud link chain is normally used as anchor cable chain or chafe chain in offshore moorings. It is sometimes used as a mooring chain

Material: Steel

Original: China

Chain Diameter: 12.5mm to 84mm

Steel grade: U1, U2, U3

Technology: Welded link Chain

Usage: Ship, Boat, Marine, Vessel and so on

1 length: 27.5meter (normal), others can supply too bases on requirements

Test Load: Break and Proof testing

Packing: Bulk or bags package

High strength anchor chain

Certificate: CCS ABS BV GL LR KR etc

Payment terms: T/T, L/C, West Union or others

Delivery time: 7-10 days

OEM/ODM: Avaliable

Drawing, Certificate,18 Months Guarantee provided

To non-standard chain, we can produce on your drawing

CHAIN CABLE
Stud Link Chain Cables  from 12.5mm upto 84mm diameter are generally produced in the length of 27.5 mtrs of half length of 13.75 mtrs. These can be produced to desired shorter or longer length also. We also manufacture Open Link Chains for Mooring buoys.

ACCESSORIES
Accessories like Kenter Shackles, 'D' Type Joining Shackles, Anchor Shackles (End Shackles), Swivel Adapters etc. are produces in our own forge shop and precision machined.

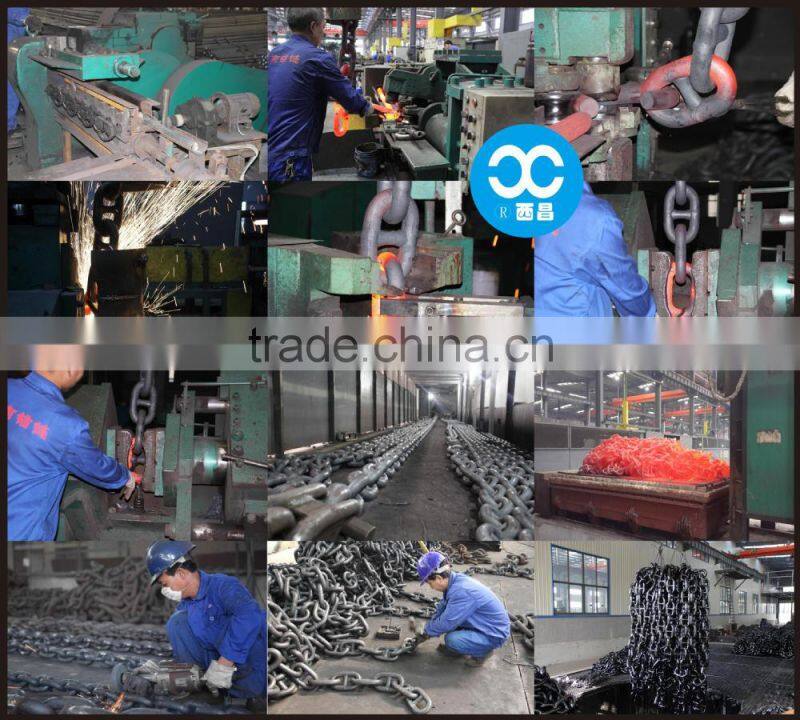

  Production

*Set up in 1990 with 25yeas in chains scope
*China navy appointed supplier on chains and anchor
*CSIC assosiated enterprice
*Chains with 5 series hundred types.
*Certification CCS.LR,NK.BV,KR,ABS ...
*Size from 12.5 to 73mm

  Size

ATT: a) Chains

 Kenter shackles, Joint shackles, Anchor shackles, Swivels, Buoy shackles and Swivel shackles are available.

Chain size 12.5 to 73mm available

U1/U2 chain from 12.5-73mm,U3 chain from 17.5-73mm

chains + connnection shackle parts all available from 17.5-73mm

Sample MOQ:10m

Trial order MOQ:1T

Take 22mm stud weld steel chain as example on size infos

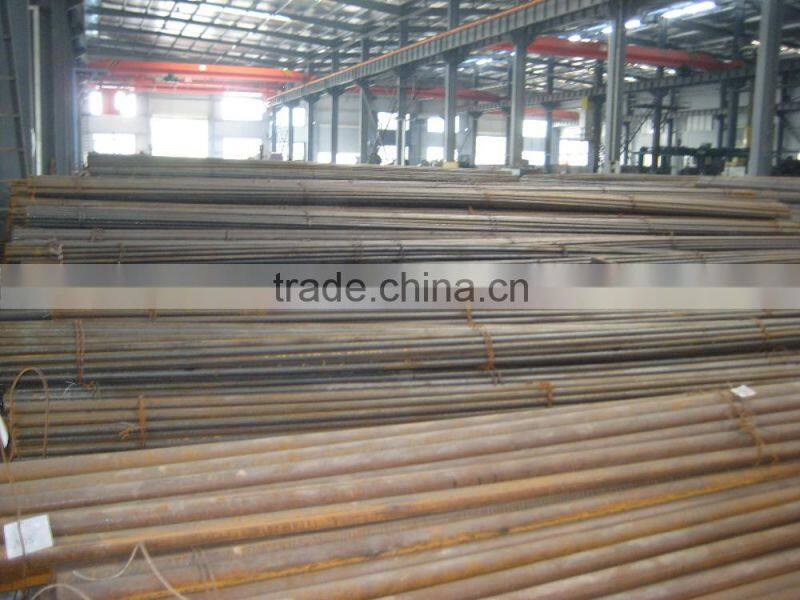

 Material

Grade 1 :Q235 carbon steel

Grade 2: CM490  carbon steel

 Grade 3: CM690  carbon steel

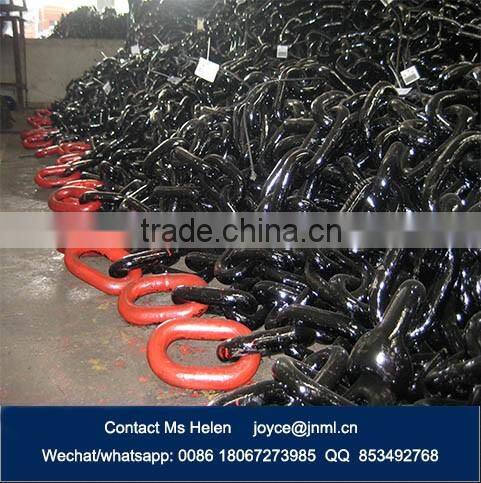

 Surface dealing with

Sleft colour

Black barred

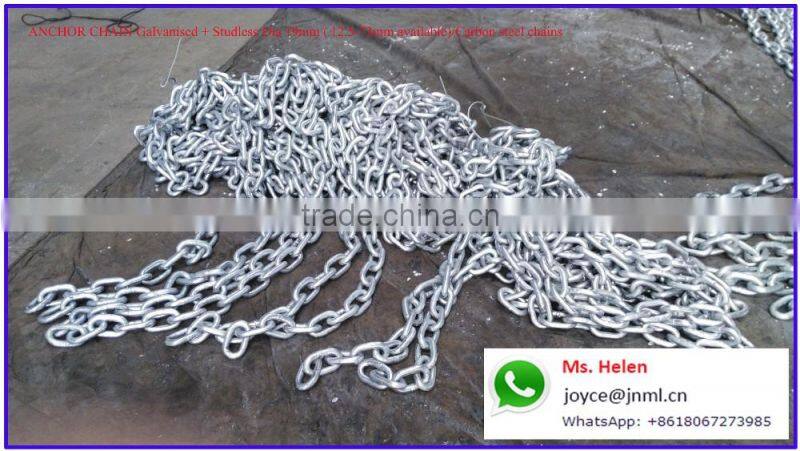

Hot dip Glavanized ( ok pic as below!)

 Speicification

1)Break loading for Grade stud 22mm chains--AM2/280KN  AM3/401KN

2)The length always 25m/ length or 27.5m/length,weight is KG/M

3)Each chains contacted by Kenter shackle.

4)AM2 22mm chains match 660KG anchor, AM3 22mm chains match 780KG anchor

5)22mm swivel group available,E+EL+SW+EL+C per set.8.7KG

6)22mm joint shackle,28mm end shackle available,on option

7)Structure C+C+...+C+C or ES+E+EL+SW+EL+C+C+...+C+C+C

Manufacturing Department

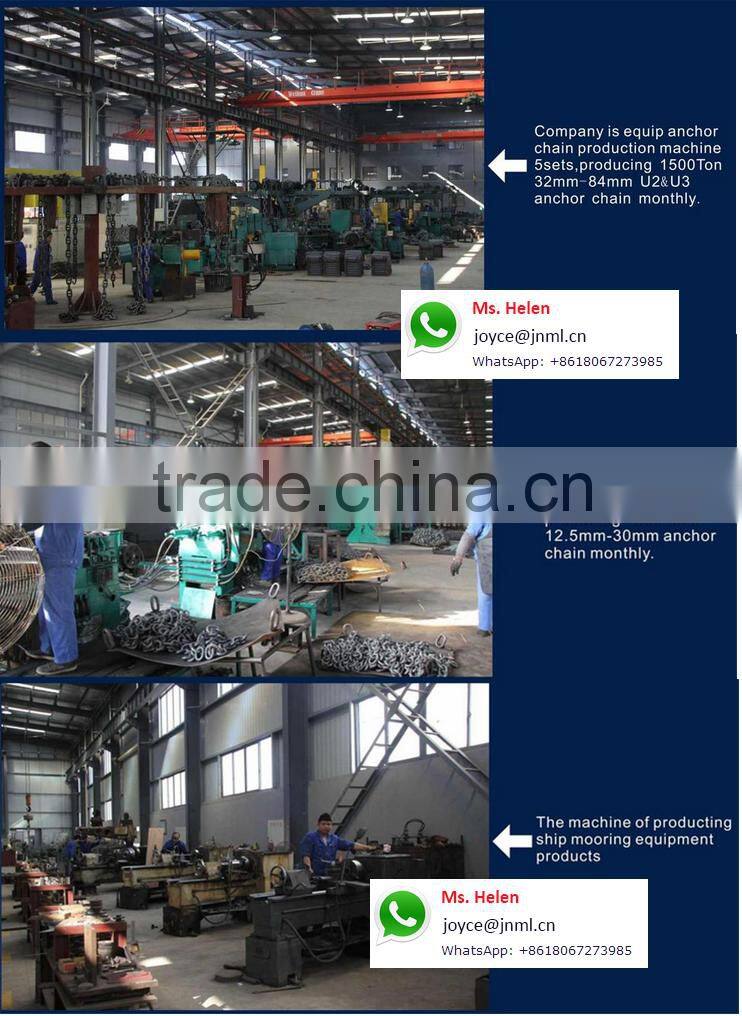

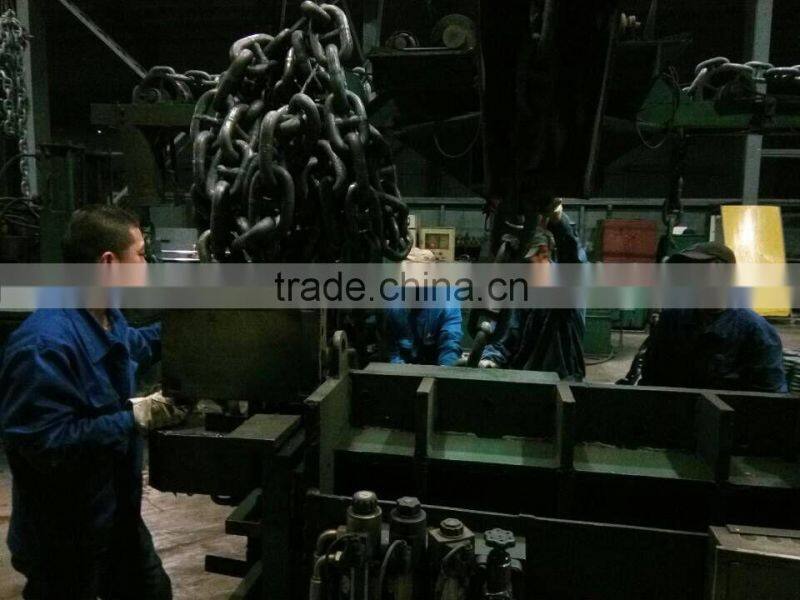

Production Equipment

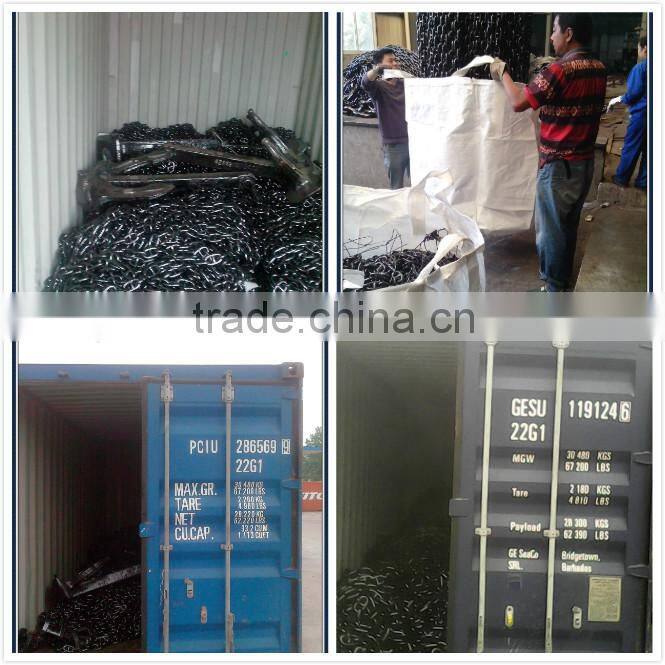

 Shipping and delivery

Contact Us for more infos
