Ship Marine Galvanised Anchor Chain 20.5mm

Ship Marine Galvanised Anchor Chain 20.5mm dia

  Production

*Set up in 1990 with 25yeas in chains scope
*China navy appointed supplier on chains and anchor
*CSIC assosiated enterprice
*Chains with 5 series hundred types.
*Certification CCS.LR,NK.BV,KR,ABS ...
*Size from 12.5 to 73mm

  Size

ATT: a) Chains

 Kenter shackles, Joint shackles, Anchor shackles, Swivels, Buoy shackles and Swivel shackles are available.

Chain size 12.5 to 73mm available

U1/U2 chain from 12.5-73mm,U3 chain from 17.5-73mm

chains + connnection shackle parts all available from 17.5-73mm

Sample MOQ:10m

Trial order MOQ:1T

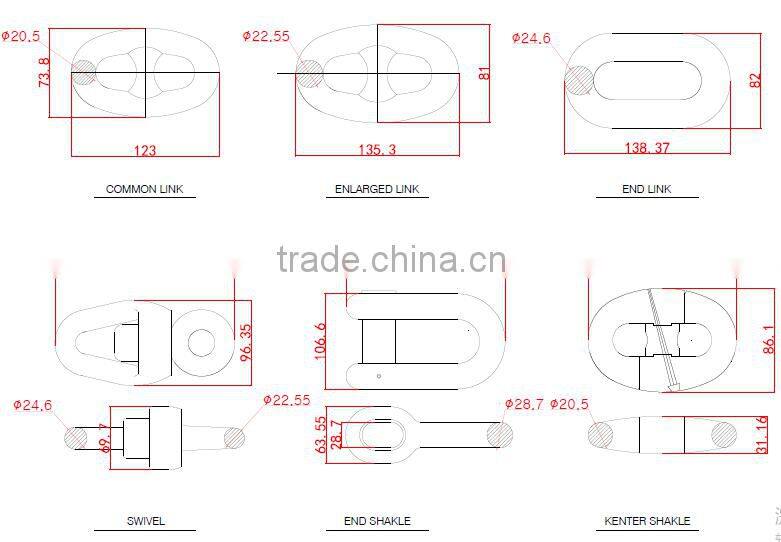

Take 20.5mm as example on size infos

 Material

Grade 1 :Q235 carbon steel

Grade 2: CM490  carbon steel

 Grade 3: CM690  carbon steel

 Surface dealing with

Sleft colour

Black barred

Hot dip Glavanized ( ok pic as below!)

 Speicification

1)Break loading for Grade stud 28mm chains--AM2/449KN  AM3/642KN

2)The length always 25m/ length or 27.5m/length,weight is KG/M

3)Each chains contacted by Kenter shackle.

4)AM2 28mm chains match 1020KG anchor, AM2 28mm chains match 1290KG anchor

5)28mm swivel group available,E+EL+SW+EL+C per set.17.8KG

6)28mm joint shackle,28mm end shackle available,on option

7)Structure C+C+...+C+C or ES+E+EL+SW+EL+C+C+...+C+C+C

Manufacturing Department

Exhipitions

Production Equipment

Inspect Facilitles

 Shipping and delivery

Contact Us for more infos
