FoundryVibratory Knockout Machine
- 100 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | QDHC | Model Number | S1 | |
| Voltage | 220v/380v | Power(W) | customized | |
| Dimension(L*W*H) | customized | Weight | customized | |
| Certification | CE,ISO | Warranty | One year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

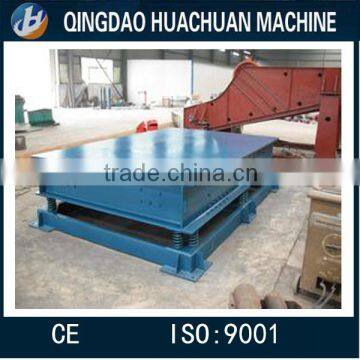

FoundryVibratory Knockout Machine
1.This machine is a vibration machine, mainly composed of frame and pedestal, all adopt welding structure.
2.Vibration parts of frames was supported by the spring support machine,The side of the machine frame symmetrical installed two vibration motor in the horizontal position.
3.The motor installed in the outside, has the characteristics of convenient usage and maintenance, with advanced and reasonable structure, high efficiency, stable made of sand, low noise ect.
4.It can be used alone, also can be sets combined
Model | payload (T) | machine weighs (KG) | mesa dimension(mm) | dimension (mm) | motor power (KW) | frequency (KW) |
L123 | 3 | 3800 | 2000×1800 | 2300×1900×1000 | 3.7×2 | 1000 |
L125 | 5 | 5500 | 2500×1900 | 3000×2000×1120 | 5.5×2 | 1000 |
L128 | 8 | 6500 | 2800×2000 | 3200×2100×1250 | 5.5×2 | 1000 |
L1210 | 10 | 11000 | 3000×2200 | 3560×2200×1280 | 7.5×2 | 1000 |
L1212 | 12 | 12000 | 3000×2500 | 3560×2500×1280 | 9.5×2 | 1000 |
L1215 | 15 | 13500 | 3500×2800 | 4060×2800×1280 | 12×2 | 1000 |
L1220 | 20 | 23000 | 4000×3000 | 4500×3000×1330 | 14×2 | 1000 |
L1225 | 25 | 25800 | 4500×3200 | 5000×3200×1360 | 17×2 | 1000 |
L1230 | 30 | 30000 | 4500×3500 | 5000×3200×1360 | 22×2 | 1000 |
