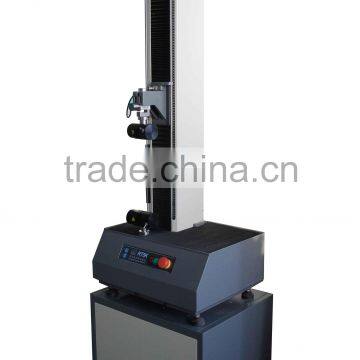

Universal tensile tester RT5K

Specifications

Universal tensile tester RT5K

Tensile/Tensile tester/Tensile testing machine

Function:

The machine can do tensile, peel, shear,tear, compression and many other types of tests. According to GB, ASTM, ISO standards. Automatically calculated the maximum test load, the maximum extension, tensile strength, stress and other parameters. Mainly used for testing the strength of materials, such as metal wire, sheet metal, rubber,
plastics, composite materials, waterproof materials, paper, fabric, yarn, wire, cable and etc.

UTM has a fully automatic control system. This series of products using PLC control systems, high-precision AC servo motor drive system, high precision ball screw, encoder displacement feedback. Has double security protection for movement. All of the above components are imported high-precision parts. Test with a simple operation, stable, safe, reliable, accurate measurement. After one test, the computer calculated parameters for all properties. All data and curve can be automatically saved. All of the data and graphs can be compared easily and print out a complete test report and test curves.

Principal characteristics

Mechanical structure:

Adopting the gantry or single-arm structure, weighted, good designed cover, no-interval high presisionary anti-friction bearing double filament shaft to ensure the steel character of the whole machine and load efficiency.

Driving device:

Adopting servo motor to link the filament shaft, with lower noise.

Data acquisition and processing system:

Adopting advanced data acquisition and processing system, using USB data transmission interface which can provide
higher speed and well control of the machine.

Measuring system:

Adopting imported load sensor and encoder, which provide higher precise testing data.

As the testing machine, it must have the following characteristics: higher stability, lower failure rate, which include:

mechanical parts stability, software stability, electrical safety.

Technical characteristics and advantages of products

Higher stability
Mechanical, software, communications, electrical and so on have very high stability. high integration on Electrical part, on the one hand, not easy to damage and failures occur, such as poor contact, etc., on the other hand, to facilitate a quick upgrade and maintenance. Low failure rate of operation, long service life.

high-precision AC servo motor drive system, ball screw, encoder, PLC controller.

With friendly windows operation surface and can run in win2000/Winxp/Vista.

with multi-types graph:

Load-Exten; Load-Time; Exten-Time; Stress-Strain; Stress-Time.

All of the data are saved automatically and can be output reporter as excel file and printed with LOGO and other settings.

With test schedule setting functions which easy to customization the test by users.

Lower noise <55dB.

A variety of ways to make safe and reliable test running.

Technical indexes

Capacity: 50KN(RT50K);

10 KN/ 20 KN / 30 KN (RT50K-2)

below 5KN(RT5K,RT5K-2)

Accuracy level: grade 0.5

Deformation measurement accuracy: within ±0.5% of read value

Effective measurement range: 0.4%~100% FS

Range of loading Speed: 0.1~500mm/min

Range of long travel extensometer: 0~900mm(RT50K,RT50K-2); 0~800mm(RT5K,RT5K-2).

Protective function: automatic protection reacts when loading is over maximum capacity

Main part dimension (W*L*H):

730*500*2000mm for RT50K and RT50K-2

710*460*2100mm for RT5K-2 (with base box)

560*420*1950mm for RT5K (with base box)

Weight:

160Kg for RT50K;

145Kg for RT50K-2

150Kg for RT5K-2 (with basis box)

140Kg for RT5K (with basis box)

Power: AC220~230V,50/60Hz,3A. With power-off protection device.
