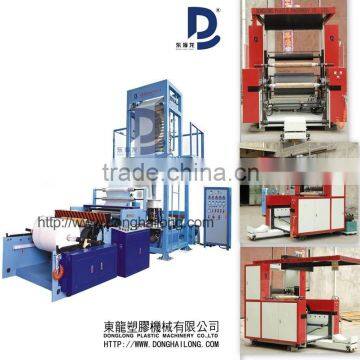

Polythene (PE) film blowing machie with rotary die head and auto winder

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Film
Plastic Processed	PE	Blow Moulding Type	Extrusion Blow Moulding
Automatic	Yes	Place of Origin	Fujian, China
Brand Name	donghailong	Model Number	SJ45-FMS650PG,SJ55-FMS850PG,SJ65-FMS1300PG
Certification	CE,SGS	Warranty	1 YEAR
After-sales Service Provided	Engineers available to service machinery overseas

LDPE/LLDPE/HDPE film blowing machie/film extruder
The products are for packing,
such as vest bag, shopping bag, garment bag

Polythene (PE) film blowing machie with rotary die head and auto winder

Main Technology Parameters

SJ-PG series film blowing machine
MODEL NO.		SJ45-FMS650PG	SJ55-FMS850PG	SJ55-FMS1100PG	SJ65-FMS1300PG
LAYER NUMBER		1
MAX.FILM WIDTH	LD mm	550	800	1050	1250
MAX.FILM WIDTH	HD mm	500	750	1000	1200
FILM THICKNESS	LD mm	0.015~0.10	0.020~0.15		0.020~0.18
FILM THICKNESS	HD mm	0.006~0.07	0.006~0.10	0.015~0.10	0.015~0.12
OUTPUT	LD Kg/h	30	40	50	65
OUTPUT	HD Kg/h	25	32	40	50
RAW MATERIAL		HDPE,LDPE,LLDPE
EXTRUDER
SCREW DIAMETER	mm	Φ45	Φ55	Φ55	Φ65
SCREW L/D		28:1	28:1	30:1	25:1
HEATER CAPACITY	kw	8.9	10.7	10.7	13.2
DRIVING MOTOR	kw	11	15	18.5	22
DIE:( Rotating die is optional)
DIE DIAMETER( LD&HD FREE CHOICE)	mm	LDPE Φ 150	LDPE Φ 200	LDPEΦ250	LDPEΦ300
DIE DIAMETER( LD&HD FREE CHOICE)	mm	HDPEΦ50Φ70	HDPEΦ60Φ80	HDPEΦ60Φ90	HDPEΦ80Φ110
HEATER CAPACITY	kw	LDPE 4.0	LDPE 4.8	LDPE6.15	LDPE6.7
HEATER CAPACITY	kw	HDPE: 3.45	HDPE: 3.45	HDPE: 3.45	HDPE: 6.1
COOLING AIR BLOWER	kw	1.5	2.2		3
HAUL-OFF:
DRIVING MOTOR	kw	0.75	1.5
TAKE-UP SPEED	m/min	10~70
WINDER DRIVE MOTOR	kw	4	4.5
TEMPERATURE CONTROL	point	5		6
WHOLE POWER WITH TOTAL MACHINE	kw	~30	~36.5	~43	~52
SHAPE SIZE	m	5.5 X 2.8 X 4.0	6.2 X 3.0 X 4.0	6.5 X 3.3 X 4.5	7.3 X 3.5 X 5.0
WEIGHT	t	3	3.5	4	4.5

Correct specifications depend on the actual model all specifications are subject to change without prior notice
