Home > Products > Mini type PE film blowing machine > Mini PE Film Blowing for Small Products

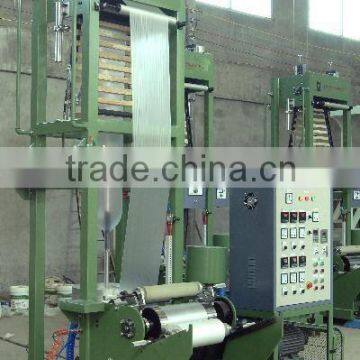

Mini PE Film Blowing for Small Products
Negotiable
/ Set
1 Set(Min. Order)
- Xiamen
- T/T
You May Like
Product Details
| Condition | New | Application | Film | |
| Plastic Processed | PE | Blow Moulding Type | Extrusion Blow Moulding | |
| Automatic | No | Place of Origin | Fujian, China | |
| Brand Name | Donghailong | Model Number | SJ35-FMS500P | |
| Voltage | 220/380V | Power(W) | ~23kw | |
| Dimension(L*W*H) | 2.4*1.5*2.8 | Weight | ~1500kg | |
| Certification | CE,TUV,SGS | Warranty | 1YEAR, 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Machine Features
1. To produce plastic film made of LDPE, HDPE, LLDPE and mLLDPE
2. Products are widely used in application of package of civil and industrial products
3. The ideal choice for small sizes products.
| Main Technical Parameters | |
| Model | SJ35-FMS500P |
| Max. Folded Film Width | 400mm |
| Film Thickness | 0.008~0.10mm |
| Output | 15 kg/h |
| Raw Material | HDPE,LDPE,LLDPE |
| Screw Diameter | Φ35mm |
| Screw L/D | 28:1 |
| Total Power of the Machine | ~23KW |
| Shape Size( L x W x H) | 3.5X2.5 X 3.0m |
| Weight (T) | 3.8T |
| Correct specifications depend on the actual model all specifications are subject to change without prior notice! | |
