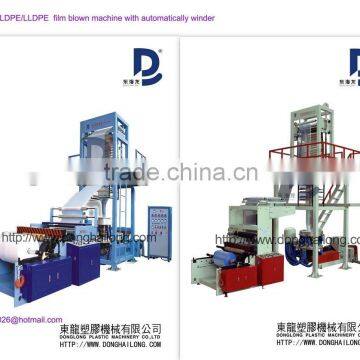

Low-density Polyethylene(LDPE) film blowing machine with rotating die head and auto winder
- xiamen
- T/T
You May Like
-
High Speed High-density Polyethylene /HDPE blowing film machine
-
Hige Speed HDPE Film Blowing Machine
-
Polythene (PE) film blowing machie with rotary die head and auto winder
-
film blowing machine with single station full-automatically winder
-
Three-layer Co-extrusion PP Film Blowing Machine
-
LD/LLD/HDPE blowing film machine with rotating die head and automatically winder
Product Details
| Condition | New | Application | Film | |
| Plastic Processed | PE | Blow Moulding Type | Extrusion Blow Moulding | |
| Automatic | Yes | Place of Origin | Fujian, China | |
| Brand Name | donglong | Model Number | SJ55-FMS850PG, SJ65-FMS1300PG | |
| Certification | SGS,CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
LDPE film blowing machine with rotating die headauto winder, save labor, little waste
its products are vest bag, shopping bag
Low-density Polyethylene(LDPE) film blowing machine with rotating die head and auto winder
Model SJ55-FMS850PG
Main technology parameters:
Suitable Material: LDPE, LLDPE/HDPE
Max. Film width: 850MM
Film thickness: 0.008~0.15mm
Max. Extrusion Output: 55kg/h
1*) EXTRUDER:
Screw diameter : φ55mm
Screw L/D Length: 28:1
Main Motor: 18.5kw (controlled by Inverter)
2*) TYPE OF DIE
Die size : LDPEφ200mm ,HDPEφ60,φ80
Heater Capacity: LDPE4.8kw /HDPE3.45KW
Die: (Rotary die head is optional )
Air Cooling Power: 4.0kw
3*) TAKE-UPUNIT
Take-up unit: controlled by Inverter Motor
Roller width : φ850mm
Effective width: 850mm
Take-up speed: 10~70m/min
Driving motor: 1.5kw
4*) WINDER UNIT
Winder Type: Single Auto winder
Winding motor: 1.5 kw (controlled by Inverter Motor)
Winding speed: 10-70 m/min
Winder Shaft: air shaft x 2pcs
Temperature Control: 6point
Whole power of machine: ~43KW
Weight: 3500KG
Outline diameter (L*W*H):6.5m x3.3m x5.2 m
