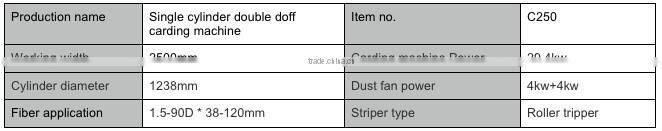

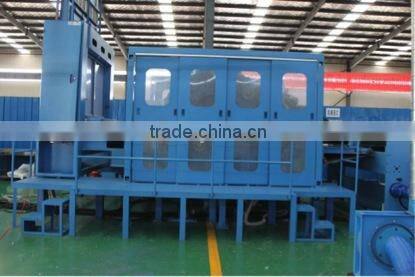

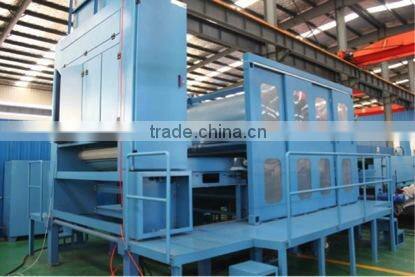

C250 Carding Machine With Opening Machinery

Feeding roller anti-rolling device to prevent the fiber wire damaged;

Double doff, roller tripper fiber output system.

High machining accuracy; the cylinder surface diameter jump and straightness can be controlled within 0.02mm.

Conveyer anti-vibration device.

The entire machine is armed with enclosed cover and large observation window to ensure safety, convenience and good looking.

The entire machine has 3 sections and the front and back one is more flexible to have maintenance.

The carding machine is installed on a large platform with fence around to have safe operation, so and the maintenance safe.

The output fiber net is aspect smooth and clean.

It is controlled by PLC control system, input by screen and auto, manual fine-tuning mode.

There is blowing system installed to the working rollers and strippers to prevent the dust and fiber stuck to the roller edge and bearings.

The whole machine motor frequency control, to apply different process requirements and to save the cost of electricity.

Suitable material

 Polyester fiber,Polypropylene,sea island fiber,Micro fiber,Chinlon,Glassfiber,Carbon fiber,Cotton and absorbent cotton etc.

Material length:1.5-9D,38-120mm.

MDF package

Ocean shipping.

We are able to supply machine commissioning support and training oversease for larger automatic machine lines.

Please contact us as soon as posible when any problem happends with some photos and descriptions; our engineers will response within 24 hours with technical instructions.

All spare parts are standard that can be found from local.We will send it to you by overnight if needed.

Payment term: 50% is paid in advance; balance should be paid in 15days after the shipping date.

Loading date: Within 50 days after receipt the advance.

Machine condition: New in 2014

Guarantee: 1year material for free; 6months for the electrical key parts; after sales service forever.

Certification: BL, CO, PL, CI.
