QL006G Non Woven Fabric Equipment With Fiber Ball Forming Machine

product line description

1.The automatic ball fiber shipping bag filling machine is mainly used to have ball fiber forming and then fill into shipping bags ready for the transportation;

2.The whole line is assembled with bale breaker, fiber feeding blower and pre-opening blower, ball fiber machine, silo and double slot pillow filling system.

3.It can be handled by only 1 operator adjusted by PLC control system

4.Metal separator by magnet;

5.Electrical metal alarm system;

6.Adjustable frequency according to different fiber type;

7.All electrical key parts are adopted by the most famouse world brand such like Siemens, Schneider and Omron etc.

8.The electrical control system is able to meet CE, UL and Australia safety standard;

The profile of the machines of the production line

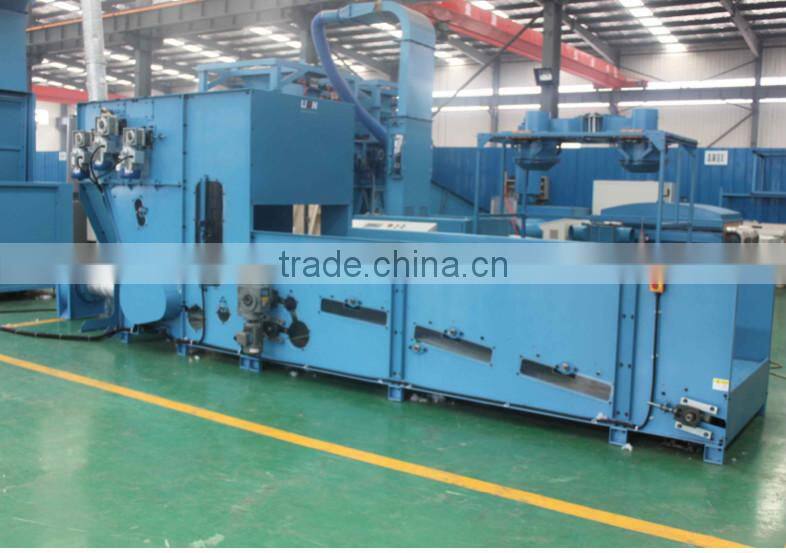

1.Bale breaker

The bale breaker is mainly used to load a full bale of raw material and transport to the next program automatically;

There is no need any operator working for this program during the operation within 1 hour;

2.Pre-opening blower

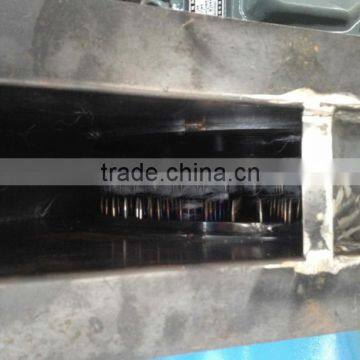

The pre-opening blower is made by pins that is able to process 60% opening rate before ball fiber producing in order to receive high capacity and better finished ball fiber;

tal separator

The metal separator is the first step in the machine line to collect the metal while operation;

4.vibration hopper

The vibration hopper is mainly used to feed raw material into the ball fiber machine evenly, so that the finished ball fiber could be even quality;

Save labor cost.

5.ball fiber machine

New ball fiber design;

Able to process wild range of PSF, Wool fiber, Recycle hard and soft fiber;

Electrical metal alarm system arranged to the feeding rollers

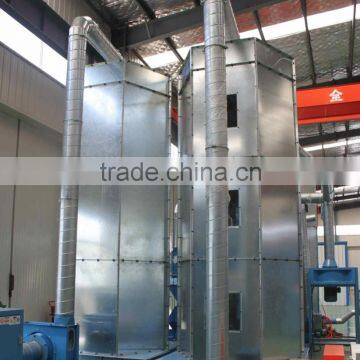

6. silo

The silo is used to keep the finished ball fiber and ready for the next program;

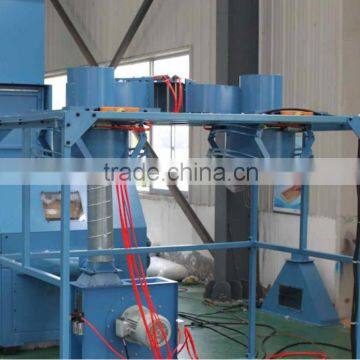

7.shipping bag filling machine

The shipping bag filling bag filling machine is used to fill the finished fiber ball into shipping bags by double slot;

Modification: Pressing device to fill more.

The electric key parts

All electricial key parts are adopted by the most famous world brand such like Siemens, Omron and Schneider;

The safety standard is able to meet the UL, CE and Australia rules.

Finished production

Adjustable ball fiber size;

Wild fiber range is able to be processed;

Without hurting silicon by reasonable speed and V-wire working;

Wool fiber ball possible;

Recycle material possible.

MDF package

Ocean shipping.

We are able to supply machine commissioning support and training oversease for larger automatic machine lines.

Please contact us as soon as posible when any problem happends with some photos and descriptions; our engineers will response within 24 hours with technical instructions.

All spare parts are standard that can be found from local.We will send it to you by overnight if needed.

Certification:

Certified Picture	Certification Name	Certified By	Certificate No.	Product Name & Model No.	Available Date --- Expired Date
	CE	Viacer T	VC/2011/09/100/CE	Pillow Machine & QL001 QL003 QL 005B SX700 SX1000-B QL 1000-BF QL 1000-BP SX1790-ATH QL005A	2011/09/07 --- 2049/12/31
