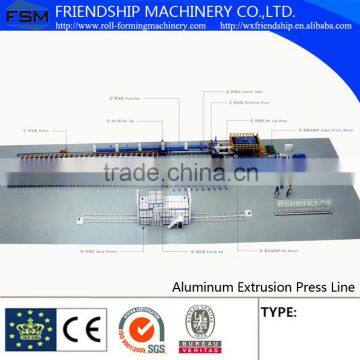

aluminum extrusion machine,aluminum extrusion press line
- 5 Set / Sets per Month
- shanghai
- T/T D/P D/A
You May Like
Product Details
| Place of Origin | Jiangsu, China | Model Number | 1000ton | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
1000T Aluminum Extrusion Press Line Specifications
1. Summary
1) Purpose:Aluminum or aluminum alloy extrusion for making architectural profiles, industry profiles, Pipe and bar.
2) Pattern:Horizontal, hydraulic, overhead hydraulic parts, guided parallel X direction.
1) Product limit
Max. Dia. of Circumcircle: 125mm
Max. Dia. by using Spread Die: 195mm
2) Extrusion technology
a) Preheating the extrusion barrel 4 hours in advance
b) Putting the dies in the die heating furnace and heating to 400℃
c) Heating the aluminum bars to 450℃
d) Put one bar in the extrusion barrel and extruding.
e) Controlled by the PLC or manually.
- 1. Requirement
1) Workshop Space (L×W×H): 60×15×5 m
2) Power Supply: 380V±10%, AC 50Hz±0.5Hz, 400KW
3) Compression Air: P=0.4-0.6 MPa, 10m3/h
4) Loop Cooling Water: P=0.6 MPa, 30m3/h, ≤30℃
5) Working mediumN68 Hydraulic oil 6T
6) Temperature≥0℃, ≤40℃
- 2. Main Technical Specifications
1) 1000T Extruder
a) 1000T Extruder Main parameters
Index | Item | Parameters | Remark |
1 | Working pressure | 21Mpa |
|
2 | Normal Force | 12.5MN |
|
3 | Travel route of main plunger | 1350mm |
|
4 | Returning force of rapid cylinder | 0.51MN |
|
5 | Locking force | 1.2MN |
|
6 | Master shearing force | 0.62MN |
|
7 | Extruding speed (Max.) | 9mm/s |
|
8 | Inner bore dimension | Dia. : 130~180 Length: 650mm |
|
9 | Ingot Diameter | Dia. : refer to inner bore Length: ≤550mm |
|
10 | Motor power | ≈210KW |
|
11 | Heating power of Inner bore | 1.3KW × 18 = 24KW | 380℃-450℃ |
12 | Operate mode | Manual and one pass automatically |
|
13 | Outer Dia.(L×W×H) | 9.5×3.5×3.8 m |
|
14 | Weight | 65T |
