IP 68 SMD 3528 Anyview 360 Degree Led Neon Strip Lights

-50meters/carton
-Carton size: 36x36x30cm
-Gross weight : 22-23KGS per carton
-Standard carton package for 3528 Led Strip/Round Led Neon Flex

IP 68 SMD 3528 Anyview 360 Degree Led Neon Strip Lights

Product Description

Led Neon Flex is comprised of solid-state Light Emitting Diodes (LEDs) in series solder on Flexible PCB housed by an inner plastic extrusion core. the light source has SMD2835 and SMD5050,An UV stable outer plastic jacket further protects the inner core. The plastic jacket will be the translucent colored and the LED will be Red, Orange, Blue, Yellow, Green and White. Base our patented technical, we produce the Neon Flex  with a continuously color linear effect as well as Glass Neon.



Led Neon Flex Features:



1). 2 X Pure copper wire (0.75 sq . m . measure) as conducting wire, reducing line loss and volt. drop , more stable & safer.



2). Optically modified PVC extrusion : UV stable ; and PVC with heat/cool stabilizer, extremely high /low temp. resistant .



3). Complete kit including adapters, connectors & mounting clips enables easy installation.



4). Flexible, bendable, unbreakable & cuttable (cut at cutting marks).



5). SMD 2835 LED - 0.2W/LED (60mA)  -  Super Bright



6). No cold weather start problems or color shift.



7). Vivid NEON lighting effect, uniform light, no dots.



8). Waterproof IP65 , ok for indoor / outdoor use.



9). Eco-friendly, energy-effcient, durable, long-life.

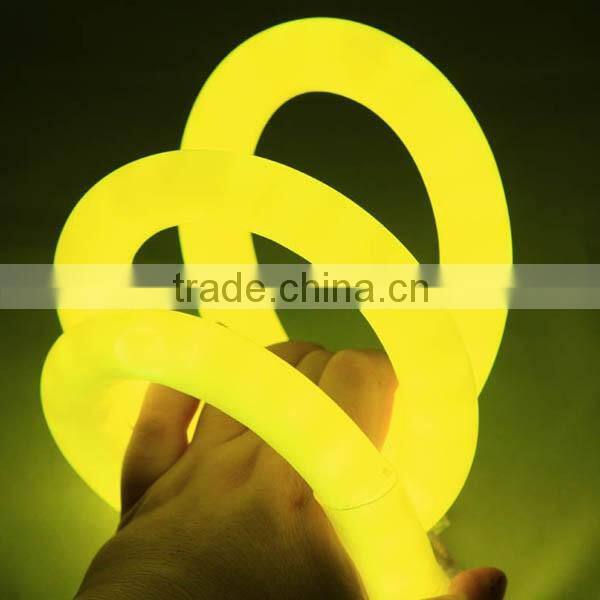

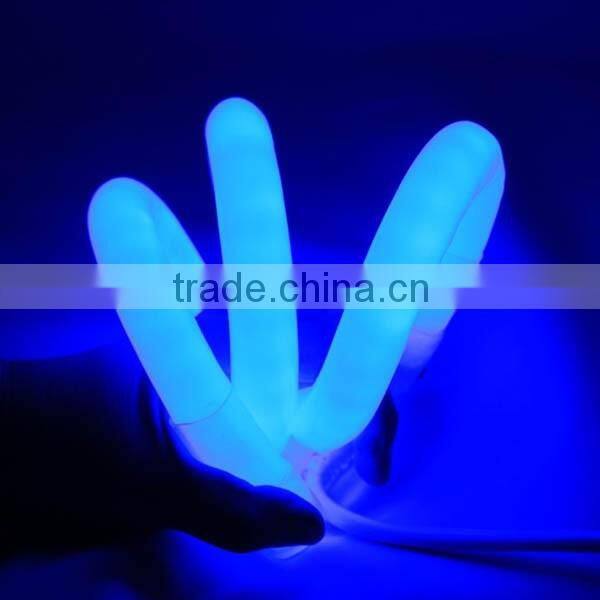

Round neon flex

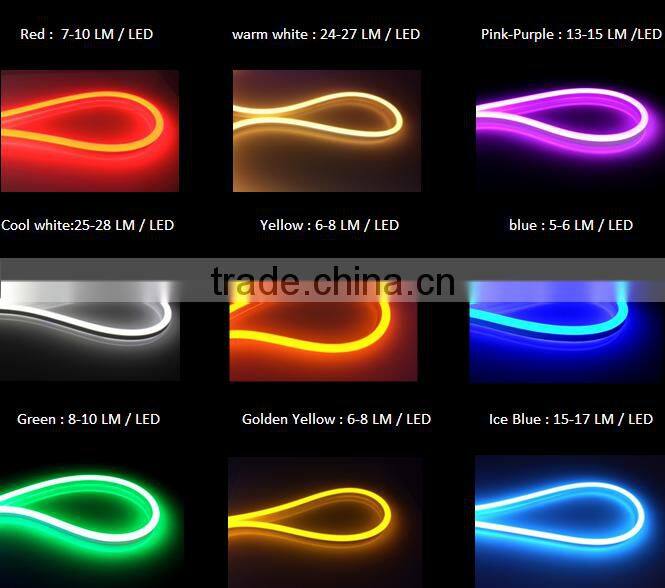

Led Domed Neon Flex 9 colors display:



Widely applications for LED flex neon

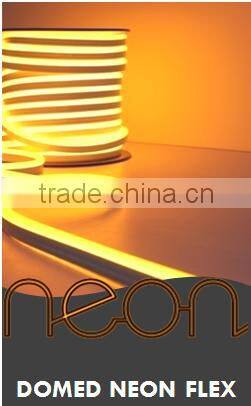

Led Neon Flex Shape, Domed Shape & Flat Shape Specification

	Model	OL-NF-240V/120V/24V/12V
	Volt.	AC240V/AC120V/DC24V/DC12V
	Cut Length	6LEDS/12LEDs/42LEDs/84LEDs
	LED Type	SMD2835
	LED Qty	84LEDs/m
	Power	9W/m
	IP Grade	IP65/IP66/IP68
	Size	13.5x27mm
	Color	R/G/B/IB/Y/GY/W/WW/P
	Skin Color	Milk white/Color Jacket/Crystal
	Warranty	2 years
	Lifespan	50000hours
	Material	Anti-UV PVC
	Working condition	Indoor or outdoor use:  - 20°~ +60°C
	Roll Length	50.6m/roll
	Carton size	36x36x30cm
	G.W	23.5Kgs

 Mini Led Neon Flex Specification:



	Model	OL-M-NF-240V/120V/24V/12V
	Volt.	AC240V/AC120V/DC24V/DC12V
	Cut Length	6LEDS/12LEDs/42LEDs/84LEDs
	LED Type	SMD2835
	LED Qty	84LEDs/m
	Power	9W/m
	IP Grade	IP65/IP66/IP68
	Size	11.5x18mm
	Color	R/G/B/IB/Y/GY/W/WW/P
	Skin Color	Milk white/Color Jacket/Crystal
	Warranty	2 years
	Lifespan	50000hours
	Material	Anti-UV PVC
	Working condition	Indoor or outdoor use:  - 20°~ +60°C
	Roll Length	60m/roll
	Carton size	36x36x17.5cm
	G.W	17Kgs

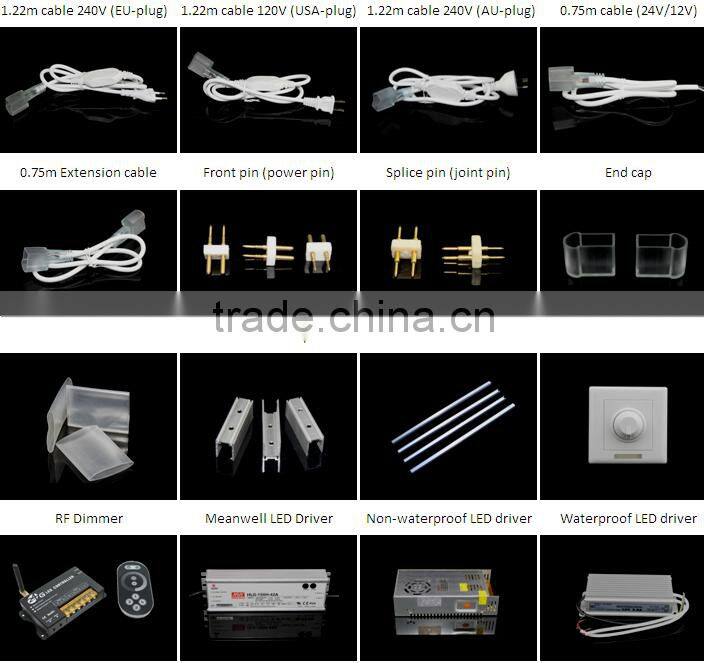

Led Neon Flex _ Accessories :



 1 ) Special packing can be customized like colored boardcards

We have 3.5m/box,10m/roll,20m/roll and 50m/roll
2) Special length can be packing with different size reel
3) Standard packing is 50m per roll, weight : 23.5 Kg
4) Strong protection for long distance shipment by Express or sea container

Led Neon Flex _ Instruction :

* Use a heat gun to shrink the tubing, heat it evenly, until it 's snug to led neon flex and the edges are slightly beading from glue!

Led Neon light Certificates :

Led Neon Flex _ Applications :

- Path & contour marking  _ Elegant interior decoration  _  Backlighting for  larger size  ad-signs

- Landscape outlines _ Signal lighting _ Swimming pool _ Car & motorcycle decorative lighting

- Architectural decorative lighting _ Archway Lighting _ Canopy Lighting  _  Bridge edge lighting

- Amusement park lighting _ theater lighting _ Emergency hallway lighting   _  Building outlines

- Auditorium walkway _ Stairway accent lighting _ Emergency Exit path lighting  _  Cove lighting

- AC240V _ cut intervals :  0.858m       ;     AC120V _  cut intervals :  0.429m

- DC24V  _  cut intervals :  0.143m       ;    DC12V    _ cut intervals  :  0.072m

( Tips, there're printed cutting marks on led neon flex, easy to cut. )

2. Max. run length ?


-  240V /120V  _ one power cable could load 50m in one continous line.

  ( Tips,240V/120V , no need LED transformer, there's one small power convertor  on power cable to convert AC to DC)

- DC24V _ max. run length is 20m powered from one end ; 40m powered from both ends.

- DC12V _ max. run length is 10m powered from one end ; 20m powered from both ends.

  ( Tips, if running too many meters, it will cause the voltage drop, which will be cause the different brightness and shortage life of the LEDs and damage the transformer. )

3. The difference, milky white or colored - PVC skin ?

-  The color with colored PVC skin looks _ deeper.

    ( Tips, Colored PVC skin _ red, blue, green, yellow , orange , pink  )

-  The color with milky white PVC skin looks _ slightly brighter.

4. Minimum bending radius ?

- Domed-shape LED Strip _   R 40mm    ( sideways bending )

- Flat mini LED Strip _   R 20mm    ( sideways bending )

5. Lead time ?

- Normal lead time : around 5-7 working days

6. Minimum order quantity ?

- One meter

7. what is the color tempeture and wavelength of your lights?

• Red: 620nm-625nm
• Orange: 600nm-610nm
• Yellow: 587nm-590nm
• Blue  460nm-465nm
• Green: 515nm-520nm
• cool white: 6000-6500k  7000-7500k
• Natural White: 4000-4500k 4500k-5500k
• Warm whtie: 2500k-2800k  2800k-3200k  2200k-2300k  2800k-3500k

Any questions feel free to contact us, warmly welcome to visit us at anytime, hope we can meet your needs.
