Home > Products > IGBT inverter plasma cutting machine > Whosale New Arrival ! Improved IGBT Inverter DC Air Plasma label Cutter/ cutting machine

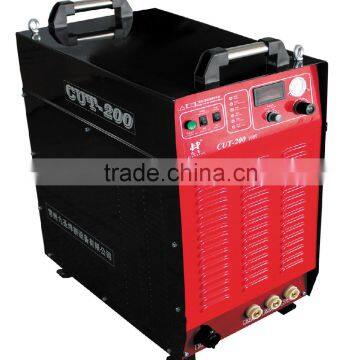

Whosale New Arrival ! Improved IGBT Inverter DC Air Plasma label Cutter/ cutting machine
- shanghai
- T/T Credit Card
You May Like
-
inverter IGBT gantry high speed portable cnc plasma cutting machine for metal cutting
-
inverter plasma arc cutting machine(Module Igbt)
-
best products cutting machine price/plasma cutter price
-
Portable cut Series plasma cutter machine
-
Inverter plasma source / plasma cutting machine
-
Cut 200 IGBT small Inverter DC Air Plasma Cutter /Plasma Cutting Machine
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | Heavth | Model Number | cut-200 | |
| Arc Current | 35-200A | Pulse Frequency | 50 | |
| Pilot Arc Current | 71A | Rated Duty Cycle | 100% | |
| Motor Type | DC Motor | Dimensions | 83*38*83cm | |
| Usage | cut metal materials | Voltage | 50HZ/3~380±10% | |
| Power(W) | 80kw | Certification | 3C,CE,ISO | |
| Warranty | 1 year and a half | After-sales Service Provided | No overseas service provided |
Product Description
Whosale New Arrival ! Improved IGBT Inverter DC Air Plasma label Cutter/ cutting machine
| Name | CUT—100 |
| Rated inputvoltage(V) | 50HZ/3~380±10% |
| Rated input current(A) | 71 |
| DC load voltage(V) | 320 |
| DC voltage(V) | 94—150 |
| DCoperating current(A) | 35—200 |
| Duty cycle(%) | 100 |
Calculating cycle (min) | 60 |
Input pressure (MPa) | 0.7 |
| Gas flow(L/min) | 150 |
| Dimensionslength, width and height(cm) | 83×38×83 |
| Total Weight(kg) | 80 |
| No. | Cutting material | Material thickness (mm) | Pierce height (mm) | Cuttingheight (mm) | Cutting current (A) | Cutting speed (mm/min) |
| 1 | Carbon steel | 3 | 4 | 2.5 | 60 | 3500 |
| 2 | Carbon steel | 4 | 4 | 2.5 | 60 | 3000 |
| 3 | Carbon steel | 5 | 4 | 2.5 | 60 | 1250 |
| 4 | Carbon steel | 6 | 5 | 3 | 60 | 850 |
| 5 | Carbon steel | 5 | 4 | 3 | 90 | 3500 |
| 6 | Carbon steel | 6 | 4 | 3 | 90 | 2500 |
| 7 | Carbon steel | 8 | 6 | 3 | 90 | 1700 |
| 8 | Carbon steel | 10 | 6 | 3 | 90 | 1250 |
| 9 | Carbon steel | 6 | 4 | 3 | 160 | 3300 |
| 10 | Carbon steel | 8 | 6 | 3 | 160 | 2300 |
| 11 | Carbon steel | 10 | 5 | 4 | 160 | 2000 |
| 12 | Carbon steel | 12 | 5 | 4 | 160 | 1800 |
| 13 | Carbon steel | 15 | 6 | 4 | 160 | 1400 |
| 14 | Carbon steel | 10 | 5 | 4 | 180 | 2300 |
| 15 | Carbon steel | 12 | 5 | 4 | 180 | 2000 |
| 16 | Carbon steel | 15 | 6 | 4 | 180 | 1500 |
| 17 | Carbon steel | 20 | 7 | 5 | 200 | 1000 |
| 18 | Carbon steel | 25 | 8 | 6 | 200 | 600 |
| 19 | Carbon steel | 30 | It does not allow perforation, Onlyedgearc cutting | 6 | 200 | 500 |
| 20 | Carbon steel | 40 | 7 | 200 | 300 | |
| 21 | Carbon steel | 50 | 8 | 200 | 150 |
| No. | Cutting material | Material thickness (mm) | Pierce height (mm) | Cuttingheight (mm) | Cutting current (A) | Cutting speed (mm/min) |
| 1 | Stainless steel | 3 | 4 | 2.5 | 60 | 1900 |
| 2 | Stainless steel | 6 | 4 | 3 | 60 | 750 |
| 3 | Stainless steel | 5 | 4 | 3 | 90 | 2600 |
| 4 | Stainless steel | 6 | 4 | 3 | 90 | 1700 |
| 5 | Stainless steel | 10 | 6 | 3 | 90 | 1100 |
| 6 | Stainless steel | 6 | 4 | 3 | 160 | 3000 |
| 7 | Stainless steel | 10 | 5 | 4 | 160 | 1800 |
| 8 | Stainless steel | 12 | 5 | 4 | 160 | 1300 |
| 9 | Stainless steel | 15 | 6 | 4 | 160 | 900 |
| 10 | Stainless steel | 10 | 5 | 4 | 180 | 2600 |
| 11 | Stainless steel | 12 | 5 | 4 | 180 | 2200 |
| 12 | Stainless steel | 15 | 6 | 4 | 180 | 1600 |
| 13 | Stainless steel | 20 | 7 | 5 | 200 | 1000 |
| 14 | Stainless steel | 25 | It does not allow perforation, Onlyedgearc cutting | 6 | 200 | 600 |
| 15 | Stainless steel | 30 | 6 | 200 | 400 | |
| 16 | Aluminum | 3 | 4 | 2.5 | 60 | 2500 |
| 17 | Aluminum | 6 | 4 | 3 | 60 | 900 |
| 18 | Aluminum | 5 | 4 | 3 | 90 | 1900 |
| 19 | Aluminum | 6 | 4 | 3 | 90 | 1500 |
| 20 | Aluminum | 10 | 6 | 3 | 90 | 900 |
| 21 | Aluminum | 6 | 4 | 3 | 160 | 3000 |
| 22 | Aluminum | 10 | 5 | 4 | 160 | 1800 |
| 23 | Aluminum | 12 | 5 | 4 | 160 | 1300 |
| 24 | Aluminum | 15 | 6 | 4 | 160 | 900 |
| 25 | Aluminum | 10 | 5 | 4 | 180 | 2600 |
| 26 | Aluminum | 12 | 5 | 4 | 180 | 2300 |
| 27 | Aluminum | 15 | 6 | 4 | 180 | 1700 |
| 28 | Aluminum | 20 | 7 | 5 | 200 | 1100 |
| 29 | Aluminum | 25 | It does not allow perforation, Onlyedgearc cutting | 6 | 200 | 700 |
| 30 | Aluminum | 30 | 6 | 200 | 400 |
CUT series plasma cutting machine adopts the most advanced power saving technology,IGBT Inverter, Precisionpresetcutting current,Cutting metal materials.
Note:
1, For inclined cut (to play bevel), the angle of the workpiece with the torch must be greater than 45 °
Changzhou Heavth Science& Technogy CO.,LTD.collect research, production, operating as one, strong technical force, advanced production equipment, detection means complete, excellent product quality. Products covering the United States, Japan, Europe, South Korea ...
The company is committed to quality, safety and reliability, reputation first, user supreme principle to provide users with first-class full-service, in a market economy and development, and innovation in business development in order to enhance the technical quality of service standards, develop broader market and dedication to "God" - our customer service!
Welcome new and old customers and friends to visit and call us, to discuss cooperation!
Within 2 hours enquiry will be replied
- One year and a half warranty.
- In addition, we can provide technical guidance.
Q1: Minimum order quantity?
A: For new customers, you can place a trial order to test the product’s quality and the sales in your markets.
Q2: Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Here is our factory address: Branch Chong Park 2-108,Minghuang,Wujin District Changzhou
,Jiangsu,China.
