PT 100 Thermal Resistance/sensor Temperature Made in China
- yantai
- Credit Card
You May Like
-
High Quality Temperature Transmitter
-
High Quality Temperature Transmitter /PT 100 Temprature Sensor Made in China
-
High Quality Temperature Transmitter/temperature Controller
-
Digital 4-20ma Temperature Transmitter Temperature Transmitter With Low Price
-
Capacitive Sensor
-
3051 Wire Capacitive Pressure Sensor
Product Details
| Place of Origin | Shandong, China | Brand Name | OEM | |
| Model Number | pt100 | Usage | Other | |
| Theory | Other | Accuracy | 1 C | |
| Temperature Range | -50 to 70 |
cartons
Product Description

Product description:

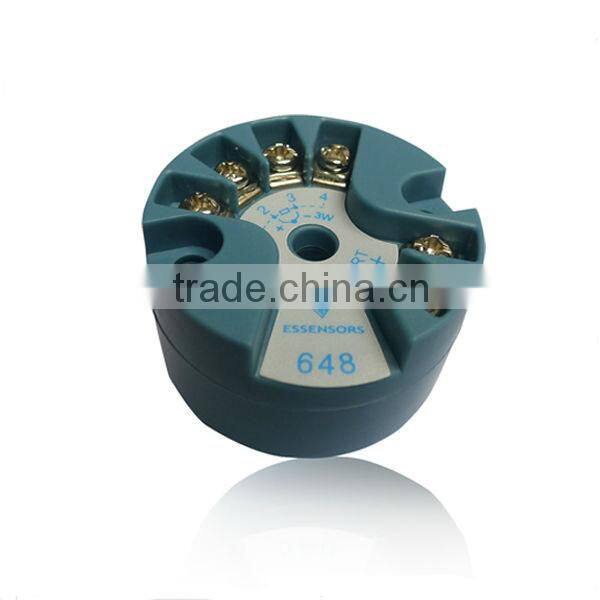

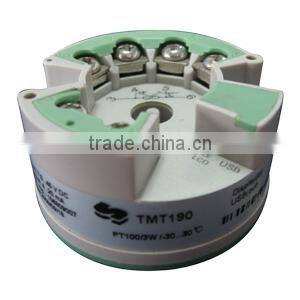

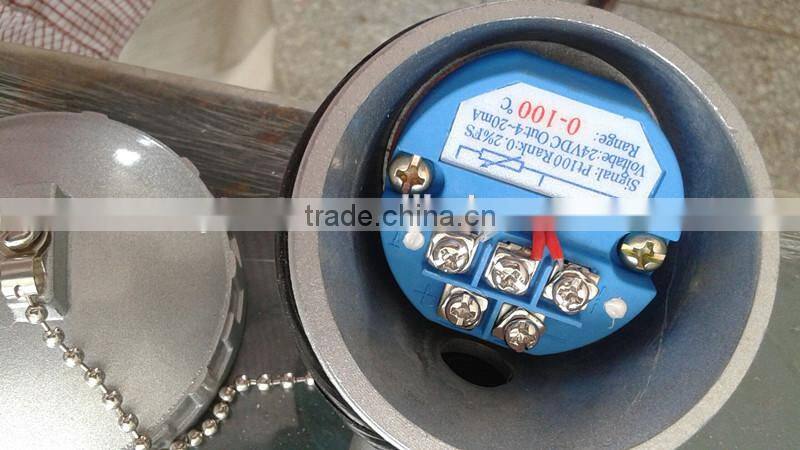

- Smart Temperature head transmitter for converting the input signal into a standard 4 to 20 mA analog output signal
- Input: Resistance thermometer (RTD) Pt100
- Measurement range can be easily adjust through dial switch using a small screw driver
| Input | |
| input signal | B,E,J,K,N,R,S,T type thermocouple; PT50,PT100,PT1000,CU50,CU100 type thermal resistance;resistance,mV voltage input |
| output | |
| output | 4-20mA DC+Hart protocol digital communication(2-wire) |
| max load | max:(Vpower-10V)/0.022A(circuit output) |
| The cold end compensation accuracy | 0.5°C |
| damp | 0-32s |
| current limit | ≤22mA |
| saturation current | low 3.8mA;high 20.6mA |
| current alarm | output is 3.6mA or 22mA when sensor damage or break |
| response time | ≤0.8s |
| data fresh rate | 4 times/S |
| stability | ±0.1%/year |
| accuracy | ±0.1% |
| mechanical vibration | 10…60Hz,0.21mm sine wave |
| Rf interference | IEC6100-4-3,20V/M,80 100MHZ |
| Power supply | |
| voltage supply | U=10V-36VCD |
| electrical isolation | U=2000VAC |
| Environment Condition | |
| working temperature | -40...+85°C |
| keeping temperature | -40…+100°C |
| protection degree | IP66 |
| Working place: |
| Reated product: |
| Cetification: |
Guarantee and after-sale service:
18 months guarantee for whole machine
24 hours technical support by e-mail.

Company Profile
Yantai Auto Instrument Making Company Limited is located in Yantai, a seaside resort in Shandong peninsula with charming natural beauty and convenient transportation. The company is specialized in developing, producing and marketing the process control instruments, possessing the complete ability of automatic system engineering. We mainly produce differential pressure transmitter, pressure transmitter, capacitive pressure sensor, RF admittance controller, tuning fork, level meter, winding pressure transmitter, magnetostrictive level gauge etc.. Which are widely used in the industries of electrical power, petroleum, metallurgy, medicine, food, brewing, textile, and build material etc.. The performance of the company are quickly increased through stable development for more than ten years since 1994. We adopt firstly in Shandong of the certification of ISO9001:2000 for the instrument company by Premier company in July,2001, and we build the quality management system which comply with the international approval. Our company is authorized to be the China Marketing General Agent of ultrasonic range finder by the Bohr company from Germany. We build up the casting department. And we mainly apply the silica sol precision-casting technology to produce many kinds of cast steel such as carbon steel, stainless steel, alloy steel etc. for better service of our instrument products. We meet the challenge of the using requirement of spot instruments relying on abundant technology strength, advanced equipment, super technology,strictly scientific quality management, continuously applying the advanced international technology and improving the products. And we guarantee the high quality and well-deserved reputation of the AUTO products. The director of the company is willing to create a promising picture with the people of vision. Faithfully invite the friends from the foreign and domestic countries to the heaven on earth for business discuss.
