High Speed Swing Beam Cutting Press for Shoe Sole
- Shanghai port
- T/T Credit Card PayPal
You May Like
-
ATOM Shoes Machines Used, Clicking Swing Arm Cutting Press Machine Supplier's Choice
-
Hydraulic Swing Arm Clicking Press Leather Cutting Machine
-
Atom S1 Series 3 Keys (1+3) Cutting Press/Clicking Machine/Clicker Press/Shoe Machine Quality Choice
-
Blister Cutting Machine / Plastic Cutting Machine/CNC Blister Cutting Machine/food Forming Machine
-
100T Cutting Machine for PVC/PET/PE/PS Plastic Tray Packaging
-
Automatic Cutting Machine for Football Panel/ High Efficiency Football Cutting Machine
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Greater | |
| Model Number | GRT-S | After-sales Service Provided | Overseas third-party support available |
Product Description

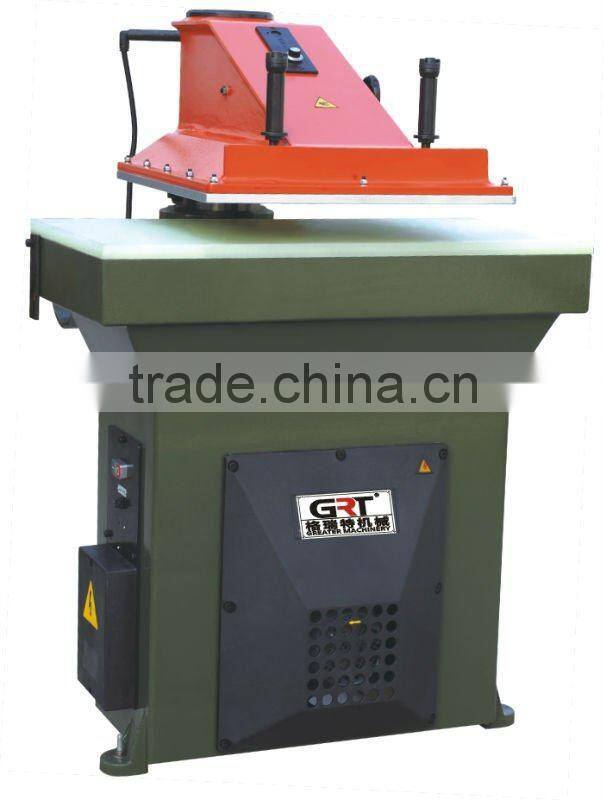

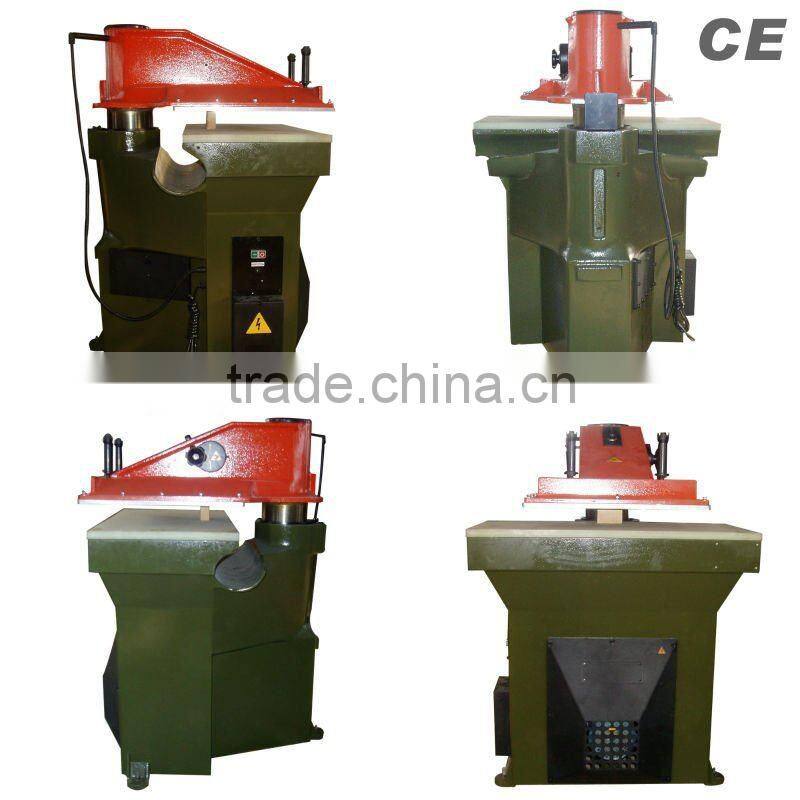

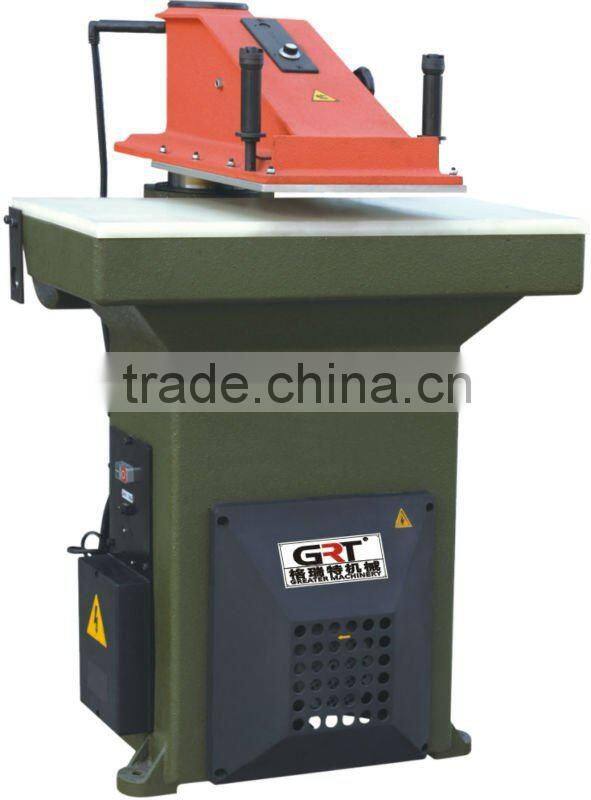

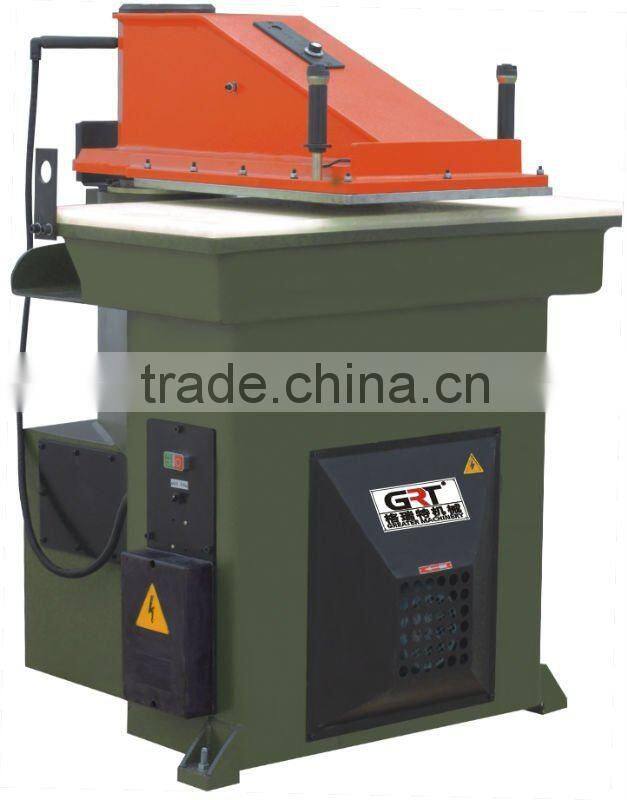

high speed swing beam cutting press for shoe sole
1. The machine is applicable to cutting of various nonmetal materials by cutting die.
2. The oil way system specially designed can conveniently adjust the rocker height.
No adjustment is needed after the height of die cutter is changed.
3. High speed and low energy consumption.
4. To meet the need of frequent replacement of die cutters of different sizes, another
type of machine that can timely output three kinds of cutting force is available for selection.
5. Ductile cast iron body made the machine be used for a very long time and small noise.
Model | GRT-S22 | GRT-S27 | GRT-S27K | GRT-S27L |
Maximum cutting force | 22T | 27T | 27T | 27T |
Table area | 900×430mm | 1000×500mm | 1000×500mm | 1000×500mm |
Swing arm width | 370mm | 370mm | 500mm | 610mm |
Cutting stroke | 90mm | 90mm | 90mm | 90mm |
Motor power | 1.1KW | 1.5KW | 1.5KW | 1.5KW |
Electric Supply Voltage | 3x440/415/400/380 /220V, 50/60 Hz | |||
Single phase 240V/220V, 50/60 Hz | ||||
Packing size | 1050×1000×1500mm | 1150×1200×1500mm | 1150×1200×1500mm | 1150×1200×1500mm |
N.W(with oil) | 650kg | 960Kg | 1050kg | 1200kg |
G.W | 740kg | 1120Kg | 1210kg | 1360kg |
REMARK:The machine will include the cutting board,hydraulic oil,tools and spare parts.

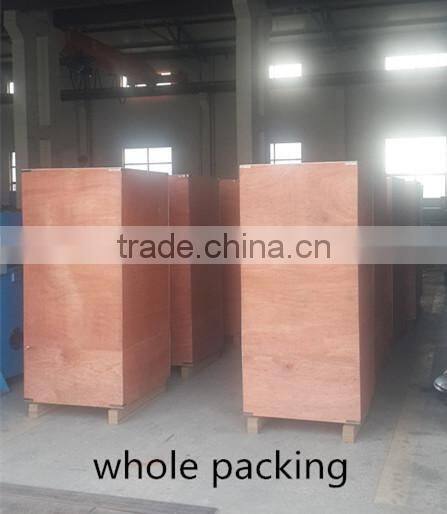

1.If shipping by LCL ,it will be packed by standard wooden case .MIQ is 1 set

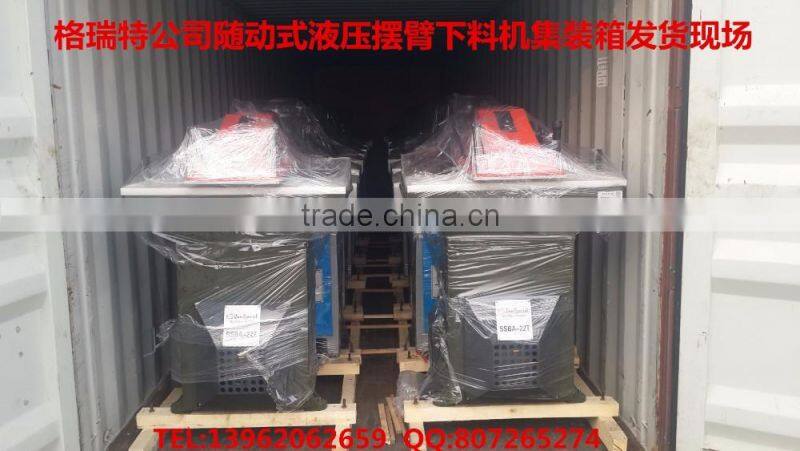

2.If shipping by FCL,it will be packed by wooden pallet .MIQ is 12 sets
