Product Details
| Place of Origin | Jiangsu, China | Brand Name | GRT | |
| Model Number | GSB-2C/20 | After-sales Service Provided | Overseas third-party support available |
Product Description
Specifications

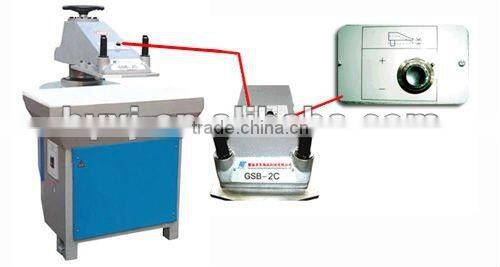

Used to cut up plastic boards, leather, fiber, cotton fiber, paper cartons and other similar materials.GSB-2C/20 Hydraulic Swing Arm Cutting Machine
1) Safe, two-hand trip operation; the sway arm can swing freely. Best operation line of sight
2) Used to cutting plastic boards, leather, fiber, cotton fiber, paper cartons and other similar materials; especially suitable for shoe industry
3) Equipped with lubricating system to lessen wear and prolong service life

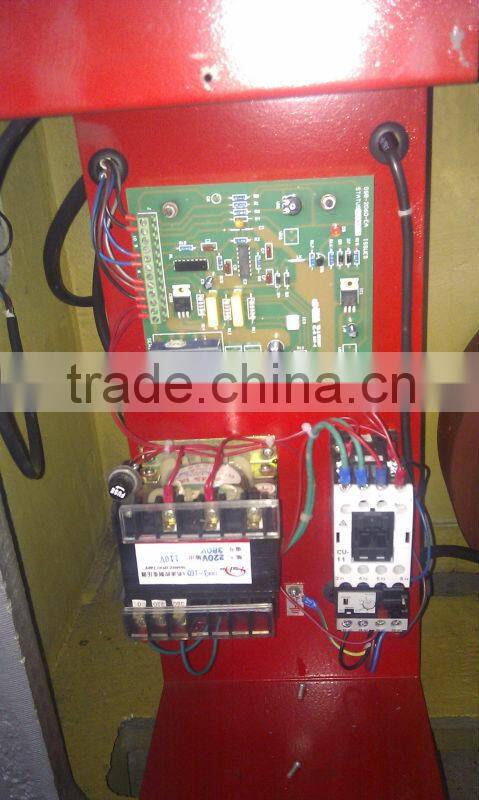

4) Lower limit of stroke is controlled by a time-lapse circuit with high precision, so it can make high-quality shoes
5) People can adjust height of sway arm from table by simple handle, convenient, stable
Model | GSB-2C/20 |
Cutting Force | 20 Tons |
Sway Arm Size | 350x550mm |
Stroke Adjustment | 5-75mm |
Distance Between Upper Table And Lower Table | 65-150mm |
Table Area | 1000x500mm |
Electric Supply Voltage | 3x440/415/400/380/220/200V, 50/60 Hz |
Single phase 240/220V,50/60Hz | |
Motor Power | 1.5kw |
Packing Size(LxWxH) | 1100X1100X1700mm |
Weight | 1000Kg |
Hydraulic oil (46#) | 65 Liters |
REMARK:YOU CAN CHOOSE ANY COLOR FOR THIS MACHINE.
THE MACHINE WILL INCLUDE PP CUTTING BOARD,TOOLS AND SPARE PARTS.
