Home > Products > Military Slip Rings > Large Power Wind Power Slip Ring

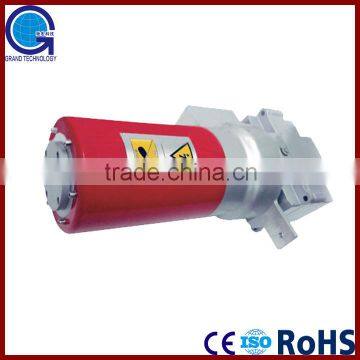

Large Power Wind Power Slip Ring

FOB Price

US$ 5 - 300 / Piece

1 Piece(Min. Order)

Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	Grand
Model Number	WP002

Product Description

Large Power Wind Power Slip Ring

Standard Slip Ring Electrical Data
Spec.	Power	Singal
Circuits No.	2~72 optional as your request
Operating current	standard 5A per circuit or 10A per circuit	2A per circuit
Operating voltage	380 VAC	240VAC/VDC
Insulation Resistance	>=1000mΩ/500VDC	>=500mΩ/500VDC
Lead wire spec.	Awg16 tin plated PTFE insulated or PVC	Awg22 sliver plated PTFE insulated
Lead wire length	Standard 500mm
Dielectric Strength	500VAC@50Hz,60s
Electrical Noise	<10mΩ

Standard Slip Ring Mechanical Data
Operating speed	0~500rmp
Operating temperature	-20℃-+80℃ or -40℃-+80℃
Operating humidity	60% RH or higher
Contact material	Precious metals
Housing material	engineering plastics or aluminum alloy
Operating torque	0.1N/m for 6 rings,+0.03N/m for every 6 rings added
Protection level	IP51 or IP65
Through hole size	25mm~100mm optional as your request
Working life	>80millions revolutions(depends on working speed,environment)
Certificate	CE, RoHS

Capsule slip rings

Through-bore slip rings (Hollow shaft slip ring)

Disc slip rings

Military slip rings

Optical fiber slip rings

RF rotary joints

Solar power and USB slip rings

Wind power slip rings

WIDELY USING OF THE SLIP RINGS
Electrical heating equipment	New energy equipment
Auto cleaning equipment	Intelligent device
Construction equipment	Detection equipment of vehicle
Conveying equipment	Security and protection monitoring
Irrigation equipment	Monitoring aids
Woven equipment	Revolution door
Welding equipment	Snack equipment
Rotating test equipment	Auto vehicle cleaning equipment
Auto camera	Filling equipment
Sanitary installation	Light inspection equipment for medicine
Measuring equipment	Fiberglass machinery
Engineering machinery	Playground equipment
Environmental protection equipment	Mixing Equipment

Company Information

Office

R&D

Part production lines

QC. & Test

Certifications

FAQ

Q1: Are you a factory or a trading company?
A: We are a professional manufactory with High-level R & D team.
Q2: How many types of the slip rings do you have?
A: We can supply all kinds of the slip rings.Such as minitary slip ring,customized sliring, miniature slip ring,fiber optical slip ring,RF rotary joint,HD combined-type, disc slip ring,wind power slip ring,solar power slip ring,through-bore slip ring, etc.
Q3: Can you supply the slip rings with high frequency signals and(or) optical communication signals.
A: Yes, we can supply mixed signals slip rings as your request.
Q4: what's the working life of your slip rings.
A: 30~50 millions revolutions for standard ones, 50~80 millions revolutions for special ones, We also can supply much higher revolutions as your special requirement.
Q5: Do you supply OEM and OBM ?
A: Yes, we supply OEM and OBM.
Q6: What technical data should be provided for our customized slip ring model.
A: If you want to costomize the special slip ring model, you need provid a.operatring speed(RPM) b.the type of installation c.outline size d.channels(the No. of single wire besides cable) e.rated voltage & current for power rings and signal rings f.the signal type and related parameters(very important) g.operating temperature h.IP(sealing requirements)
Q7: How long is your production lead time?
A: It needs 7 to 15 days for standard products, 10 to 20 days for simple customized products, 15 to 40 days for complex customized porducts.
Q8: What's your delivery port?
A: Our delivery port is SHANHAI or Ningbo.
Q9: How do you delivery our goods?
A: Usually small orders can be deliveried by air, big orders can be deliveried by sea. It can be negotiated before delivering.
Remark:
If you have any other question, pls contac us without any hesitation.
