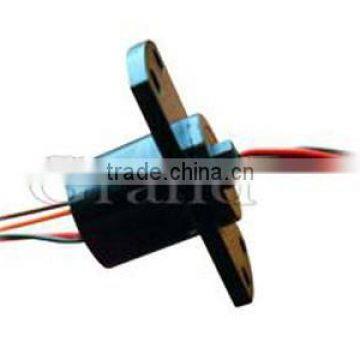

High-speed Specialized Slip Ring : HMT012-6
Negotiable
/ Piece
10 Pieces(Min. Order)
- T/T
You May Like
Product Details
| Place of Origin | China | Brand Name | Grand Technology | |
| Model Number | HMT012-6 |
Product Description
Precision ball bearings and the patented fiber brush design allow operation up to 6,000 rpm. Fiber brush technology offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates. In addition, fiber brushes do not require lubrication and produce virtually no wear debris
Options
No. of circuits Wire length
Operation speed, current &voltage
Flange mounting Protection level (dust and water)
Connector Signal,power and data transmitted or
Housing material combination transmitted
Inner diameter
Housing color
Position of wire outlet
| Electrical Parameters | |
| Circuit | 6 circuits |
| Rated Voltage | 240VAC/240VDC |
| Rated Current | 2A/ring |
| Dielectric Strength | 500VAC@50Hz,60s between each circuit |
| Insulation Resistance | 1000MΩ/500VDC |
| Electrical Noise | <0.01Ω |
| Lead length | Standard 250mm |
| Lead size | AWG26 silver plated TEF |
| Machinery Technology Parameter | |
| Operating Speed | 0-6,000rpm |
| Working Temperature | -40℃ - +80℃ |
| Working Humidity | ≤75% RH |
| Contact Material | Precious Metal |
| Structure Material | Engineering Plastic or metal |
| IP Rating | IP 54 |
| Operational life | ≥200 million cycles(Depends upon working temperature,rotating speed, environment and continuous working time) |
Outline dimesion unit
