Home > Products > Customized slip rings > OEM customized through bore split slip ring
OEM customized through bore split slip ring
US$ 5 - 300
/ Piece
1 Piece(Min. Order)
- Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Grand | |
| Model Number | DS010 |
Product Description

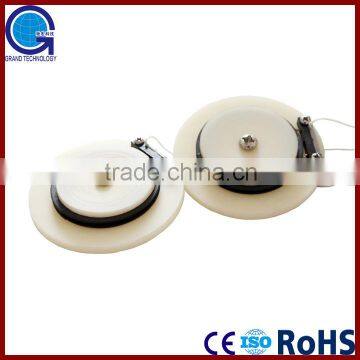

OEM customized through bore split slip ring
| Standard Slip Ring Electrical Data | ||
| Spec. | Power | Singal |
| Circuits No. | 2~72 optional as your request | |
| Operating current | standard 5A per circuit or 10A per circuit | 2A per circuit |
| Operating voltage | 380 VAC | 240VAC/VDC |
| Insulation Resistance | >=1000mΩ/500VDC | >=500mΩ/500VDC |
| Lead wire spec. | Awg16 tin plated PTFE insulated or PVC | Awg22 sliver plated PTFE insulated |
| Lead wire length | Standard 500mm | |
| Dielectric Strength | 500VAC@50Hz,60s | |
| Electrical Noise | <10mΩ | |
| Standard Slip Ring Mechanical Data | ||
| Operating speed | 0~500rmp | |
| Operating temperature | -20℃-+80℃ or -40℃-+80℃ | |
| Operating humidity | 60% RH or higher | |
| Contact material | Precious metals | |
| Housing material | engineering plastics or aluminum alloy | |
| Operating torque | 0.1N/m for 6 rings,+0.03N/m for every 6 rings added | |
| Protection level | IP51 or IP65 | |
| Through hole size | 25mm~100mm optional as your request | |
| Working life | >80millions revolutions(depends on working speed,environment) | |
| Certificate | CE, RoHS | |
Capsule slip rings
Through-bore slip rings (Hollow shaft slip ring)
Disc slip rings
Military slip rings
Optical fiber slip rings
RF rotary joints
Solar power and USB slip rings
Wind power slip rings
| WIDELY USING OF THE SLIP RINGS | |
| Electrical heating equipment | New energy equipment |
| Auto cleaning equipment | Intelligent device |
| Construction equipment | Detection equipment of vehicle |
| Conveying equipment | Security and protection monitoring |
| Irrigation equipment | Monitoring aids |
| Woven equipment | Revolution door |
| Welding equipment | Snack equipment |
| Rotating test equipment | Auto vehicle cleaning equipment |
| Auto camera | Filling equipment |
| Sanitary installation | Light inspection equipment for medicine |
| Measuring equipment | Fiberglass machinery |
| Engineering machinery | Playground equipment |
| Environmental protection equipment | Mixing Equipment |
Company Information
Office
R&D
Part production lines
QC. & Test
Certifications
FAQ
| Q1: Are you a factory or a trading company? | ||||||||||
| A: We are a professional manufactory with High-level R & D team. | ||||||||||
| Q2: How many types of the slip rings do you have? | ||||||||||
| A: We can supply all kinds of the slip rings.Such as minitary slip ring,customized sliring, miniature slip ring,fiber optical slip ring,RF rotary joint,HD combined-type, disc slip ring,wind power slip ring,solar power slip ring,through-bore slip ring, etc. | ||||||||||
| Q3: Can you supply the slip rings with high frequency signals and(or) optical communication signals. | ||||||||||
| A: Yes, we can supply mixed signals slip rings as your request. | ||||||||||
| Q4: what's the working life of your slip rings. | ||||||||||
| A: 30~50 millions revolutions for standard ones, 50~80 millions revolutions for special ones, We also can supply much higher revolutions as your special requirement. | ||||||||||
| Q5: Do you supply OEM and OBM ? | ||||||||||
| A: Yes, we supply OEM and OBM. | ||||||||||
| Q6: What technical data should be provided for our customized slip ring model. | ||||||||||
| A: If you want to costomize the special slip ring model, you need provid a.operatring speed(RPM) b.the type of installation c.outline size d.channels(the No. of single wire besides cable) e.rated voltage & current for power rings and signal rings f.the signal type and related parameters(very important) g.operating temperature h.IP(sealing requirements) | ||||||||||
| Q7: How long is your production lead time? | ||||||||||
| A: It needs 7 to 15 days for standard products, 10 to 20 days for simple customized products, 15 to 40 days for complex customized porducts. | ||||||||||
| Q8: What's your delivery port? | ||||||||||
| A: Our delivery port is SHANHAI or Ningbo. | ||||||||||
| Q9: How do you delivery our goods? | ||||||||||
| A: Usually small orders can be deliveried by air, big orders can be deliveried by sea. It can be negotiated before delivering. | ||||||||||
| Remark: | ||||||||||
| If you have any other question, pls contac us without any hesitation. |
