Laminated Wood for Insulation/transformer
- TIANJIN/QINGDAO/SHANGHAI/NINGBO
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | NEW LIGHT | |
| Model Number | LAMINATED WOOD | Type | Insulation Sheet | |
| Material | Other, epoxy resin and birch wood | Application | High Voltage |
Product Description

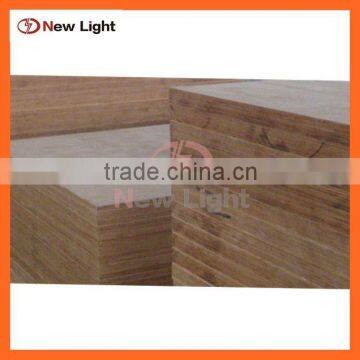

Laminated compressed wood
Laminated wood for transformer
1.Description
The raw materials of electrical laminated wood are high quality birch and willow timbers. After boiling, rotary cutting, drying, these timbers are made to veneers. At last the veneers will be glued with special insulating gluewater and processed under high temperature and pressure.
2.Features and applications
Laminated compressed wood is widely used as insulating and supporting material in transformers and instrument transformers. It has many virtues such as moderate specific gravity, high mechanical properties, easy vacuum drying, easy mechanical processing etc. The dielectric constant of this material is close to transformer oil, so it makes a reasonable insulation match. And it can be used in transformer oil of 105°C for long time.
People usually use this material to make upper/lower pressure pieces, cable supporting beams, limbs, spacer blocks in oil-immersed transformers, and clamps in instrument transformers. It replaced steel plates, insulating paper sheets, epoxy paper sheets, epoxide woven glass fabric lamination in these fields, and cut down the material expenses and weight of transformers.
3.Standard sizes
1000mm x 2000mm
2000mm x 2000mm
1500mm x 3000mm
We can produce plywood parts according to your drawings.
