UL standard PVC insulating sleeving(VG-201)
- 10000000 Meter / Meters per Month
- Tianjin/Ninbo/Shanghai/Qindao
- T/T Credit Card
You May Like
Product Details
| Place of Origin | China | Brand Name | New Light | |
| Model Number | 2715 | Type | Insulation Sleeving | |
| Material | Fiberglass | Application | High Voltage | |
| Rated Voltage | 1.5-4.0kv |
Product Description
Specifications
Specifications1.1.5-7kv fiberglass braided sleeving
2.good dielectric properties
3.well self-extinguishable
pvc electrical insulation sleeving 2715
electrical insulation sleeving
Fiberglass Sleeving

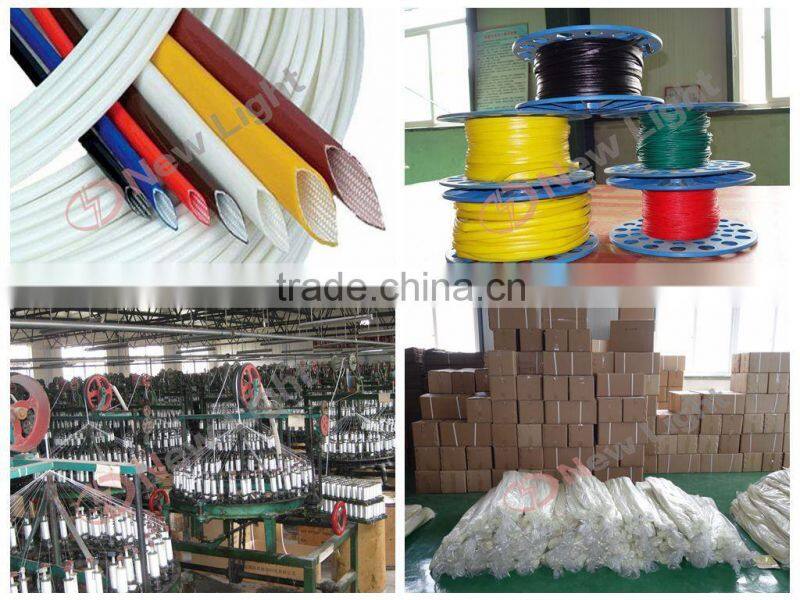

PVC fiberglass sleeving is fiberglass sleeving coated with PVC resin, with very good flexibility and dielectric features, it is widely used as insulating and protection material for motor and electric appliance.
Specifications:
Diameter: 0.5mm---40mm Breakdown
voltage: 1.5KV, 2.5KV, 4KV, 7KV
temperature range: -25 C ~ 130C;
Colour: red line, green line, blue line and all kinds of color
Package:
It could be 1meter per piece, 100meters per roll, or according to clients' request.
With bags or cartons.Other packing is available
Technology Data of 2715 pvc resin fiberglass sleeving
| Inner Diameter (mm) | Wallthickness | |||
| Standard | Tolerance(±) | Min. | Max. | |
| 0.5,0.8 | 0.1 | 0.2 | 0.5 | |
| 1.0,1.5 | 0.15 | 0.2 | 0.75 | |
| 2.0,2.5 | 0.2 | 0.2 | 0.75 | |
| 3 | 0.25 | 0.2 | 0.75 | |
| 3.5,4.0,5.0 | 0.25 | 0.3 | 0.75 | |
| 6 | 0.25 | 0.3 | 1 | |
| 7.0,8.0 | 0.5 | 0.3 | 1 | |
| 9.0,10.0,12.0,14.0,16.0 ,18.0,20.0,22.0,25.0,30.0 | 0.5 | 0.4 | 1.3 | |
| Property | Index | Condition | ||
| Flexibility after heating | PVC layerno crack or spalling | 130±2°C,48hours | ||
| Flexibility at low temperature | PVC layer no crack or spalling | ≤25°C,1hours | ||
| Index of temperature | 105°C | |||
| Breakdown Voltage: | ≥2.5KV (average) | Room temperature | ||
