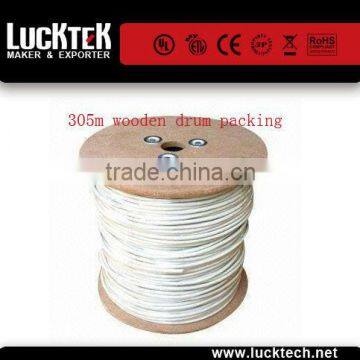

lan cable cat5e cat6 305m

FOB Price

US$ 25 - 60 / Box

100 Boxes(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1, 4 pairs UTP CAT5E
2, CM CMR CMP available
3, UL apploved
4, pass Fluke TEST

lan cable cat5e cat6 305m

1.UTP,STP,FTP and SFTP available

2.PE and PVC Jacket

3.Cat3, ,Cat5 ,Cat5e, Cat6 are available, and Cat5e and Cat6e are already pass

4. Description:

5 . pass fluke test
6 . CMR CM & LSZH

7 . Standard: tia/eia568b. 2, yd/t1019-2001
8 .Conductor: Solid bare copper
9.Rip cord: Per request

Application LAN cable cat5e - UTP:
100 base-t4
100 bsdr-tx
100 vg-anylan
155 mbps ATM
622 mbps ATM

Can choose special structure (for double-jacket, etc.)

Technical Data - Electrical

Frequency MHz	Attenuatuion dB 100 M (Max.)	Next Worst Pair dB (Min.) CAT - 5e	Structural Return Loss (SRL) dB Min.
0.772	1.8	64	N.A.
1.00	2.0	62.3	23
4.00	4.0	53.3	23
8.00	5.8	48.8	23
10.00	6.5	47.3	23
16.00	8.2	44.3	23
20.00	9.3	42.8	23
25.00	10.4	41.3	22
31.25	11.7	39.9	21
62.50	17.0	25.4	18
100.00	22.0	32.3	16

Parametric Characteristics

DC Resistance ® 200C (Max.)	9.38 / 100 M
Capacitance Unbalnace Pair to Ground (Max.)	330 pF / 100 M
Mutual Capacitance (Max.)	5.60 nF / 100 M
Characteristics (mpedance	100 +- 15
Nominal Vetocity of Propagation	66%
Delay Skew (Max.)	45 ns
	5.38 ns / 100 M

jacket	Material			PVC
	Thickness			0.615mm±0.1mm
	O. D .			6.1mm±0.3mm
	Color			According to customer’s requirement
	Elongation			Min.125%
	tensile			Min.1.41kg/m
weight	9.6kgs/305m
package	packing			1000FT/305M per box or as customer’s requirement
Application	100 Base-TX, 100 Base-T4, 100VG-AnyLAN, 1000Base-T, ATM
datapass	160m
Cable printing	CATEGORY 5e FTP CABLE 24AWG 4PAIR 1m ............... As customer order
Terms& condition	MOQ		100BOXES
	OEM		Provide Free box/logo design
	Price Term		FOB, CIF, C&F or other (port is shenzhen)
	Payment Term		T/T
	Delivery time		3-5days
	certificate		CE&ROHS&ISO9001
Temperature Rating		75c
Conductor Resistance		24AWG: 9.38/100M Max.(at 20)
Unbalance Resistance		5 Percent Max
Capacitance		5600pf/100 meters
		330pf/100 meters
