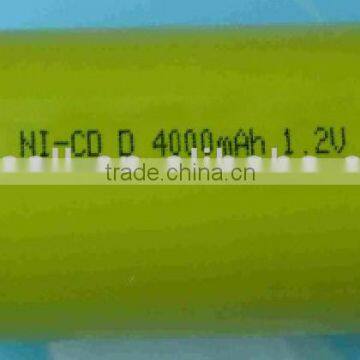

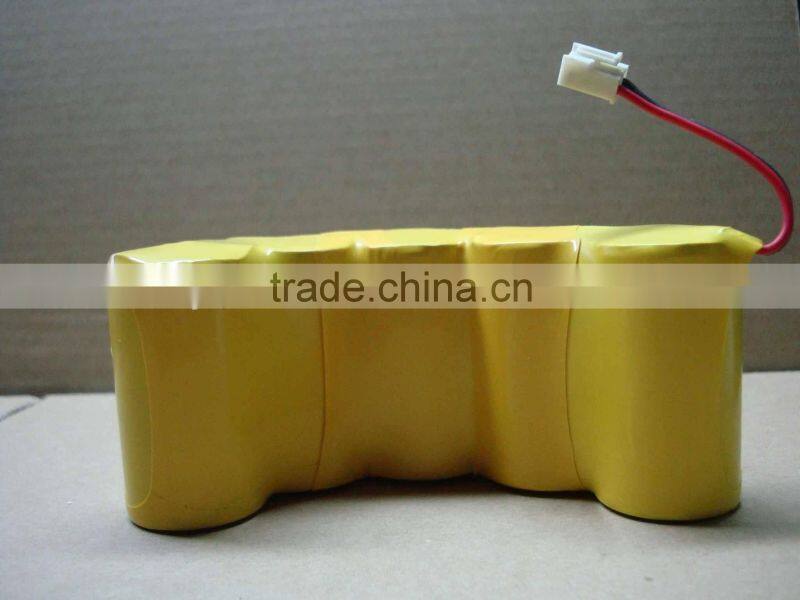

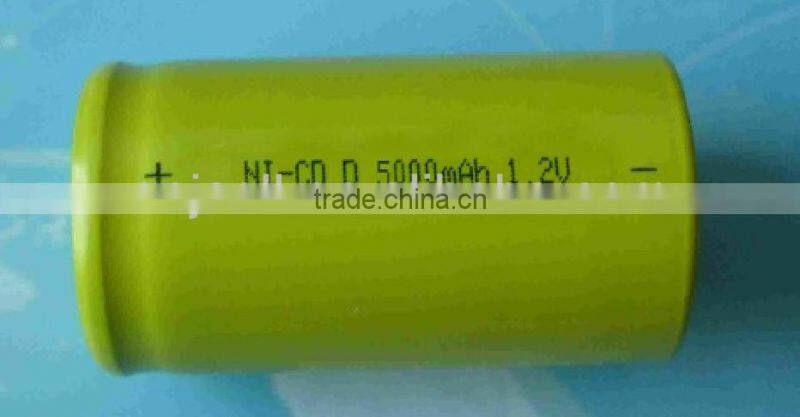

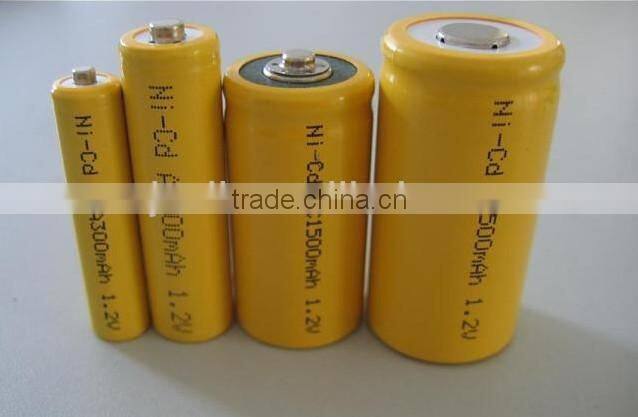

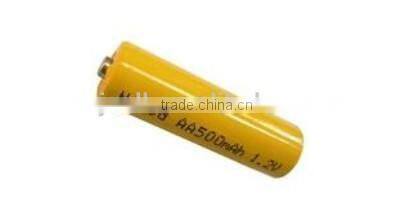

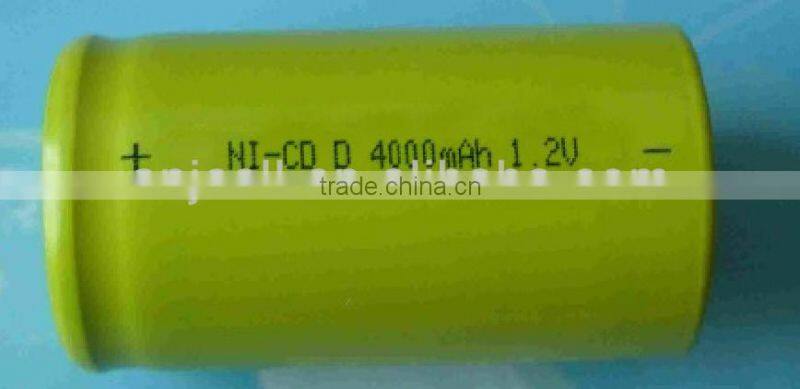

Nickel Cadmium Battery

FOB Price

Negotiable / Piece

1000 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Nominal Voltage 1.2v
Nominal Capacity 700mAh
Minimum Capacity 680mAh
Standard Charge 700mA(0.1C) *16 hrs

TEST CONDITIONS

Unless otherwise stated, tests should be done within one month after receipt under the following conditions:

Ambient Temperature ,Ta : 20±5°Cand

Relative Humidity : 65±20%

Notes:Standard Charge/Discharge Conditions:

Charge :70mA (0.1C) × 16 hrs

Discharge : 140mA (0.2C) to 1.0V/cell

Description	Specification	Conditions
Nominal Voltage	1.2 V
Nominal Capacity	700mAh	Standard Charge/Discharge
Minimum Capacity	680mAh	Standard Charge/Discharge
Standard Charge	70mA(0.1C) × 16 hrs	Ta=0~45°C(see Note 1)
Rapid Charge	700mA(1C) ×1.2 hrs approx. (see Note 2)	Timer CutOff =120% dT/dt= 1~2°C/3min Temp. CutOff = 50°C (122°F) Ta=10~45°C
Trickle Charge	35-70mA(0.05C-0.1C)	Ta=0~45°C
Discharge Cut-off Voltage	1.0V
Maximum Discharging Current	700mA(1C)	Ta= -20°C~50°C
Storage Temperature	-20°C~35°C	Discharged state
Typical Weight(approximate)	17.8 g
