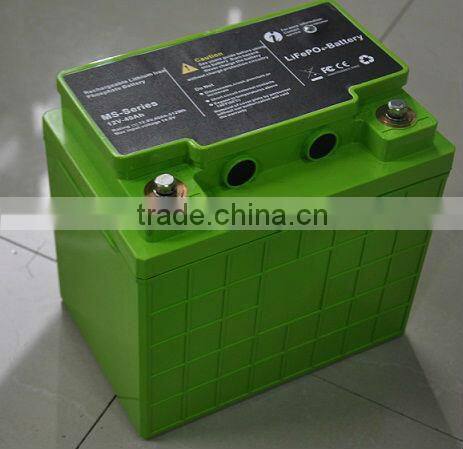

12V Battery Module and BMU

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Features
2800 cycles at 100% DOD Exceptional voltage stability Application voltages from 12V -700V Maintenance free

Specifications		12V-40Ah	12V-110Ah	18V-70Ah
Nominal Module Voltage		12.8 V	12.8 V	19.2 V
Nominal Capacity (C/5, 23°C)		40 Ah	110 Ah	69 Ah
Weight (approximate)		6.5 kg	15.8 kg	14.9 kg
Dimension incl. Terminals LxWxH (mm)		197x131x182	260x172x225	269x148x245
Terminals, Female-Threaded		M6 x 1.0	M8 x 1.25	M8 x 1.25
Specific Energy		79 Wh/kg	89 Wh/kg	89 Wh/kg
Energy Density		110 Wh/l	139 Wh/l	124 Wh/l
Standard Discharging	Max. Continuous Load Current	80 A	150A	120 A
	Peak Load Current (30 sec).	120 A	300 A	200 A
	Cut-off Voltage	10 V	10V	15 V
Charging	Max. Charge Voltage	14.6 V	14.6 V	21.9 V
	Float Voltage	13.8 V	13.8 V	20.7 V
	Charge Time c/2 *	2.5 hrs	2.5 hrs	2.5 hrs
DC internal resistance (max)		15 mΩ	6 mΩ	10 mΩ
