Home > Products > Lithium Ion Batteries > Li-ion Power battery pack car battery battey use for e bike 36V

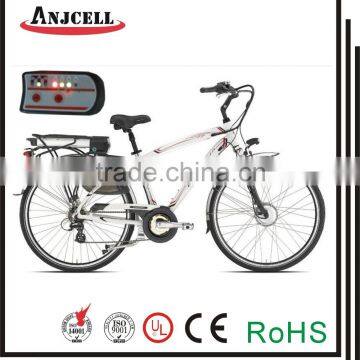

Li-ion Power battery pack car battery battey use for e bike 36V

FOB Price

Negotiable / Set

10 Sets(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Charge mode CC,CV
Charging current 0.2C
Max. charge current 0.5C
Charging cut-off current 0.03C
Charging time 5~6h

No.	Item	General Parameter	Remark
1	Discharge of Peak current	45A
2	Over-disCharge Voltage(cell)	2.8±0.05V
3	Over-disCharge Voltage Protection(Pack)	28V-30V
4	Over-Current Discharge Protection	55±10A
5	Short circuit protection	YES
6	Short circuit protection Release	YES
7	Cell Dimension	Length:390±2mm
		Wide:110±2mm
		Height:80±2mm
8	Weight	≈3.3Kg
9	Operation Temperature Range	Charge0~45°C	60±25%R.H. Bare Cell
9		Discharge10~60°C Temperature protection	60±25%R.H. Bare Cell

10	Storage Temperature Range	1 month -20°C ~ 45°C	60±25%R.H. at the shipment state
		3 month): -20°C ~ 45°C
		1 year -20°C ~ 20°C

No.	Item	General Parameter	Remark
11	Control lock	The total control power supply for the weak control.But the current power supply lock
12	Rated Capacity	(Typ.) 10Ah	0.2C charge and 0.5C discharge for cut-off voltage
12	Rated Capacity	(Min.) 9.8Ah	0.2C charge and 0.5C discharge for cut-off voltage
13	Nominal Voltage	36
14	End of Charge Voltage	42.5V
15	Charge mode	CC,CV
16	Charging current	0.2C
17	Max. charge current	0.5C
18	Charging cut-off current	0.03C
19	Charging time	≈5~6h
20	Over-Charge Voltage Protection(cell)	4.2±0.025V
21	Over-Charge Voltage Protection(Pack)	42.5V
22	Maximum Continuous Discharging Current	15A
