Home > Products > SDG-C series > 60hz Sound-proof C Engine 110KW Generator Set
60hz Sound-proof C Engine 110KW Generator Set
US$ 1 - 2
/ Unit
1 Unit(Min. Order)
- FUZHOU
- T/T
You May Like
Product Details
| Place of Origin | China | Brand Name | SDS | |
| Model Number | SDG-C110ST.1 | Output Type | AC Three Phase | |
| Speed | 1500rpm | Frequency | 60hz | |
| Rated Power | 110kw | Rated Voltage | 380V |
Product Description
Product Description

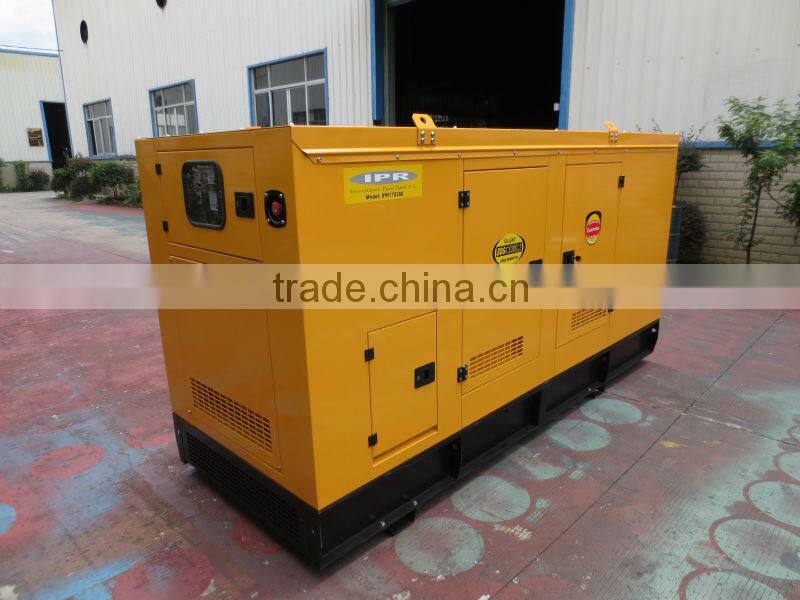

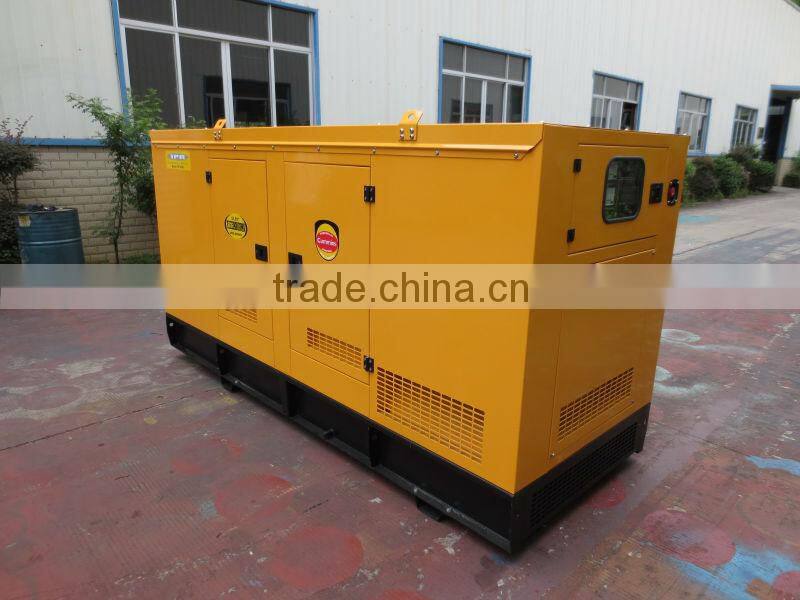

60hz sound-proof C engine 110KW generator set
1)C engine
2)S alternator
3)Deepsea control system
4)ATS is Available
Important Features:
12 months warranty
*Automatic starting system
*C diesel engine + Battery charging alternator
*Factory load bank tested
*Automatically shut off with low oil pressure, high water temp, over-speed, and high oil temperature
*Emergency stop button mounted externally
*Spring mounted vibration isolators
*Critical muffler
*Battery rack and cables
| Model | SDG-C110 | ||
| Phase | Three | Three | |
| Frequency(Hz) | 50 | 60 | |
| Structure Character* | Silent | Silent | |
| Rated Power (KW/KVA) | 110/137.5 | 110/137.5 | |
| Rated voltage(V) | 400 | 400 | |
| Engine Power (KW) | 120 | 130 | |
| Noise level(dBA(@)7m)(zero load~full load)** | 70 | 70 | |
| Fuel Consumption Rate (L/h, under 100% load) | 21 | 21 | |
| Oil Consumption Rate (L/h) | 0.016 | 0.016 | |
| Overall Dimension (mm)(L*W*H)** | 2210*830*1545 | 2210*830*1545 | |
| Net Weight (KG)** | 1300 | 1300 | |
| Engine Specification | |||
| Rated Model | 6BTAA5.9-G2 | 6BTAA5.9-G2 | |
| Rated Power (KW) | 120 | 130 | |
| Engine Speed (rpm) | 1500 | 1800 | |
| Cylinder No. | 6 | 6 | |
| Configuration | Vertical, 4-stroke, Turbocharge, Air-air Intercooling | Vertical, 4-stroke, Turbocharge, Air-air Intercooling | |
| Displacement (L) | 5.9 | 5.9 | |
| Fuel tank capacity(L) | 150 | 150 | |
| Bore×Stroke (MM) | 102*120 | 102*120 | |
| Compression Ratio | 17.5:1 | 17.5:1 | |
| Oil Capacity (L) | 16.4 | 16.4 | |
