Home > Products > SDG-C series > 50hz C Engine 50kva Three Phase Silent Generators
50hz C Engine 50kva Three Phase Silent Generators
US$ 1 - 2
/ Unit
1 Unit(Min. Order)
- FUZHOU
- T/T
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | SDS | |
| Model Number | SDG-C40.1 | Output Type | AC Three Phase | |
| Speed | 1500 | Frequency | 50hz | |
| Rated Power | 50kva | Rated Voltage | 380V |
Product Description

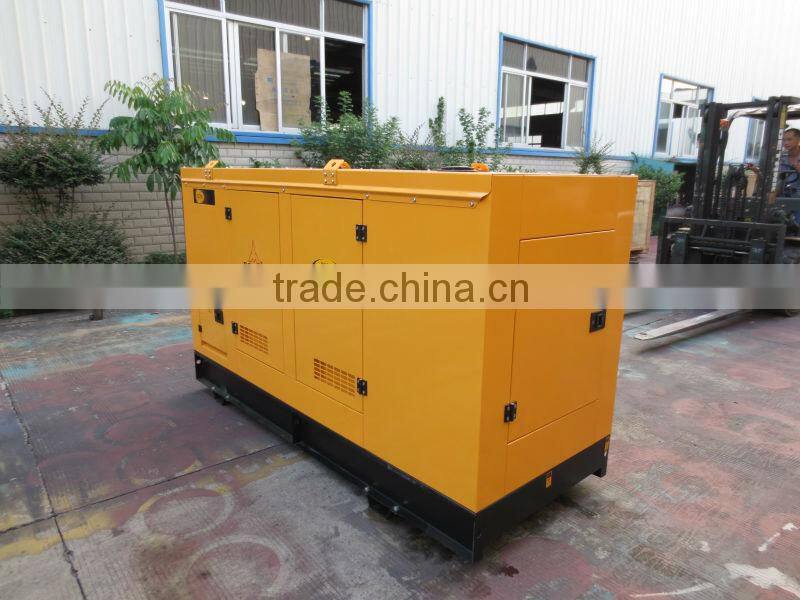

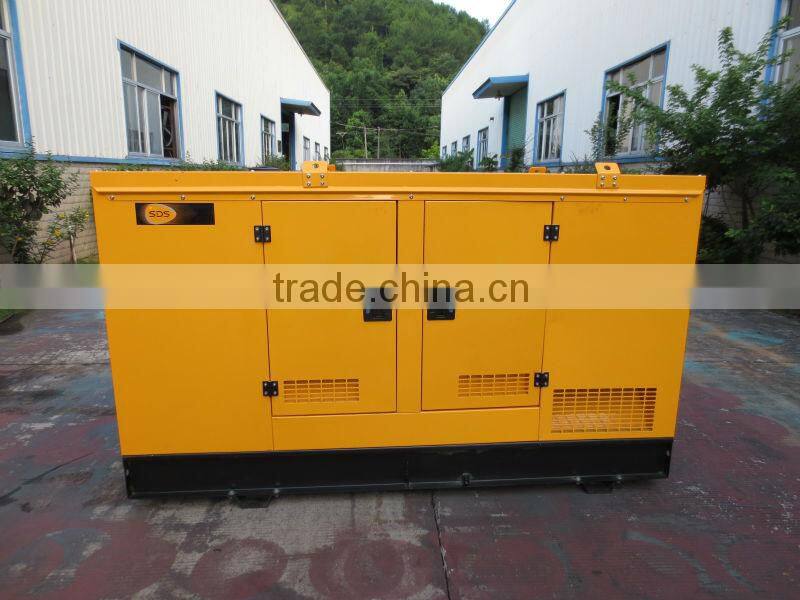

50hz C engine 50kva three phase silent generators
1)1 year/1000 hours warranty
2)C engine
3)S alternator
Important Features:
*1 year/1,000 hours limited warranty
*Automatic starting system
*C diesel engine + Battery charging alternator
*Factory load bank tested
*Automatically shut off with low oil pressure, high water temp, over-speed, and high oil temperature
*Emergency stop button mounted externally
*Spring mounted vibration isolators
*Critical muffler
*Battery rack and cables
| Model | SDG-C40 | |
| Phase | Three | |
| Frequency(Hz) | 50 | |
| Structure Character* | Silent | |
| Rated Power (KW/KVA) | 40/50 | |
| Rated voltage(V) | 400 | |
| Engine Power (KW) | 50 | |
| Noise level(dBA(@)7m)(zero load~full load)** | 70 | |
| Fuel Consumption Rate (L/h, under 100% load) | 8.6 | |
| Oil Consumption Rate (L/h) | 0.1 | |
| Overall Dimension (mm)(L*W*H)** | 1750*750*1330 | |
| Net Weight (KG)** | 840 | |
| Engine Specification | ||
| Rated Model | 4BTA3.9-G2 | |
| Rated Power (KW) | 50 | |
| Engine Speed (rpm) | 1500 | |
| Cylinder No. | 4 | |
| Configuration | Vertical, 4-stroke, Turbocharge, Water-air Intercooling | |
| Displacement (L) | 3.9 | |
| Fuel tank capacity(L) | 70 | |
| Bore×Stroke (MM) | 102*120 | |
| Compression Ratio | 16.5:1 | |
| Oil Capacity (L) | 11 | |
