Durable Fluorocarbon baked wall coating
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| CAS No. | Mixture | Other Names | baking coating | |
| MF | Mixture | EINECS No. | Mixture | |
| Place of Origin | Shanghai, China | Main Raw Material | Other, PVDF resin | |
| Usage | Building Coating, Other, Building Coating, Aluminium etc board | Application Method | Spray | |
| State | Liquid Coating | Brand Name | NH | |
| Model Number | NH-0016 |
Product Description

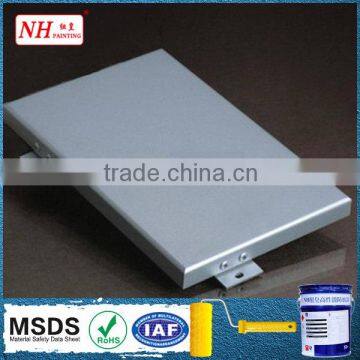

Durable Fluorocarbon baked wall coating
Material: 70% PVDF resin & 30% Acrylic
Features:
- Ecxcellent performance in a variety of climatic conditions
- Ceramic pigmentation for excellent color retention
- Smooth, easy application
- Best batch-to-batch consistency
- Excellent gloss and color retention
- Most beautiful color selection
- Longest life (At least 25 years)
- Most durability
| Layer 1 | Primer | 7.5 ±2.5 μm | PMT 232℃ |
| Layer 2 | Topcoat | 27.5±2.5μm | PMT 232 ℃ |
| Layer 3 | Clear coat | 8-10 μm |
NH meets or exceeds the requirements of AAMA 2605-05, one of the most recognized specifications for Curtain Wall and Panelproducts in the world.
AAMA 2605-05
For Superior Performance Organic Coatings or Architectural Aluminum Extrusion and Panels
Test | Description | Coating Requirments | NH Performance |
| 7.1 | Color Uniformity | Visual Control | Instrument and visually controlled |
| 7.2 | Specular gloss at 60°, ASTM D 523 | Medium and low gloss ranges | Controlled to custom spec±5 units |
| 7.3 | Dry film hardness, ASTM D3363 | F minimum | 2H-4H |
| 7.4 | Film Adhesion(dry,wet and boiling water),crosshatch 1/16 inch squares | No removal between scribed times | No removal |
| 7.5 | Impact resistance (direct) 0.10 inch distortion | No removal of film | No removal of film |
| 7.7.1 | Chemical resiatance (10% muriatic acid) | 15 minutes,no visual changes | Meets or exceeds spec |
| 7.7.2 | Chemical resistance(mortar, alkali) | 24hours, no visual changes | Meets or exceeds spec |
| 7.7.3 | Resistance to acid pollutants (70% nitric acid) | 15minutes, maximum 5ΔE NBS units color change | Meets or exceeds spec |
| 7.7.4 | Detergent resistance | 72 hours, no effect | Meets or exceeds spec |
| 7.8.1 | Humidity resistance ASTM B 2247 | 4000 hours, few # 8 bliters (maximum) | Meets or exceeds spec |
| 7.8.2 | Salt spray resistance ASTM B 117 | 4000 hours, minimum 7 rating on scribe and minimum blister rating of 8(ASTM D 1654) | Meets or exceeds spec |
| 7.9.1.1 | Weathering, color retention, ASTM D 2244 | 10 years,45° South Florida, maximum 5ΔE NBS units color change | Meets or exceeds spec |
| 7.9.1.2 | Weathering, chalk resiatance, ASTM D 4214 | 10 years,45° South Florida, maximum for colors, 6 rating for whites | Meets or exceeds spec |
| 7.9.1.4.1 | Weathering, erosion resistance | 10 years, 45° South Florida, maximum 20% loss | Meets or exceeds spec |
More color selection, please contact us.
Shanghai NH Trade Co., Ltd. is a manufacturer of oil paint with well-equipped testing equipment and strong technical force. Our company was established in 2004 and registered the independent paint brand of "NH New Emperor" in 2008.
Till now, we have strongly enhanced our market in chemical, textile, argriculture, building, biological, automotive field and so on. Our company has the industry's most advanced and sophisticated production facilities. Strict supervision on the quality of our products will make sure you're 100% satisfied with us.
1. Why Choose us?
- 100% factory products
- The delivery is assurable, the price is reasonable for we have our own factory
- All our products is high performance and good quality
- NH has more than 30 years experience in paints / coating , so we could offer professional scheme
2. What's your MOQ (min order quantity) ?
Our MOQ is 1000Kg, and we accept mixed order.
3. Sample is free?
We offer free sample.
You could choose sample board or sample paint
4. Which certificates do you have?
Usually, we have ISO 9001, ISO 12944, SGS , ROHS, CNAS, IAF, MSDS...
We could help you to test the products according to your country's request.
5. Any OEM service?
Yes, we could packing the paints according to your request, add the LOGO.
