Home > Products > Pneumatic Cylinder > SDA MINI Cylinder

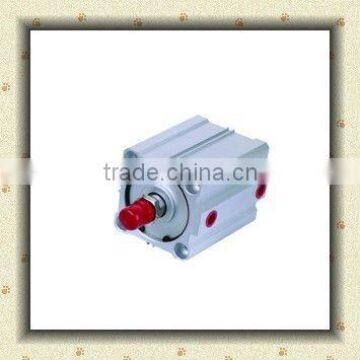

SDA MINI Cylinder
USD $5 - $10
/ Piece
100 Pieces(Min.Order)
- 100000 Piece / Pieces per Month
- Ningbo or Shanghai
- T/T
You May Like
Product Details
| Standard or Nonstandard | Standard | Maximum Stroke | 100mm | |
| Shaft Diameter | 100mm | Place of Origin | Zhejiang, China | |
| Model Number | SDA SDAD CQ2 | Brand Name | Aiphonso |
Product Description
Specifications
1.good craft2.use De and Jp technic to design
3.well ratio of quality and price
4.full sets repair parts
Thin Cylinder
1) Working medium:filtered air
2) Action pattern: double acting, single extrusion acting,single drawing-in acting
3) Operating pressure range: 0.1-1.0MPa(1-9Kgf/cm2)
4)Guarantee pressure:1.5MPa(13.5 Kgf/cm2)
5) Ambient temperature: -5~70°C
6) Operating speed: 30-500mm/s 30-350mm/s 30-250mm/s 100-500mm/s
7) Joint pipe bore: M5×0.8, G1/8"-3/8"
8)In bore range: 12-100mm

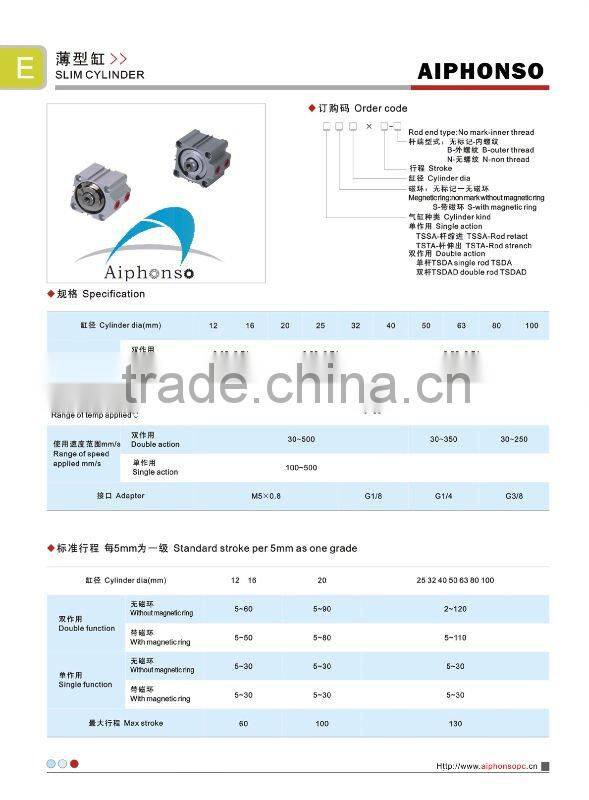

SDA - 20 × 30 - S - B
↓ ↓ ↓ ↓ ↓
Type Bore size Stroke Magnetic Dens type
SSA:Single action extrusion blank:internal thread
STA:Single action drawing-in B:external thread
SDAD:Double-shaft N:no thread
SDA series of compact pneumatic cylinder :easy mounted. can be detected by magnetic switch.
| Bore(mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | |
| Acting type | Double action | ||||||||||
| medium | Air | ||||||||||
| pressure range | 1~ 9Kgf/ cm² | 2~9kgf/cm2 | |||||||||
| MAX pressure | 13.5Kgf / cm² | ||||||||||
| Temperature range | -5~7 0 ºC | ||||||||||
| Speed range | 50~800mm/s | ||||||||||
| Cushion type | fixed cushion | ||||||||||
| Port size | M5*0.8 | 1/8 | 1/4 | 3/8 | |||||||
