SDA Series Pneumatic Standard Pneumatic Piston Cylinder

FOB Price

US$ 20 - 50 / Piece

20 Pieces(Min. Order)

Port NingBO
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Standard or Nonstandard	Standard	Structure	Piston Cylinder
Power	Pneumatic	Body Material	Aluminum
Maximum Stroke	100	Shaft Diameter	50
Place of Origin	Zhejiang, China	Model Number	SDA
Brand Name	AIPHONOSO

Product Description

Specifications

1.good craft
2.use De and Jp technic to design
3.well ratio of quality and price
4.full sets repair parts

Thin Cylinder

1) Working medium:filtered air
2) Action pattern: double acting, single extrusion acting,single drawing-in acting

3) Operating pressure range: 0.1-1.0MPa(1-9Kgf/cm2)
4)Guarantee pressure:1.5MPa(13.5 Kgf/cm2)

5) Ambient temperature: -5~70°C
6) Operating speed: 30-500mm/s 30-350mm/s 30-250mm/s 100-500mm/s
7) Joint pipe bore: M5×0.8, G1/8"-3/8"
8)In bore range: 12-100mm

SDA - 20 × 30 - S - B

↓ ↓ ↓ ↓ ↓

Type Bore size Stroke Magnetic Dens type

SSA:Single action extrusion blank:internal thread

STA:Single action drawing-in B:external thread

SDAD:Double-shaft N:no thread

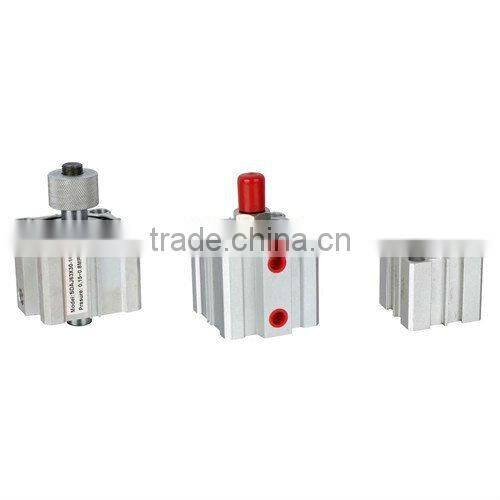

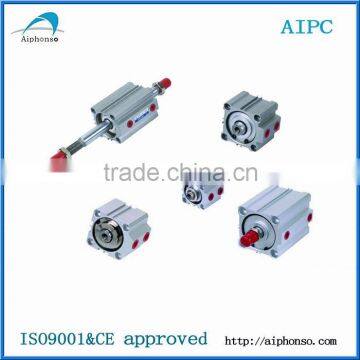

SDA series of compact pneumatic cylinder :easy mounted. can be detected by magnetic switch.

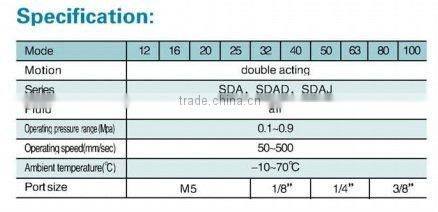

Bore(mm)	12	16	20	25	32	40	50	63	80	100
Acting type	Double action
medium	Air
pressure range	1~ 9Kgf/ cm²						2~9kgf/cm2
MAX pressure	13.5Kgf / cm²
Temperature range	-5~7 0 ºC
Speed range	50~800mm/s
Cushion type	fixed cushion
Port size	M5*0.8				1/8		1/4		3/8
