Model GBC Ball Valve
- Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Pressure Reducing | |
| Pressure | High Pressure | Power | Hydraulic | |
| Material | Brass | Temperature of Media | Normal Temperature | |
| Media | Gas | Place of Origin | Zhejiang, China | |
| Model Number | Model GBC Ball Valve | Brand Name | CNJJWY |
Product Description
Specifications
hydraulic diaphragm valveshand valve hydraulic
O-ring Type Diaphragm Hand Valve

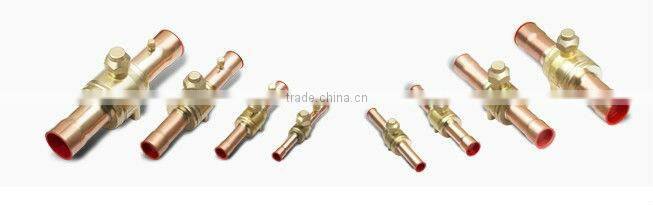

Model GBC Ball Valve
Model GBC Ball Valve
· Model GBC ball valve is a manually regulated shut-off valve, which is applicable to two-direction flow.
· Model GBC ball valve is used on the liquid, air suction and hot vapor piping of the freezer, cold store and air conditioning unit.
· The valve seat of Model GBC ball valve is well sealed with perfect sealing performance.
· Model GBC ball valve is a through-type ball valve with maximum flow rate and wide scope of operating temperature.
· Model GBC ball valve is equipped with a secondary sealing cap and the metal wire could be used to prevent the sealing cap from missing and avoid any mistake operation in maintenance.
Features:
· No pressure drop in flow.
· Only turn 1/4 circle to make valve full open or full close.
· Turning stop for full open or full close.
· Full Open and Full Close mark on top of valve stem.
· Two-direction flow is available.
· Argon arc welded structure.
· Explosion-proof valve stem design.
· Modified PTFE sealing.
· Inside liquid accumulation is avoided.
· Could be mounted on the control panel.
Technical Paramenters:
| Applicable Refrigerant | HCFC and HFC | Max. Operating Pressure | 4.5MPa |
| Applicable Medium Temperature | -40°C~+150°C | Max. Allowable Pressure | 6.5MPa |
| Yearly Leakage of Refrigerant | ≤5g R22/a |
Specification:
| Model | Size | OD | KV | Model | Size | OD | KV |
| GBC-6 | 1/4(Ø6) | Ø14 | 2.0 | GBC-28 | 9/8(Ø28) | Ø25 | 52.0 |
| GBC-10 | 3/8(Ø10) | Ø14 | 5.7 | GBC-35 | 1-3/8(Ø35) | Ø32 | 80.9 |
| GBC-12 | 1/2(Ø12) | Ø14 | 10.6 | GBC-42 | 1-5/8(Ø42) | Ø38 | 80.9 |
| GBC-16 | 5/8(Ø16) | Ø14 | 14.1 | GBC-54 | 2-1/8(Ø54) | Ø50 | 80.9 |
| GBC-18 | 3/4(Ø19) | Ø19 | 20.4 | GBC-67 | 2-5/8(Ø67) | Ø50 | 80.9 |
| GBC-22 | 7/8(Ø22) | Ø19 | 28.2 | GBC-79 | 3-1/8(Ø79) | Ø50 | 80.9 |
Overall Dimension:
| Model | A | B | C | ØD | Ød | E | G | H | ØI | J | K | S | M | Weight |
| GBC-6 | 72 | 67 | 9 | 6.5 | 16 | 15 | 50 | 22 | 29.5 | 30 | 41.5 | 24 | M4 | 230 |
| GBC-10 | 72 | 67 | 10 | 10.1 | 16 | 15 | 50 | 22 | 29.5 | 30 | 41.5 | 24 | M4 | 245 |
| GBC-12 | 82 | 77 | 12 | 12.8 | 16 | 15 | 60 | 22 | 29.5 | 30 | 41.5 | 24 | M4 | 255 |
| GBC-16 | 82 | 77 | 14 | 16.1 | 16 | 15 | 60 | 22 | 29.5 | 30 | 41.5 | 24 | M4 | 260 |
| GBC-18 | 97 | 93 | 14 | 19.1 | 22 | 20.5 | 67 | 30 | 40.5 | 36 | 46.5 | 24 | M4 | 510 |
| GBC-22 | 97 | 93 | 17 | 22.3 | 22 | 20.5 | 67 | 30 | 40.5 | 36 | 46.5 | 24 | M4 | 520 |
| GBC-28 | 109 | 106 | 20 | 28.7 | 28 | 24 | 76 | 38 | 47.5 | 44 | 55.5 | 30 | M4 | 800 |
| GBC-35 | 128.5 | 126.5 | 25 | 35.2 | 35 | 31.5 | 88 | 48 | 62 | 44 | 71.5 | 34 | M6 | 1550 |
| GBC-42 | 143 | 136 | 29 | 41.5 | 42 | 35 | 98 | 55 | 71 | 56 | 86.5 | 42 | M6 | 2300 |
| GBC-54 | 157 | 148 | 34 | 54.2 | 54 | 46 | 101 | 74 | 91 | 56 | 94.5 | 42 | M6 | 3900 |
| GBC-67 | 157 | 148 | 36 | 67.0 | 54 | 46 | 101 | 74 | 91 | 63 | 94.5 | 42 | M6 | 3950 |
| GBC-79 | 157 | 148 | 40 | 79.6 | 54 | 46 | 101 | 74 | 91 | 63 | 94.5 | 42 | M6 | 4030 |
