O-ring Type Diaphragm Hand Valve
US$ 0.1 - 2
/ Piece
1000 Pieces(Min. Order)
- Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Pressure Reducing | |
| Pressure | High Pressure | Power | Hydraulic | |
| Material | Brass | Temperature of Media | Normal Temperature | |
| Media | Gas | Place of Origin | Zhejiang, China | |
| Model Number | KM Diaphragm Hand Valve | Brand Name | CNJJWY |
Product Description
Specifications
hydraulic diaphragm valveshand valve hydraulic

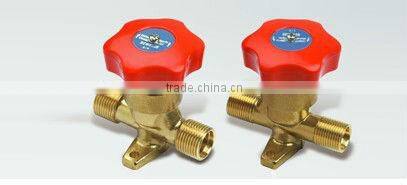

O-ring Type Diaphragm Hand Valve
fast delivery
O-ring Type Diaphragm Hand Valve
· O-ring Type diaphragm hand valve is amanually-operated shutoff valve, which is applicable to one direction flow.
· O-ring Type diaphragm hand valve is used on the liquid, air suction or hot vapor piping of a freezer, cold store and airconditioning unit
Features:
· Equipped with two pieces of stainless steel diaphragm to prevent the valve from leakage within its service life.
· Nylon valve core is used and the valve could be closed with minimum torque.
· It is easy to operate and just turn one circle to make the valve full open or full close.
Technical Parameters:
| Applicable Refrigerant | HCFC and HFC | Scope of Operating Pressure | -0.1MPa~2.1MPa |
| Applicable Medium Temperature | -25°C~+100°C | Air-tight Test Pressure | 3.0MPa |
| Max. Operating Pressure | 2.5MPa | Withstand Test Pressure | 4.5MPa |
Specification:
| Model | Connection | KV |
| NB-1/2 | 1/2-Ring | 1.30 |
| NB-5/8 | 5/8O-Ring | 1.80 |
Ovrrall Dimension:
| Model | A | B | C | Ød | ØD | E | (F) | ØG | H | ØI | S | Thread M | eight(g) |
| NB-1/2 | 40 | 11.0 | 41.3 | 10 | 11.73 | 20 | 65.5 | 6 | 54 | 61 | 23 | 3/4-16UNF | 385 |
| NB-5/8 | 11.5 | 14.50 | 7/8-14UNF | 395 |
