Provide Clay Rotary Dryer for Drying Clay,coal,wood Chips,sawdust, Pellets, Powder -- Sinoder Brand

Specifications

Provide Clay rotary dryer for drying Clay,coal,wood chips,sawdust, pellets, powder -- Sinoder Brand - Sinoder Brand

Sinoder Indutech Machinery offers rotary drum dryers in a variety of sizes to handle a wide range of product and customer requirements.

Sinoder Indutech Machinery will not only engineer the rotary drum dryer for the specific application, but can also design, fabricate, and supply all of the component parts of the dehydration system including the burner, furnace, cyclone, fan, ductwork, conveyors, truck dump stations, feed hoppers, and airlocks.

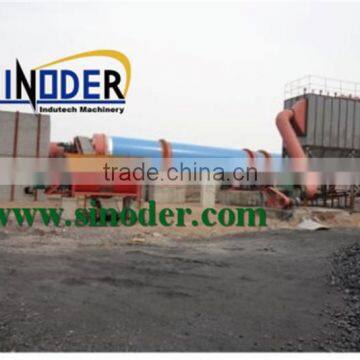

 Rotary drum dryer working site:

Sinoder Indutech Machinery triple-pass rotary drum dryers have many product advantages over other drum dryer designs and have developed a reputation for performance and reliability.

Sinoder Indutech Machinery technology is known, accepted, and proven on six continents. Hundreds of Sinoder Indutech Machinery dehydration systems are currently in service in more than fifty countries and in almost every U.S. state.

Sinoder Indutech Machinery's services extend beyond engineering and fabrication of rotary dryers and dehydration systems.

Test facilities -Our portable test dryer is a total plant in miniature, fitted with the same high-quality, heavy duty components as full-size Sinoder Indutech Machinery rotary drum dryers. With it you can conduct comprehensize tests, drying actual product on-site under prevailing conditions.

 Rotary dryer working site

Characteristics of SINODER INDUTECH MACHINERY's Single Pass Dryer Systems:

• Effectively process products of varying sizes and densities
• Larger single dryer capacities
• Fully insulated with mineral fiber wool for maximum thermal efficiency
• Specially designed three-zone flighting arrangement optimizes retention time and moisture control
• Optimal inlet and outlet temperatures for maximum drying efficiency

 Triple Pass dryer for sand drying in workshop:

Rotary dryer Working principle

The raw materials are send to hopper by belt conveyor or bucket elevator firstly, and are send into feeding end by hopper feeder and feeding pipe. The feeding pipe slope is bigger enough to keep sure that the materials can be sent into dryer smoothly. The dryer cylinder is a rotary one which has some angels with horizonal line. Materials are fed into dryer from one end with heating-carrying agent, and pass through inner cylinder, middle cylinder and outer cylinder to output end and then to final product hopper. The dust carried by heat-carrying agent normally need to be collected by cyclone. To further reduce the dust content, it needs bag filter or wet dust collector. The dried products are sieved to get qualified size as final products.

Rotary dryer parameters

Rotary drum dryer in working site:

1.Waterproof packing with the international export standard by 20ft, 40ft, 40hp container.

2. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.

3. Or as per customer's requirements.

1.Pre-sale services:

1) Selecting equipment type;

2) Designing and fabricating the products in accordance with the special requirements of the clients;

3) Training technical personnel for our clients;

4) Providing construction and technology consultations or working out proper construction schemes for those new, special or difficult projects.

2.Services provided during the sale:

Respect our clients; present the clients with ease, relaxation and a surprise; devote ourselves to improve the total value of our clients.

1) Checking products acceptance ahead of delivery;

2) Introducing the service system to our clients.

3. After-sale services:

Improve the added value of our products, and let the clients free from the using troubles:

1) Assisting the clients preparing for the first construction scheme;

2) Installing and testing the equipments;

3) Training the first-line operators on site;

4) Examining the equipment regularly;

5) Taking the initiatives to eliminate the failure(s) rapidly at site;

We are one leading supplier of mining machinery in China with main products of all kinds of dryer , Rotary dryer, sand dryer, sawdust dryerR, coal dryer, wood chips dryer, gypsum dryer, limestone dryer, iron powder dryer, coconut shell, fly ash dryer, clay dryer., sand making machine and sand washer, belt conveyor, magnetic separator, brick making machine,etc.

Triple Pass rotary dryer in workshop

To choose the appropriate Industrial Drying Machine model for you, we need to know the following information:

1. What's the raw materials(such as sawdust, clay, coal, mine powder) and its size(mm/inch)?

2. What's the infeeding size? Moisture content before and after the drying process?

3. What's the required output dried Capacity(tons per hour or TPH)?

4. What is the heating fuel?

5. Other special requirements.

If you want to know more information about the industrial drying machine and other machinery, pls do not hesitate to contact us.
