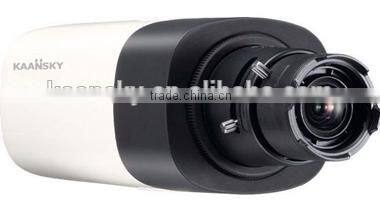

full hd sdi camera with auto iris lens body camera,box camera

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Professional cctv camera manufacturer
CE,FCC,Rohs and ISO9001certification
Accept OEM order
Fast delivery

HD SDI Specification
1.high Definition Mega Pixels HD SDI camera 2.1/3'' Progressive scan CMOS Sensor 3.Max.1920(H)x1080(V) 2Mega Pixels 4.TDN(ICR),DSS,OSD 5.Excellent low light sensitivity 6.3D-DNR,BLC,Digital Zoom 7.2 Mega-Piexls real time with coaxial cable 8.1CH CVBS output support








Model
Image Sensor	1/3'' Panasonic CMOS(MN34041PL)/1/3'' SONY CMOS(IMX122)
Total Pixels	2010(H)x1108(V)=2,227,080(piexl)
Active Pixels	1944(H)x1092(V)=2,122,848(piexl)
Scanning system	Progressive scan
Resolution	Digital:1920x1080p(1080p/30fps)
	More than 1000tvl(1080P)
Min.illumination	Color:1.0 lux,BW:0.5lux
	Color DSS:0.002 lux,BW DSS:0.001lux
S/N Ratio	>50dB(AGC off)
Video Output	HD SDI/CVBS
	Analog:NTSC,PAL(w/o WDR)
Lens	DC(ALC)/Manual(ELC)
Shutter	Auto/Manual(1/30(25)~1/6000)
Sens-up	OFF/x2/x3/x4/x5/x6/x7/x8
AGC	0~20
Day&night	Auto/Color/B&W/EXT
White Bal.	Auto/Auto ext/Preset/Manual
DNR	OFF/LOW/MIDDLE/HIGH
Sharpness	0~10
Mirror	ON/OFF
Flip	ON/OFF
D-WDR	OFF/LOW/MIDDLE/HIGH
Shading	ON/OFF
Privacy	ON(32 points)/OFF
Motion	ON/OFF
Output mode	1080p
Frame rate	25fps/30fps
CVBS	NTSC/PAL
Language	ENG/CHN
Power	DC 12V±10%
Video Output(HD SDI)	MMCX Connector
Storage Temperature	-20°C~+60°C(Humidity:0%RH-E4790%RH)
