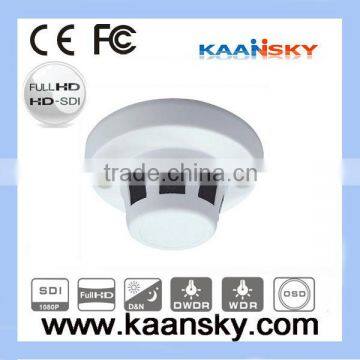

Smoke Detecor SDI MINI Camera 2Megapixel 1080P with Pinhole Lens 3.7mm

FOB Price

USD $10 - $80 / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Features:

High Definition Mega Pixels HS-SDI Camera

1/3" Progressive scan CMOS Sensor

Max. 1920(H)*1080(V) 2 Mega Pixels

TDN(ICR), DSS, OSD

Excellent low light sensitivty (0.05Lux, B/W)

3D-DNR, BLC, Digital Zoom(Max.10x)

2Mega-pixels real time with coaxial cable

1CH CVBS output support

ITEM		S06-SDI2002C
Image Sensor		1/3" Panasonic COMS (MN34041PL)
DSP		Eyenix (EN773A)
Image Resolution		PAL: 25fps@1080P(1920×1080); NTSC: 30fps@1080P(1920×1080)
Effective Pixels		1920(H) x 1080 (V)
TV System		PAL/NTSC
Electronic Shutter		Auto / Manual / Flicker
Usable Illumination		Color: 1.0Lux/F1. 4, B/W: 0.5Lux /F1. 4; 0Lux /F1.4(IR on)
S/N Ratio		≥50dB
Scanning System		Progressive Scan
Video Output Mode		1CH HD-SDI High-definition Video (1080P or 720P)
Video Output Level		HD-SDI /(1.0 Vp-p 75Ω , Composite)
Focus Length		2.8-12mm
Lens Type		Manual
Pixels		2M Pixels
Auto Iris Support		NO
Infrared LED		5X24 PCS
Infrared Distance		20M
IR Status		Under 10 Lux by CDS
IR Power On		CDS Auto Control
Day/Night		Auto (ICR) / Color / B&W
OSD Menu Language		English,Simple Chinese, Traditional Chinese, Japanese, Korea
Wide Dynamic Range		WDR
Defog		YES
Privacy Masking		8 Areas
Digital Zoom		X8
Sense Up		X8
Picture Adjustment		YES, Mirror / Flip / Brightness / Sharpness
IR Cut Filter		YES
Operation Temperature		-10 °C ~ +50 °C RH95% Max
Storage Temperature		-20 °C ~ +60 °C RH95% Max
Power Source		DC12V±10%, 500mA

More Options:

Why choose KAANSKY:

Professional manufacturer

Shenzhen Kaansky Technology Co.,Ltd is a professional manufacturer of CCTV camera.

The factory address is 2rd Floor,Block A,Yuandong Industrial Zone,Xuegang South Road,Bantian,Buji,Shenzhen,China.

Found in the year of 2006, which has more than 6 years ODEM and OEM experience.

Certificates:

The factory runs strictly according to ISO9001 and most products have got CE, FCC, CCC, ROHS, and IP66.

And most of the staff have more than 5 years operation experience.

Great factory is the essurance of high quality.

Warranty
We provide 2 years warranty for all of our products.
