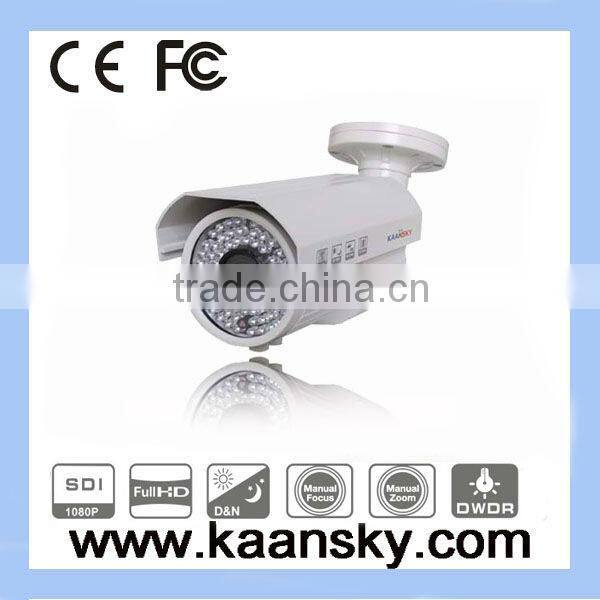

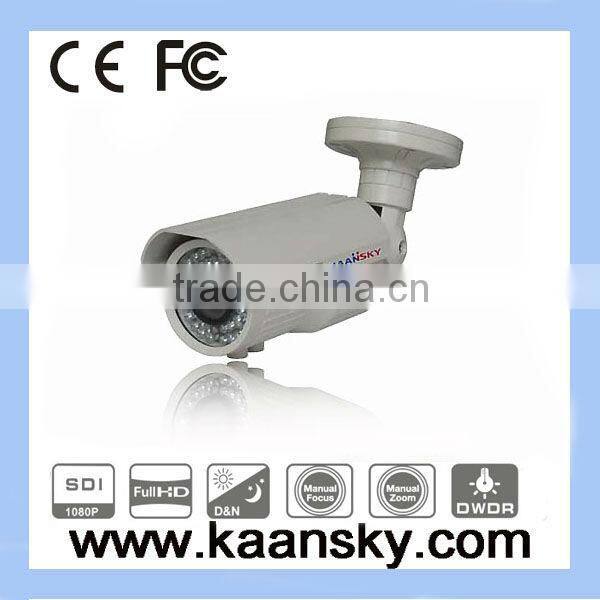

KST-F907 Day&Night 1/3" Sony 1080P HD SDI Camera

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	KAANSKY
Model Number	KST-F907-SDI20	Type	Digital Camera
Style	Bullet Camera	Sensor	Other, CMOS, PANASONIC mn34041PL/SONY IMX122 Sensor1/3
Technology	Other, HD SDI	Special Features	Waterproof / Weatherproof

1.HD SDI Camera
2.Manufacturer
3.Have CE,FCC,ROHS certification
4.3-7workdays for samples
5.Two years warranty

Features:

1. High Definition Mega Pixels HD-SDI Camera

2. 1/3" Progressive scan CMOS Sensor

3. Max.1920(H)X1080(V) 2 Megapixels

4. TDN(ICR),DSS,OSD,DWDR

5. Excellent low light sensitivity(0.05Lux,B/W)

6. 3D-DNR,BLC,PIP

7. 2 Megapixels real time with coacial cable

8. 1CH CVBS output support

9. Dual glass,no IR diffusion and fog

10. IP66,outdoor installation

11. IR Distance 50-60M

12. Adopting 72pcs/5mm IR Leds

13. Standard lens:2.8-12mm lens;(4-9mm,9-22mm optional)

ITEM		F907-SDI2001
Imaging Sensor		1/3” Panasonic CMOS(MN34041PL)/ 1/3" SONY CMOS(IMX122)
Total Pixels		2010(H) x 1108(V) = 2,227,080 (pixel)
Active pixels		1944(H) x 1092(V) = 2,122,848 (pixel)
Scanning system		Progressive Scan
Resolution		Digital ; 1920x1080p(1080p/30fps) , 1280x720p(720p/60fps) More than 1000 TVL(1080p)

Min. illumination		Color : 1.0 lux , BW : 0.5lux Color DSS : 0.002 lux , BW DSS : 0.001 lux

S/N Ratio		More than 50dB (AGC off)
Video Output		HD-SDI Analog : NTSC, PAL(w/o WDR)

LENS		DC(ALC)/Manual(ELC)
BRIGHTNESS		0 ~ 20
SHUTTER		AUTO/MANUAL(1/30(25)~1/6000)
SENS-UP		OFF/x2/x3/x4/x5/x6/x7/x8
AGC		0 ~ 20
BACKLIGHT		OFF/HLC/BLC/WDR
DAY&NIGHT		AUTO/COLOR/B&W/EXT.
WHITE BAL.		AUTO/AUTOext/PRESET/MANUAL
DNR		OFF/LOW/MIDDLE/HIGH
SHARPNESS		0 ~ 10
MIRROR		ON/OFF
FLIP		ON/OFF
D-WDR		OFF/LOW/MIDDLE/HIGH
SHADING		ON/OFF
PRIVACY		ON(32 Points)/OFF
MOTION		ON/OFF
OUTPUT MODE		720P/1080P
FRAME RATE		25 FPS/30 FPS
CVBS		NTSC/PAL
LANGUAGE		ENG/CHN
Power		DC12V±10%
Video Output(HD-SDI)		MMCX Connector
Storage Temperature		-20°C ~ +60°C (Humidity : 0%RH ~ 90%RH)
Dimension (H x V x T)		38mm x 38mm x 1.2mm
