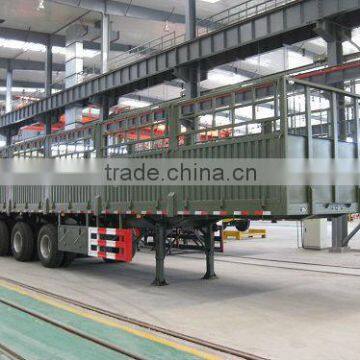

Main Description

Overall Dimension

13000mm*2495mm*3720mm

Box Body Dimension

12780mm*2300mm*2000mm(600mm side wall+200mm spacing

+1200mm fence)

Tare Weight

8800kg

Pay Load

40ton, 50ton

King Pin Setting

1460mm, 1220mm

Rear Overhang

1930mm, 2370mm

Track

1840mm

Loading surface height

1600mm

Wheel base

7000mm+1305mm+1305mm, 6800mm+1305mm+1305mm

Box Body

Floor steel sheet 2.5mm, side wall steel sheet 1.2mm

Running Gear

Suspension

Tri-axle mechanical suspension with 11-pcs leaf spring

Rims & Tires

Rim 8.0-20; Tire 11.00R20, 12units

Axles

CNHTC axle, load capacity 13T

Brakes

Dual lines pneumatic brake system, WABCO Emergency Relay Valve; T30/30+T30 air chamber; parking brake

Under Frame

Main Beam

I shape, Mild Alloy (16Mn) by Automatic submerged arc welding.

Cross Beam

Mild Alloy Q235

King Pin

Size: 50# (2'') or 90#(3.5’’); Type: welded or assembled

Landing Gear

Single side operation or double side operation, Static capacity 30Ton

Appendix

1 tool box, length 1.5m

Electrical & Paint

Lights & Reflectors

Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light

Wiring

24V, 6 lines

Air/Elec. Connector

ISO standard air connector, 24V 7 pin plug socket

Paint

Color upon request
