Home > Products > Bottle blowing machine > PET Bottle Blow Molding Machine GS9B
PET Bottle Blow Molding Machine GS9B
- Shanghai
- Credit Card PayPal
You May Like
Product Details
| Condition | New | Application | Bottle | |
| Plastic Processed | PET | Blow Moulding Type | Stretch Blow Moulding | |
| Automatic | Yes | Place of Origin | Shanghai, China | |
| Brand Name | GS, GS | Model Number | GS9B, GS9B heat-resistant bottle blowing | |
| Certification | ISO9001-2000 |
Product Description
Specifications
1. Capacity: 300-500pcs/hr (based on 5000ml)2. Max volume of product: 10 liters

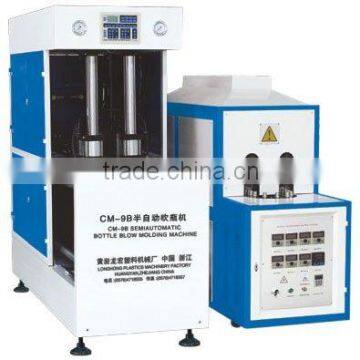

Semiauto PET Bottle Blow Molding Machine
GS9B semiautomatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 5000-10000ml. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc.
Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
The machine can be operated in the step-by-step mode and the semi- auto mode.
The machine is small with low investment, easy and safe to operate by one person.
SPECIFICATION:
Main parameter: | ||
Model | GS9B | |
Container | Product material | PET |
Volume | 5L-10L | |
Theoretical output | 300-500PCS/H | |
Preform length | 15mm-460mm | |
Preform inner diameter | Φ15mm-200mm | |
Moulding | Max.mould plate Dimenstion(L x W) | 470x500mm |
Max.mould thickness | 370mm | |
Clamping force | 100KN | |
Mould opening stroke | 350mm | |
Machine size and weight | Main machine (L x W x H) | 193*72*183cm |
Main machine weight | 800Kg | |
Heater (L x W x H) | 187*63*145cm | |
Heater weight | 250Kg | |
Power | 17.5kw | |
