Plastic Bottle Blow Molding Machine GS9A
- SHANGHAI
- Credit Card PayPal
You May Like
Product Details
| Condition | New | Application | Bottle | |
| Plastic Processed | PET | Blow Moulding Type | Stretch Blow Moulding | |
| Automatic | Yes | Place of Origin | Shanghai, China | |
| Brand Name | GS, GS | Model Number | GS9A, GS9A heat-resistant bottle blowing | |
| Certification | ISO9001-2000 |
Product Description
Specifications
GS9A heat-resistant bottle blow molding machines are suitable for producing PET plastic bottlesPlastic Bottle Blow Molding Machine

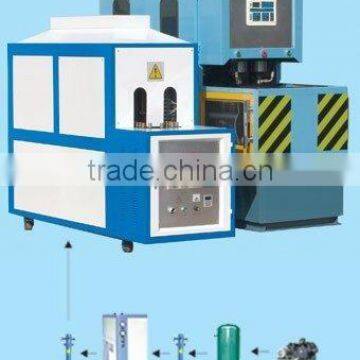

GS9A semiautomatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 0.1L-5L. It is widely used to produce the carbonated bottle ,mineral water,carbonated drink bottle.
Technique Parameter of blow molding machine:
Main parameter: | ||
Model | GS9A | |
Container | Product material | PET |
Volume | 0.1L-5L | |
Theoretical output | 300-800PCS/H | |
Preform length | 15mm-400mm | |
Preform inner diameter | Φ10mm-160mm | |
Moulding | Max.mould plate Dimenstion(L x W) | 400x460mm |
Max.mould thickness | 300mm | |
Clamping force | 65KN | |
Mould opening stroke | 28mm | |
Machine size and weight | Main machine (L x W x H) | 175*67*186cm |
Main machine weight | 600Kg | |
Heater (L x W x H) | 187*63*145cm | |
Heater weight | 250Kg | |
Power | 17.5kw | |
