Home > Products > 5 encoder > G20E Series Ring Type Encoder Miniature and Highly Accurate Contact Type Encoder

G20E Series Ring Type Encoder Miniature and Highly Accurate Contact Type Encoder

FOB Price

US$ 0.01 - 0.67 / Piece

1000 Pieces(Min. Order)

Port shenzhen
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	Howang
Model Number	G20E

Product Description

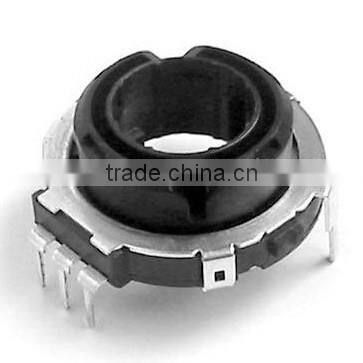

G20E series Ring Type Encoder Miniature and highly accurate contact type encoder

Introdution

1. 20mm Diameter Ring type rotary encoder

2. Incremental type

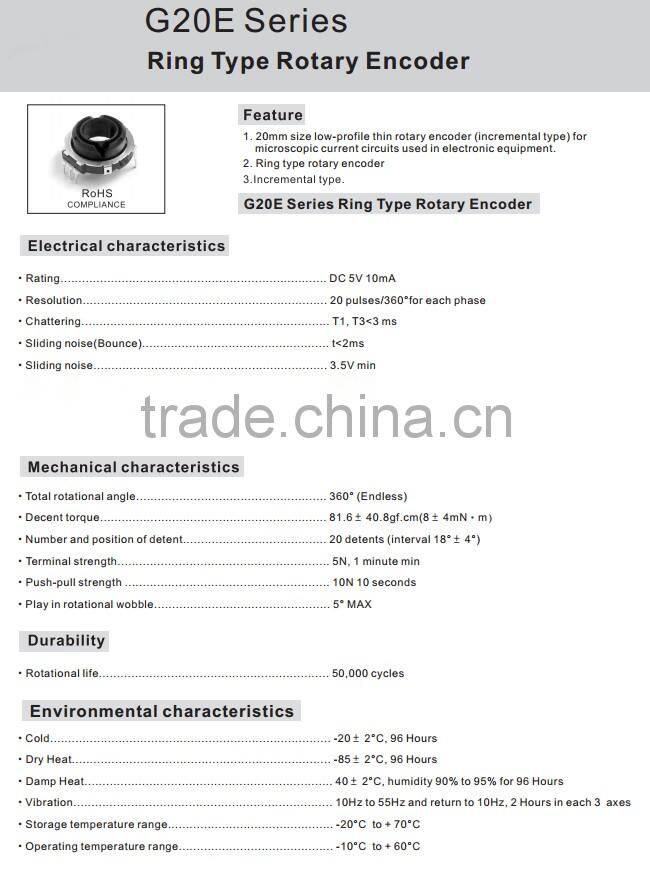

Electrical characterisitcs
Rating	DC 5V 10mA
Resolution	20 pulses/360°for each phase
Chattering	T1, T3<3 ms
Sliding noise(Bounce)	t<2ms
Sliding noise	3.5V min
Phase difference	T1,T3>3ms
Insulation resistance	Between individual terminals and bushing: 100 MΩ min.
Dielectric strength	100V A.C, 1 minute min
Mechanical characterisitcs
Total rotational angle	360° (Endless)
Detent torque	81.6 ± 40.8gf.cm(8 ± 4mNm)
Number and position of detent	20 detents (interval 18° ± 4°)
Terminal strength	5N, 1 minute min
Push-pull strength	10N 10 seconds
Play in rotational wobble	5° MAX
Durability
Rotational life	50,000 cycles
Environmental characteristics
Cold	-20 ± 2°C, 96 Hours
Dry Heat	-85 ± 2°C, 96 Hours
Damp Heat	40 ± 2°C, humidity 90% to 95% for 96 Hours
Vibration	10Hz to 55Hz and return to 10Hz, 2 Hours in each 3 axes
Storage temperature range	-20°C to + 70°C
Operating temperature range	-10°C to + 60°C

FAQ

Q: Can you provide us samples, is it free or need to pay?

A: If you do not need to print your logo or other artwork on the products, we will not charge any cost, just tell us your freight collect account like FedEx,DHL,TNT, if you do not have we need to charge express fee properly.

Q: How to deliver?

A: By sea or by air or courier like UPS, DHL, FedEx.

Q: What’s your payment term?

A: T/T or Western Union

30% deposit, the 70% balance before shipment.

Q: Where is your factory located, is it convenient to visit?

A: Our factory located in Huizhou, Guangdong. It 's just 10 min drive away from our Shenzhen office.

Assembly Department

	The 1st manufacturing section Production : F-091 Series ; F-092 Series; F-093 Series; F-094 Series; F-095 Series; F-24K Series; F-081 Series; F-082 Series; F-131K Series; P270 Series; P160 Series; JM10K Series; JN10K Series; JP10K Series; FSR08 Series; FSR10 Series; J08K Series Rotary Potentiometer, Switch and so on Monthly Output: 12,000,000 pcs Typical Application: Mixing consoles and electronic musical instruments, DVD player/recorders in car, game consoles and flat panel TV, electronic toy controllers ,Remote controllers for audio system and TVS and so on.

	The 2rd manufacturing section: Production: 1.F-08E Series F-11E Series; F-12E Series; F-16E Series rotary encoder and so on 2. Fxx92 Series; F05G Series; F035G Series; Fxx31 Series; Fxx05 Series; Fxx06 Series; Fxx43 Series; Fxx45 Series; Fxx2G Series; F10008GP Series; Fxx46 Series slide potentiometer and so on 3. FSE1001, FSE1101, FSE2801, FSE07 sensor potentiometer and so on Monthly Output: 5,000,000 pcs Typical Application: 1. Mixing consoles, DVD play / Recorder, Various AV equipment, Navigation systems in car and so on 2. Electronic musical instruments, Dimmer .protable audio and various audio equipment and so on 3. Automobile accessories.

Automatic Assembling Machines

Stable and consistent quality

High efficiency

Low defective rate

Quality Certificates

Quality Certificates & Environment Guideline HOWANG holdings has passed TS16949,ISO9001,ISO14001,UL,CQC

Contact

shippment & payment:

we have our own manufacture factory and the experrienced manufacture team in Huizhou.

we will give you the lower price and the first-class quality.

This quotation doesn't include the shipping charge.
1. All the price are Ex-factory price without retail package.
2. Payment: T/T , Bank Transfer, Western Union and Paypal.
3. Delivery time: 4-7 working days after receipt of payment.
4. Valid period of the offer: 30 days

Delivery time: 12 days

Payment terms: 30% deposit before production, 70% balance before shipment.
