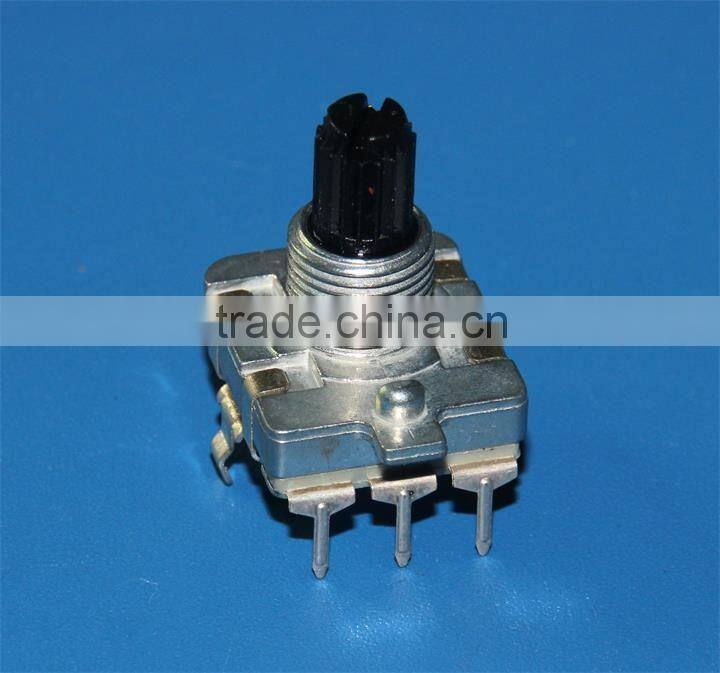

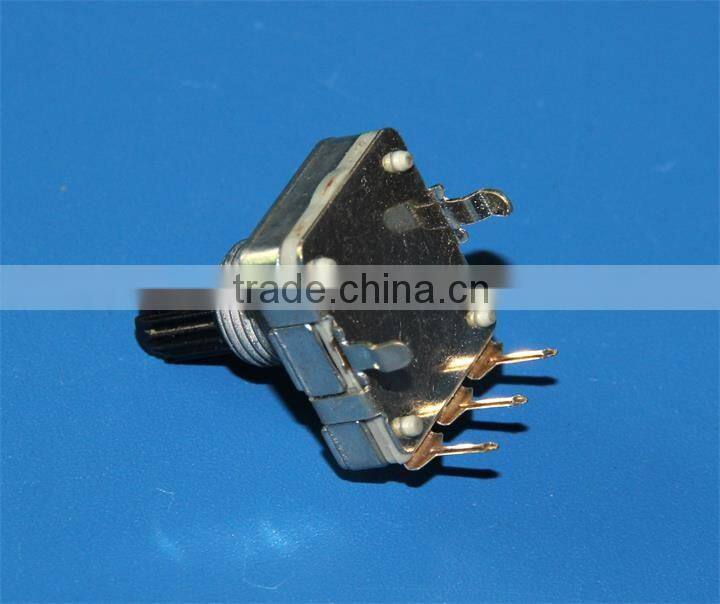

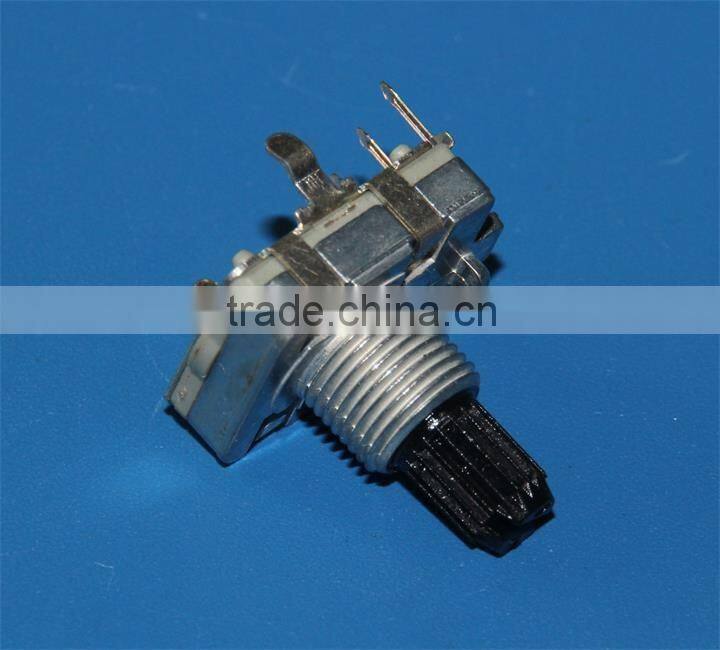

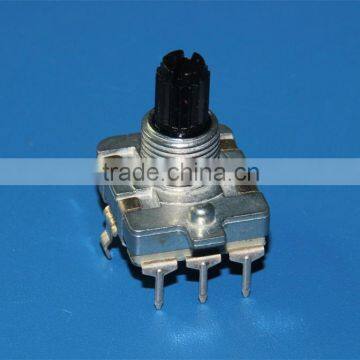

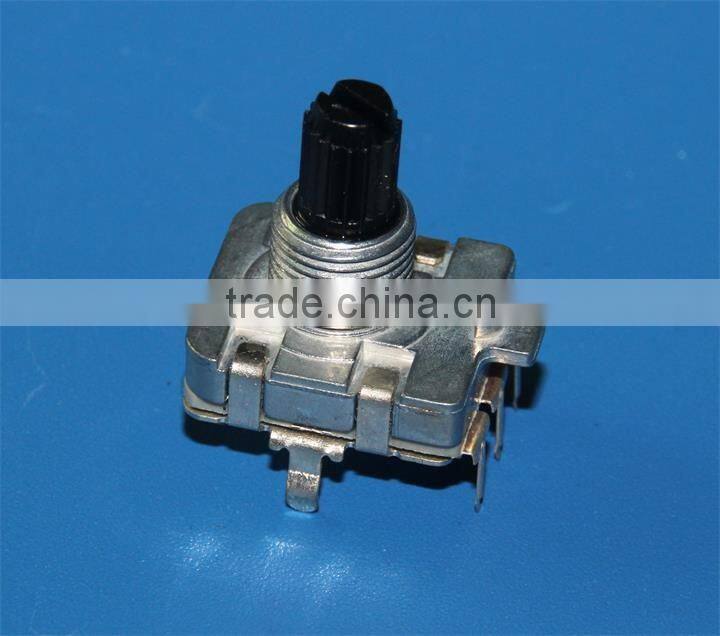

HW-16E 16mm Rotary Encoder and Rotary Encoder With Flat Shaft Electric 12&24 Detents Rotary Encoder
- shenzhen
 - T/T L/C D/P D/A Credit Card PayPal

You May Like
-


F16E Series Rotary Shaft Encoder Incremental Type High Accuracy Encoder in All Dimensions
 -


F12E Series Rotary Shaft Encoder Incremental Type High Accuracy Encoder in All Dimensions
 -


F11E Series Rotary Shaft Encoder Incremental Type High Accuracy Encoder in All Dimensions
 -


F082E Series Rotary Shaft Encoder Incremental Type High Accuracy Encoder in All Dimensions
 -


F081E Series Rotary Shaft Encoder Incremental Type High Accuracy Encoder in All Dimensions
 -


F11ET Series Rotary Shaft Encoder Incremental Type High Accuracy Encoder in All Dimensions

Product Details
| Place of Origin | China | Brand Name | Hongwang | |
| Model Number | HW-16E |
Product Description

1.High resolution of 12 pulse and 24 pulse in 16mm size.
2.Compact and highly accurate contact type encoder.
3.Incremental type.
| Electrical characteristics | |
| Rated Power | DC 5V, 5mA (0.5mA Min) |
| Fluttering | t1,t3<3ms |
| Insulation Resistance | More than 10MΩ at DC50V 1mA |
| Withstand voltage | 1 minute at AC 50V 1mA |
| Rotary Noise (Bounce) | t2<2ms |
| Phase Difference | >0.08T |
| Mechanical characteristics | |
| Rotational Torque of Detent | 30gf.cm~130gf.cm |
| Total Rotational Angle | 360°Continuous |
| Number and Position of Detent | 12 Detents (Angle: 30°±3°); 24 Detents (Angle: 15°±3°) |
| Push-Pull Strength | 8.0Kgf Min for 10Sec. |
| Bushing & nut tight strength | 10.0Kgf Min |
| Durability | |
| Rotational Life | 30,000 Cycles Min |
Specification
1. MECHANICAL CHARACTERISTICS
1-1. Total Rotation Angle: 360°
1-2. Operating Torque Force: 30-200gf.cm (Without starting torque)
1-3. Push-Pull Strength: ≥ 5.1kgf.cm
2. ELECTRICAL CHARACTERISTICS
2-1. Power Rating: DV 5V 0.5mA
2-2. Insulation Resistance: ≤ 10MΩ at DC 50V 1 Minute
2-3. Withstand Voltage: 1minute at AC 50V
3. PUSH-ON SWITCH SPECIFICATION:
3-1. Switch travel: 0.5mm
3-2. Switch Operating Force: 360gf.cm
3-3. Switch Power Rating: DV 5V 10mA
3-4. First Contact Resistance: First period 100mΩ, 200 mΩ after the end of useful life is reached.
3-5. Switch Life: 20,000 cycle Min
4 ENDURANCE:
Rotational Life: ≥ 30,000 cycles
FAQ
Q: Can you provide us samples, is it free or need to pay?
A: If you do not need to print your logo or other artwork on the products, we will not charge any cost, just tell us your freight collect account like FedEx,DHL,TNT, if you do not have we need to charge express fee properly.
Q: How to deliver?
A: By sea or by air or courier like UPS, DHL, FedEx.
Q: What’s your payment term?
A: T/T or Western Union
30% deposit, the 70% balance before shipment.
Q: Where is your factory located, is it convenient to visit?
A: Our factory located in Huizhou, Guangdong. It 's just 10 min drive away from our Shenzhen office.

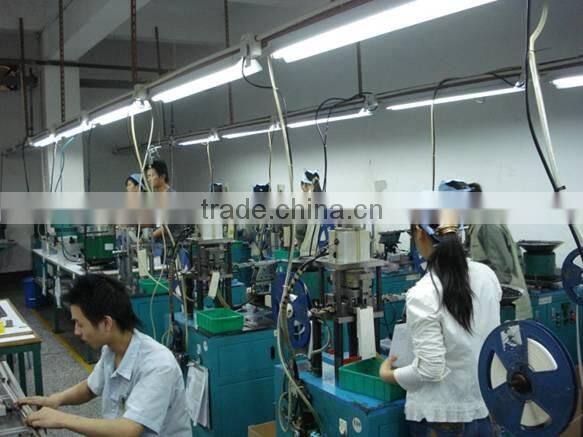

![]()  | The 1st manufacturing section  Switch and so on DVD player/recorders in car, game consoles and flat panel TV, electronic toy controllers ,Remote controllers for audio system and TVS and so on.  |
 ![]()  | |
![]()  | The 2rd manufacturing section: rotary encoder and so on and so on Navigation systems in car and so on  various audio equipment and so on  |
 ![]()  |

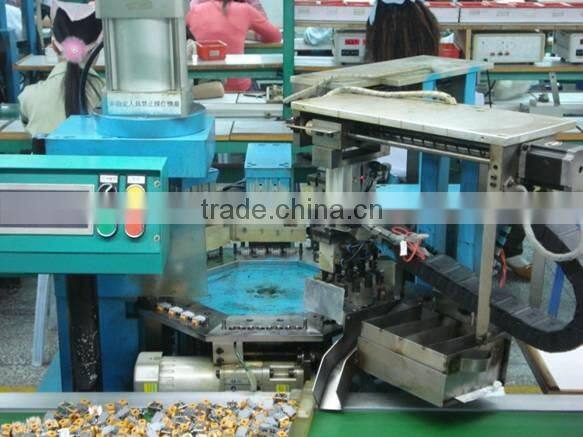

Automatic Assembling Machines
Stable and consistent quality
High efficiency
Low defective rate
| Quality Certificates & Environment Guideline HOWANG holdings has passed TS16949,ISO9001,ISO14001,UL,CQC  | |
![]()  | ![]()  |
![]()  | ![]()  |
 ![]()  |    |
shippment & payment:
we have our own manufacture factory and the experrienced manufacture team in Huizhou.
we will give you the lower price and the first-class quality.
This quotation doesn't include the shipping charge.
1. All the price are Ex-factory price without retail package.
2. Payment: T/T , Bank Transfer, Western Union and Paypal.
3. Delivery time: 4-7 working days after receipt of payment.
4. Valid period of the offer: 30 days
Delivery time: 12 days
Payment terms: 30% deposit before production, 70% balance before shipment.
